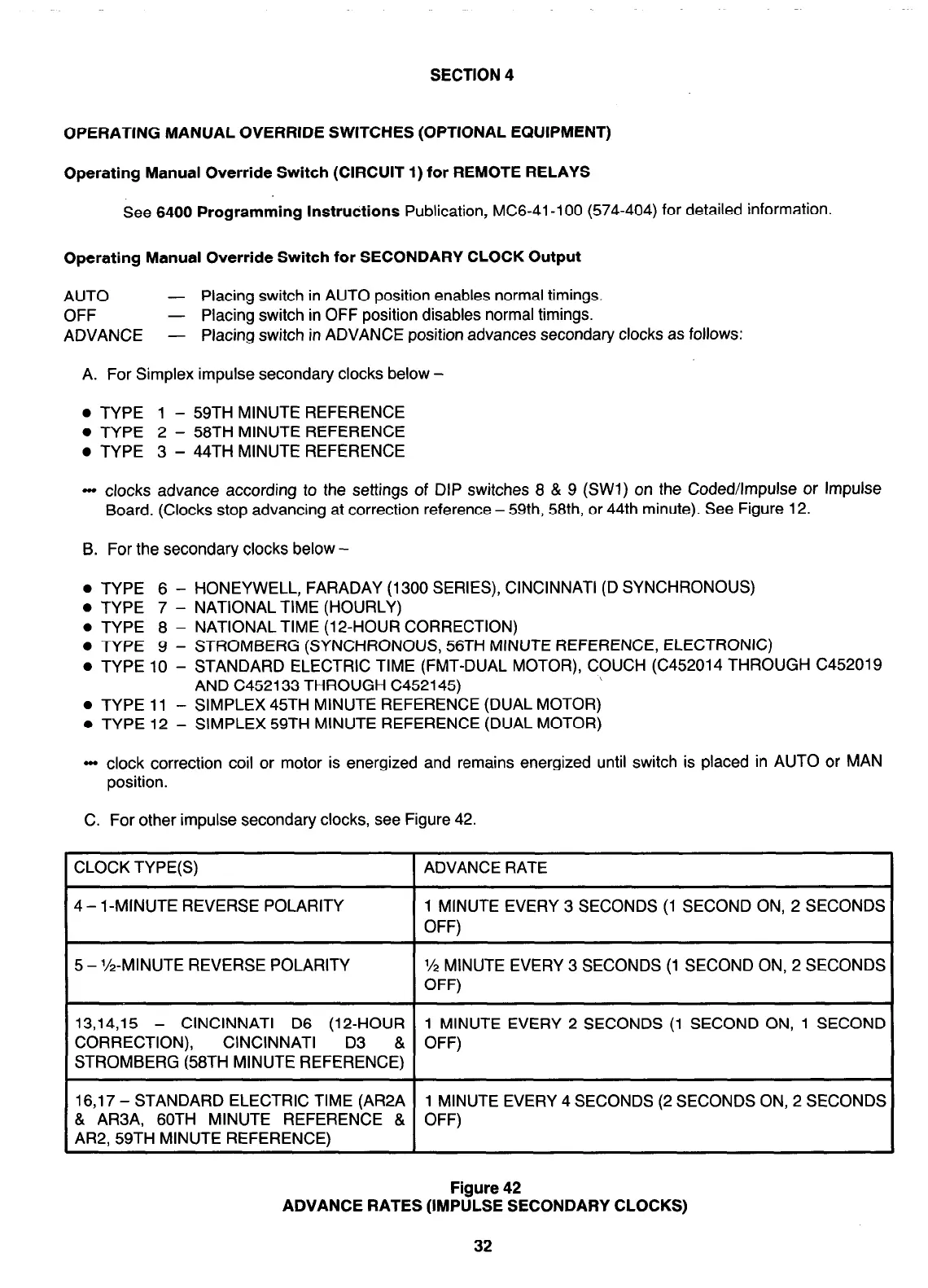

SECTION 4
OPERATING MANUAL OVERRIDE SWITCHES (OPTIONAL EQUIPMENT)
Operating Manual Override Switch (CIRCUIT 1) for REMOTE RELAYS
See 6400 Programming Instructions
Publication, MC6-41-100 (574-404) for detailed information.
Operating Manual Override Switch for SECONDARY CLOCK Output
AUTO
- Placing switch in AUTO position enables normal timings.
OFF
- Placing switch in OFF position disables normal timings.
ADVANCE -
Placing switch in ADVANCE position advances secondary clocks as follows:
A. For Simplex impulse secondary clocks below -
. TYPE 1 - 59TH MINUTE REFERENCE
l
TYPE 2 - 58TH MINUTE REFERENCE
. TYPE 3 -
44TH MINUTE REFERENCE
- clocks advance according to the settings of DIP switches 8 & 9 (SWl) on the Coded/Impulse or Impulse
Board. (Clocks stop advancing at correction reference - 59th, 58th, or 44th minute). See Figure 12.
B. For the secondary clocks below -
l
TYPE 6 - HONEYWELL, FARADAY (1300 SERIES), CINCINNATI (D SYNCHRONOUS)
. TYPE 7 - NATIONAL TIME (HOURLY)
l
TYPE 8 - NATIONAL TIME (12-HOUR CORRECTION)
l
TYPE 9 - STROMBERG (SYNCHRONOUS, 56TH MINUTE REFERENCE, ELECTRONIC)
. TYPE 10 - STANDARD ELECTRIC TIME (FMT-DUAL MOTOR), COUCH (C452014 THROUGH C452019
AND C452133 THROUGH C452145)
. TYPE 11 - SIMPLEX 45TH MINUTE REFERENCE (DUAL MOTOR)
l
TYPE 12 - SIMPLEX 59TH MINUTE REFERENCE (DUAL MOTOR)
- clock correction coil or motor is energized and remains energized until switch is placed in AUTO or MAN
position.
C. For other impulse secondary clocks, see Figure 42.
CLOCK TYPE(S) ADVANCE RATE
4 - 1 -MINUTE REVERSE POLARITY 1 MINUTE EVERY 3 SECONDS (1 SECOND ON, 2 SECONDS
OFF)
5 - ‘/&MINUTE REVERSE POLARITY M MINUTE EVERY 3 SECONDS (1 SECOND ON, 2 SECONDS
OFF)
13,14,15 - CINCINNATI D6 (12-HOUR 1 MINUTE EVERY 2 SECONDS (1 SECOND ON, 1 SECOND
CORRECTION), CINCINNATI D3 & OFF)
STROMBERG (58TH MINUTE REFERENCE)
16,17 - STANDARD ELECTRIC TIME (AR2A
1 MINUTE EVERY 4 SECONDS (2 SECONDS ON, 2 SECONDS
& AR3A, 60TH MINUTE REFERENCE & OFF)
AR2,59TH MINUTE REFERENCE)
Figure 42
ADVANCE RATES (IMPULSE SECONDARY CLOCKS)
32
