Simplex 6351 User Manual
4
of 1
of 1 rating
46 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
FROM
EXTERNAL
POWER/INTERFACE
BOARD
ASSY
NO.
562-765

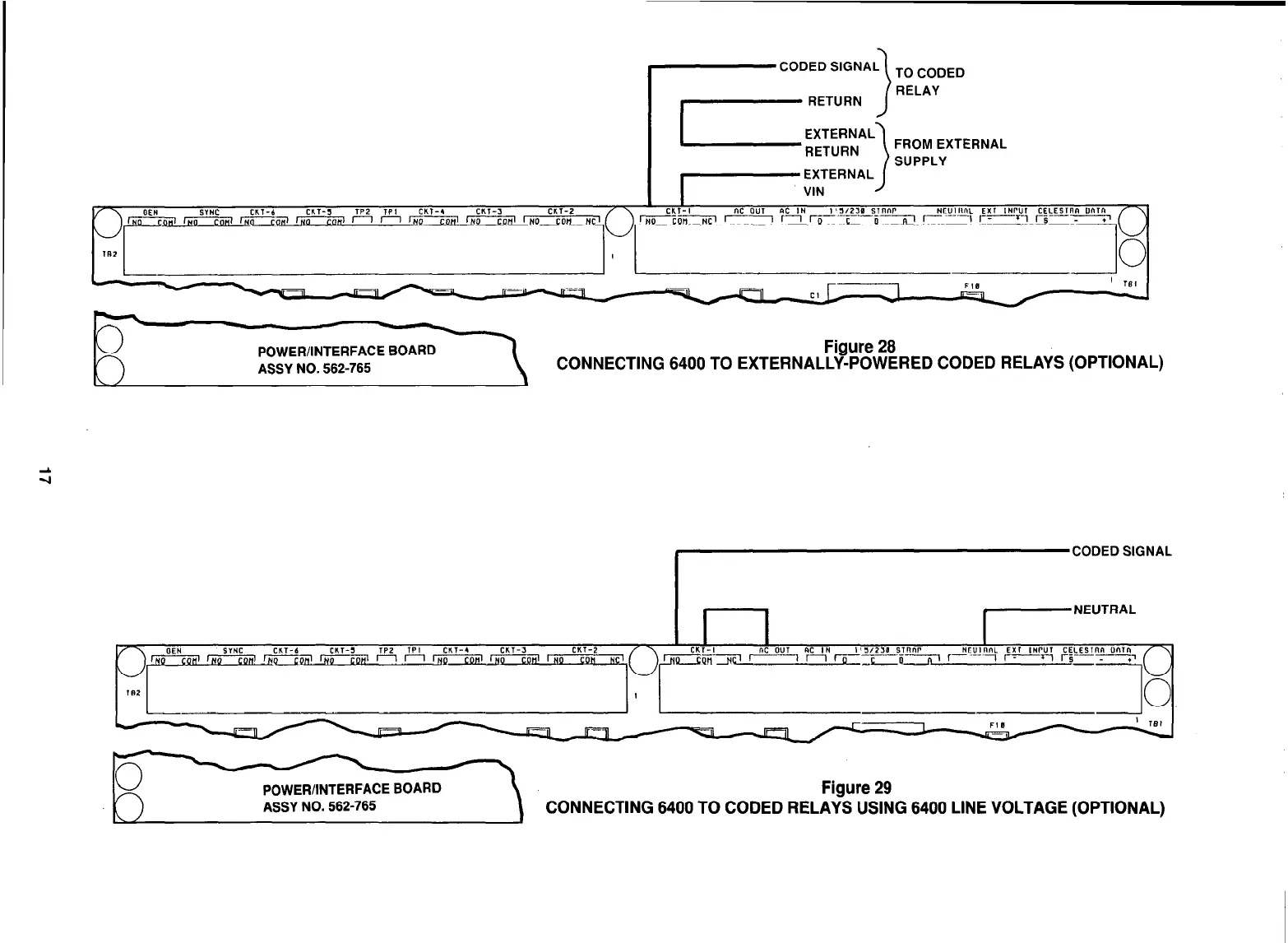

Figure
28
CONNECTING
6400
TO
EXTERNALLY-POWERED
CODED
RELAYS
(OPTIONAL)
CODED
SIGNAL
NEUTRAL
POWER/INTERFACE
BOARD
ASSY
NO.
562-765
Figure
29
CONNECTING
6400
TO
CODED
RELAYS
USING
6400
LINE
VOLTAGE
(OPTIONAL)
firealarmresources.com
18
20
Table of Contents
Table of Contents
3
Pre-Power Adjustments
6
General Notes
6
Setting DIP Switches on CPU Board
7
Cpu Board
7
Bcd Output Format Settings
7
Generator Settings
8
Keypad Lockout & Timekeeping Settings
8
Synchronous Settings
8
Board (Optional)
9
6400 Coded/Impulse Board
9
6400 Coded Board
9
Remote Coded Relay Settings (6400 Only)
10
Secondary Clock Settings
10
Rapid Rate Advance Settings
11
Impulse Accumulator Settings
11
Setting DIP Switches on WWV Interface Board
12
Wwv Interface Board
12
Wwv Communication Settings
12
Wwv Baud Rate Settings
12
Section 2 - Installation Wiring
13
General Notes
13
Connections to Power/Interface Board
13
Power/Interface Board
13
Ac Power Wiring 115Vac
14
Ac Power Wiring 230Vac
14
Typical Wiring for Six Circuits of Bells/Horns Using External Power (6400 Only)
15
Typical Wiring for Six Circuits of Bells/Horns Using 6400 Line Voltage
15
Wiring for External Input
16
Connecting Tcc to Celestra Secondary Clocks
16
Secondary Clocks
17
Connecting Tcc to Synchronous Secondary Clocks Using Tcc Line Voltage
17
Connecting Tcc to Externally-Powered Transmitter
18
Generator
18
Connecting Tcc to Transmitter/Generator Using Tcc Line Voltage
18
Connecting 6400 to Externally-Powered Coded Relays (Optional)
19
Connecting 6400 to Coded Relays Using 6400 Line Voltage (Optional)
19
Connections to Impulse Interface Board (Optional)
20
Impulse Interface Board
20
Impulse Power Supply Wiring 115Vac (Optional)
21
Impulse Power Supply Wiring 230Vac (Optional)
22
13, 14, & 15 (Optional)
23
Connecting Tcc to 3-Wire Impulse Secondary Clocks (B Disconnect)
24
CONNECTING TCC to 3-WIRE SYNCHRONOUS SECONDARY CLOCKS - 6, 7, A, 8 9 (OPTIONAL)
25
Types 1 , 2, 3, 13, 14, & 15 (Optional)
26
Connecting Tcc to 2 or 3-Wire Dual Motor Secondary Clocks -Type 10 (Optional)
26
Types 11 & 12 (Optional)
27
Type 16 (Optional)
28
Secondary
28
Clocks - Type 17 (Optional)
29
Connections to 6800 Coordinated Universal Time Receiver (Optional)
30
Connection to Extended Battery (Optional)
31
Final Checkout
31
Operating Manual Override Switch(Es) for ON/OFF and PULSE Type Events (6400 Only)
32
Operating Manual Override Switch(Es) for DELAY Events (6400 Only)
32
Operating Manual Override Switch(Es) for SYNCHRONOUS Output
32
Signals
32
Operating Manual Override Switch(Es) for GENERATOR Output
33
Operating Manual Override Switch(Es) for SERIAL BCD Output
33
Section 4 - Operating Manual Override Switches (Optional Equipment)
34
Operating Manual Override Switch (CIRCUIT ONE) for REMOTE RELAYS
34
Operating Manual Override Switch for SECONDARY CLOCK Output
34
Advance Rates (Impulse Secondary Clocks)
34
Appendix A - General Mounting Instructions
36
Mounting Tcc Door, Retainer Panel, & Mounting Plate to Back Box
36
Connecting Cpu to Power/Interface
37
Board
37
General Notes
38
Mounting Instructions - Slides & Cable Carrier
38
Installing Rack-Mount Slides (6400 Only)
39
Installing Rack-Mount Cable Carrier (6400 Only)
39
Appendix C - Wwv Interface Board - Installation Instructions
40
INSTALLING Wwv
40
Interface Board
40
Appendixd - 6351 Keypad Operation and Basic Keypad Entries
41
Introduction
41
Keypad Operation
41
General Notes
41
Lcd Display
41
Keypad Normally Active Vs. Keypad Normally Inactive
42
Keypad Modes
42
Keypad
42
Basic Entries
43
To Enter Hour Format (12 or 24) for LCD
43
To Set the Time and Day of the Week
43
To Set the Date
43
Lcd after Depressing Time Key
43
Lcd after Depressing
43
Date Key
43
To Program the Automatic Daylight Saving Time (DST) Changes
