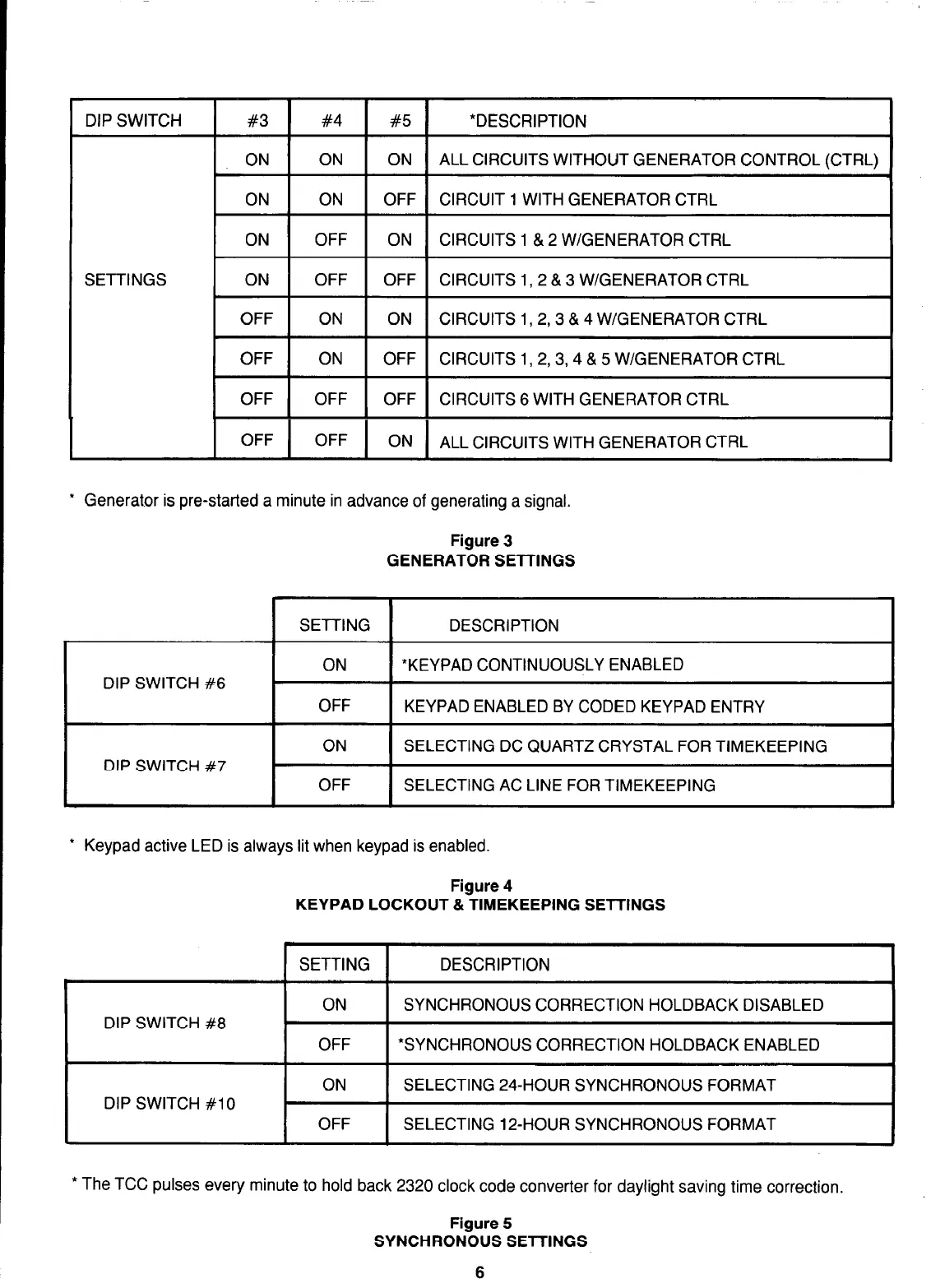

Simplex 6351 - Generator Settings; Keypad Lockout & Timekeeping Settings; Synchronous Settings

DIP SWITCH I #3 1 #4 1 #5 1
*DESCRIPTION
I
ON 1 ON 1 ON 1 ALL CIRCUITS WITHOUT GENERATOR CONTROL (CTRL)
1 ON 1 ON 1 OFF 1 CIRCUIT 1 WITH GENERATOR CTRL
I
ON 1 OFF 1 ON 1 CIRCUITS 1 &2 W/GENERATOR CTRL
SETTINGS
I
ON 1 OFF 1 OFF 1 CIRCUITS 1,2 & 3 W/GENERATOR CTRL
I
OFF
I ONI I
ON
CIRCUITS 1,2,3 & 4 W/GENERATOR CTRL
I
OFF
I ONI I
OFF CIRCUITS 1,2,3,4 & 5 W/GENERATOR CTRL
I OFF I OFF I OFF I CIRCUITS6 WITH GENERATOR CTRL
I
OFF 1 OFF 1 ON 1 ALLCIRCUITS WITH GENERATOR CTRL
* Generator is pre-started a minute in advance of generating a signal.
Figure 3
GENERATOR SETTINGS
I
SETTING
I
DESCRIPTION
DIP SWITCH #6
ON *KEYPAD CONTINUOUSLY ENABLED
OFF KEYPAD ENABLED BY CODED KEYPAD ENTRY
DIP SWITCH #7
ON SELECTING DC QUARTZ CRYSTAL FOR TIMEKEEPING
OFF SELECTING AC LINE FOR TIMEKEEPING
l Keypad active LED is always lit when keypad is enabled
Figure 4
KEYPAD LOCKOUT & TIMEKEEPING SETTINGS
DIP SWITCH #8
DIP SWITCH #lO
SETTING DESCRIPTION
ON SYNCHRONOUS CORRECTION HOLDBACK DISABLED
OFF *SYNCHRONOUS CORRECTION HOLDBACK ENABLED
ON SELECTING 24-HOUR SYNCHRONOUS FORMAT
OFF SELECTING 12-HOUR SYNCHRONOUS FORMAT
* The TCC pulses every minute to hold back 2320 clock code converter for daylight saving time correction.
Figure 5
SYNCHRONOUS SETTINGS
6
