+ INPUT
(SEE NOTES)
POWER/INTERFACE BOARD
ASSY NO. 562-765

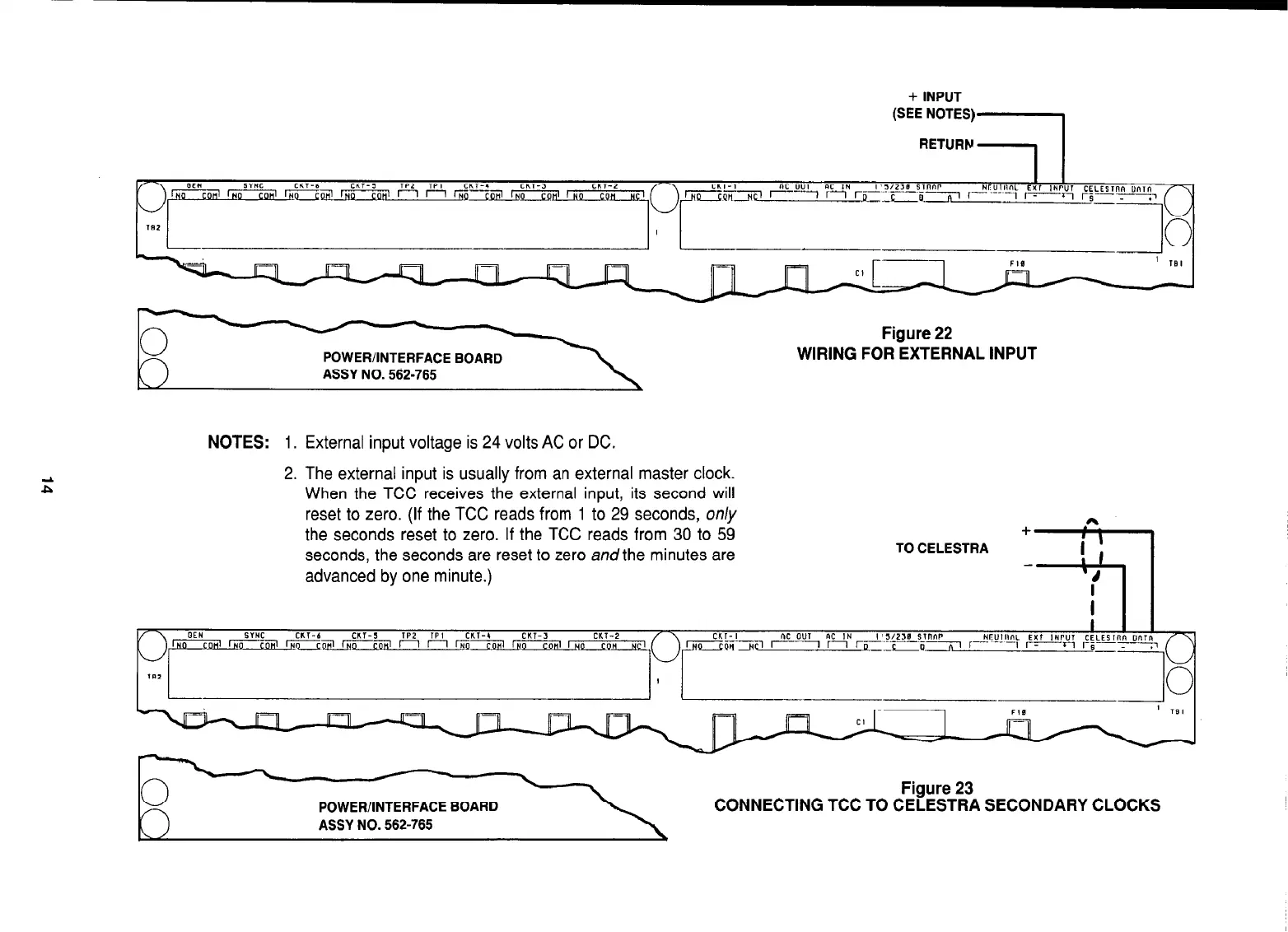

Figure 22
WIRING FOR EXTERNAL INPUT
NOTES: 1. External input voltage is 24 volts AC or DC.
2. The external input is usually from an external master clock.
When the TCC receives the external input, its second will
reset to zero. (If the TCC reads from 1 to 29 seconds, only
the seconds reset to zero. If the TCC reads from 30 to 59
seconds, the seconds are reset to zero and the minutes are
advanced by one minute.)
6
TOCELESTRA
POWER/INTERFACE BOARD
ASSY NO. 562-765
Figure 23
CONNECTING TCC TO CELESTRA SECONDARY CLOCKS
