Cruise Control System Components
11 - 6
Cruise Control System Components

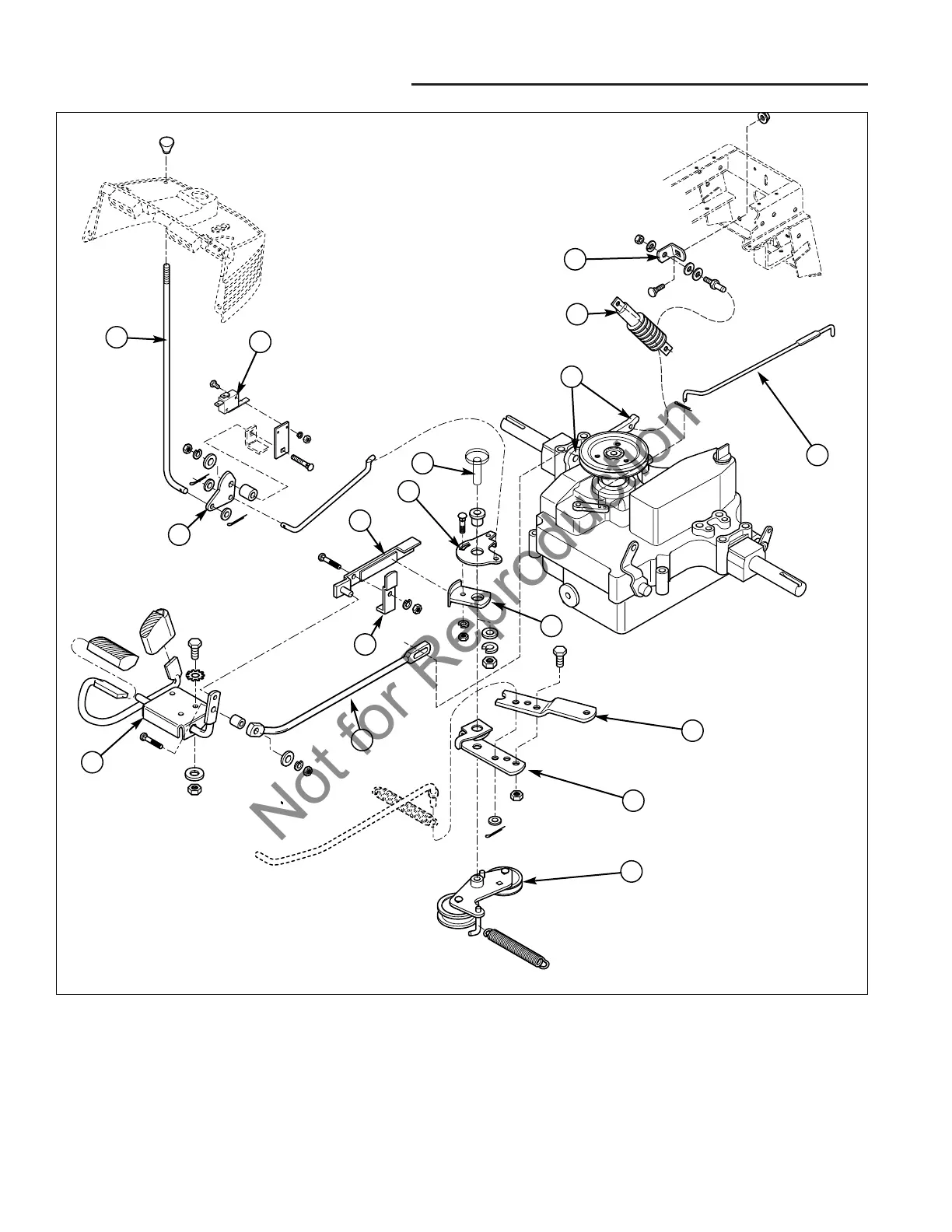

Figure 8. Drive System Components
A. Parking Brake Rod
B. Cruise/P-Brake Light Switch
C. Parking Brake Cam
D. Ground Speed Pedal Assy.
E. Sift Rod
F. Idler Assembly
G. Pivot
H. Brake Lever
I. Plate & Pad Assy
J. Release Lever
K. Shock Absorber
L. Trans. Control Lever
M. Idler Pivot (Frame)
N. Lock Plate Bracket
O. Lock Plate
P. Lock Plate Retainer
Q. Shock Mounting Bracket
A
D
E
F
G
H
I
O
N
J
M
L
K
Q
C
B
P
