Simplicity Broadmotor Series User Manual

7 Electrical System Service
Exploded View Diagrams
7 - 4
Electrical - Lower Harness

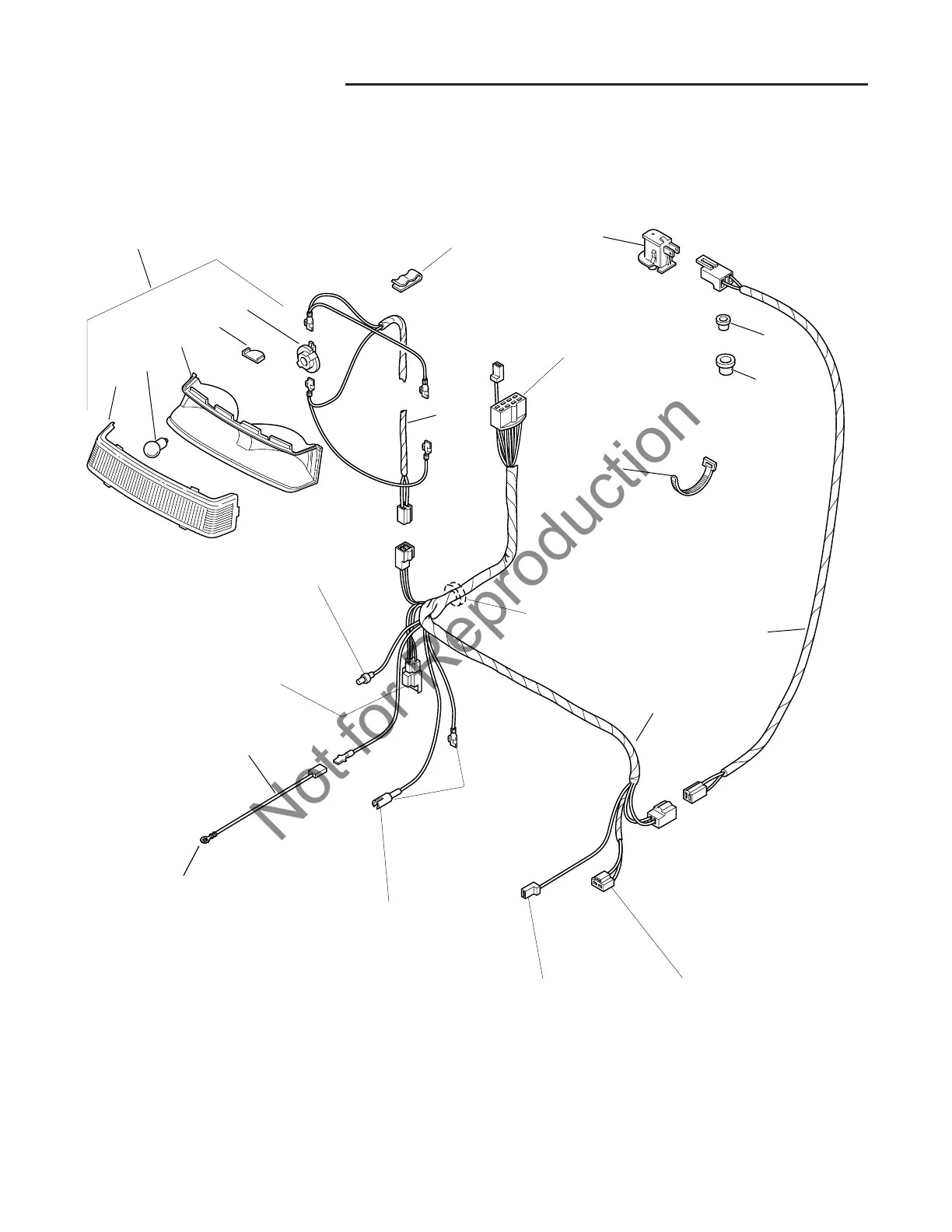

Figure 1. Exploded View Diagram – Lower Wiring Harness
To Engine Ground Bolt.
See Engine
Group
To Upper
Harness
Grommet -
See Engine
Group
Briggs &
Stratton
Models
Only
Briggs &
Stratton
Models
Only
To
Electric
Clutch
To Engine Fuel
Shut-Off Solenoid,
Briggs & Stratton
Models Only
To Oil Pressure
Sending Unit,
Briggs & Stratton
Models Only
To Engine
Harness Plug,
Kohler Models
Only
8
9
10
11
12
13
14
7
6
5
4
3
2
1
