14 Transmission Tear-Down
Assembly
14 - 16
8. Install the center section and motor assembly. This
procedure will require a number of things to be done
in the proper sequence. Be sure to pre-lubricate
parts before or as you assemble them, as it can
make assembly easier and prevent any damage dur-
ing assembly.
• Drop the stationary brake plate in place. Notice that
it is tapered and the tapered end goes into the top
case.
Stationary
Brake Plate
Figure 20. Stationary Brake Plate

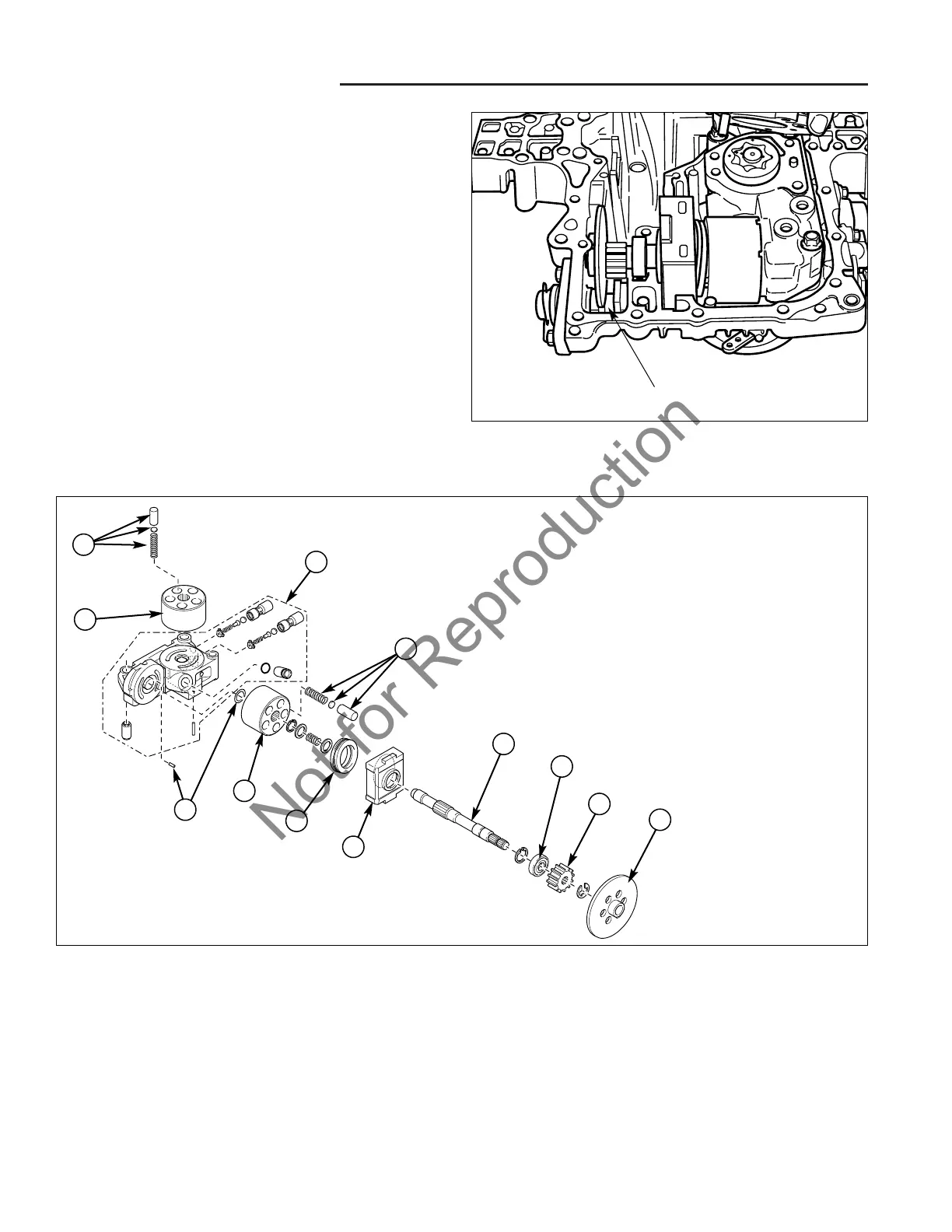

Figure 21. Center Section
H
G
I
J
K
F
E
B
C
D
A
A
A. Piston, Washer, & Spring
B. Motor Block
C. Center Section
D. Release Valve Pin & Washer
E. Pump Block
F. Bearing and Races
G. Swashplate
H. Motor Shaft
I. Bearing
J. Gear
K. Brake Rotor
