14 Transmission Tear-Down
Assembly
14 - 18

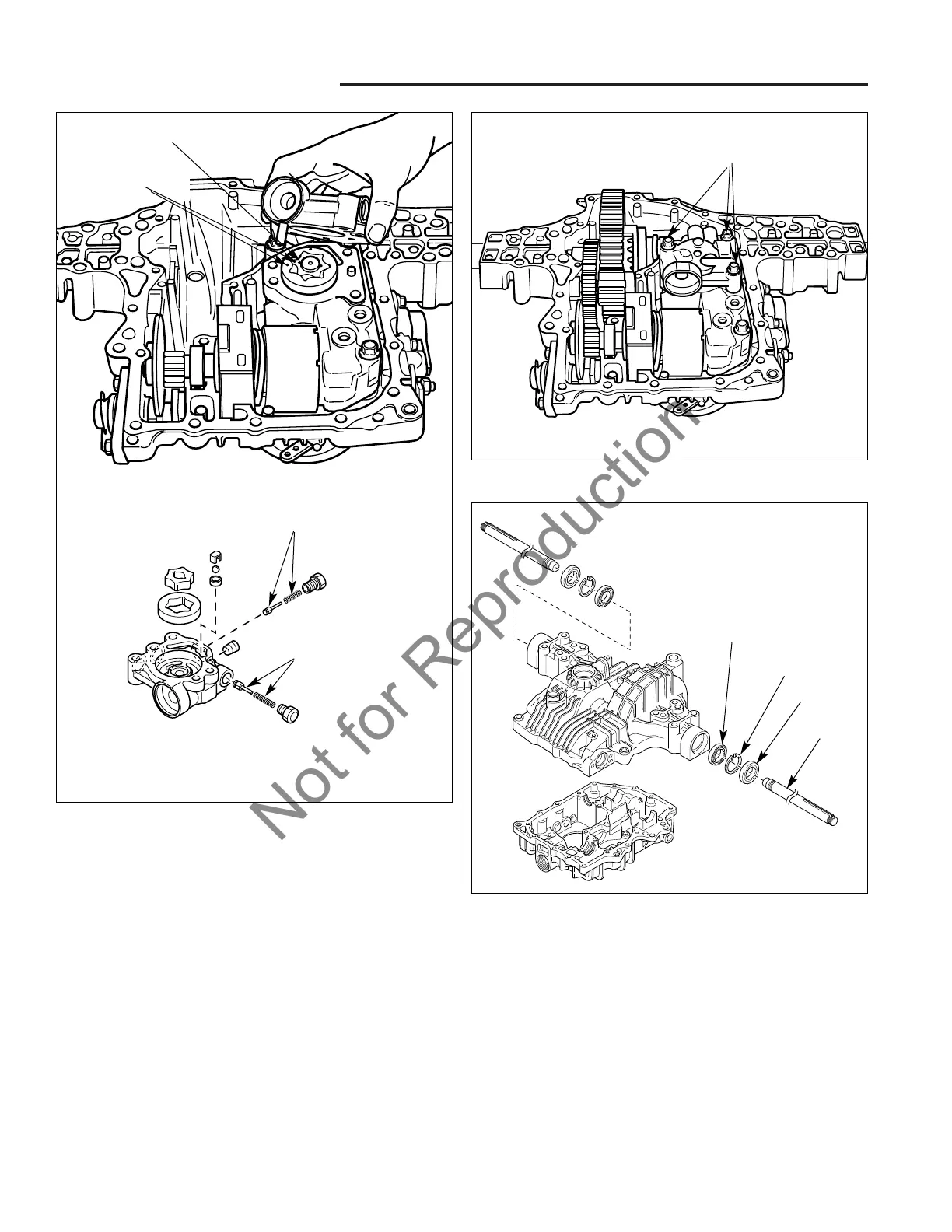

9. See Figure 24. Install charge pump.
• Install drive pin.
• Install the pump rotors with the dots matching up.
• Carefully install the charge pump housing being
sure it does not bind. Turn the input pulley by hand if
you need to line things up.
• See Figure 25. Torque the bolts that retain the
housing to 17-20 ft. lbs. (23-27 NM).
Figure 25. Charge Pump Removal
Figure 24. Charge Pump Installation
Charge Pump Bolts
Drive Pin
Dots
Charge Pump
Valve and Spring
Implement Relief
Valve & Spring
Figure 26. Axle Installation
Seal
Snap Ring
Bearing
Axle
10. If not already done so, install the axle bearings and
snap rings.
11. Install axle bushings in upper case. Note that both
bushings are the same.
12. Install axles.
