Simplicity Broadmotor Series User Manual

7 - 11
7 Electrical System Service
Ignition Switch Service Bulletin
KEY SWITCH
(OFF POSITION)
A
M
L
G
B
S
INTERLOCK
MODUEL
MAGNETO
87 65
12 34
ALTERNATOR

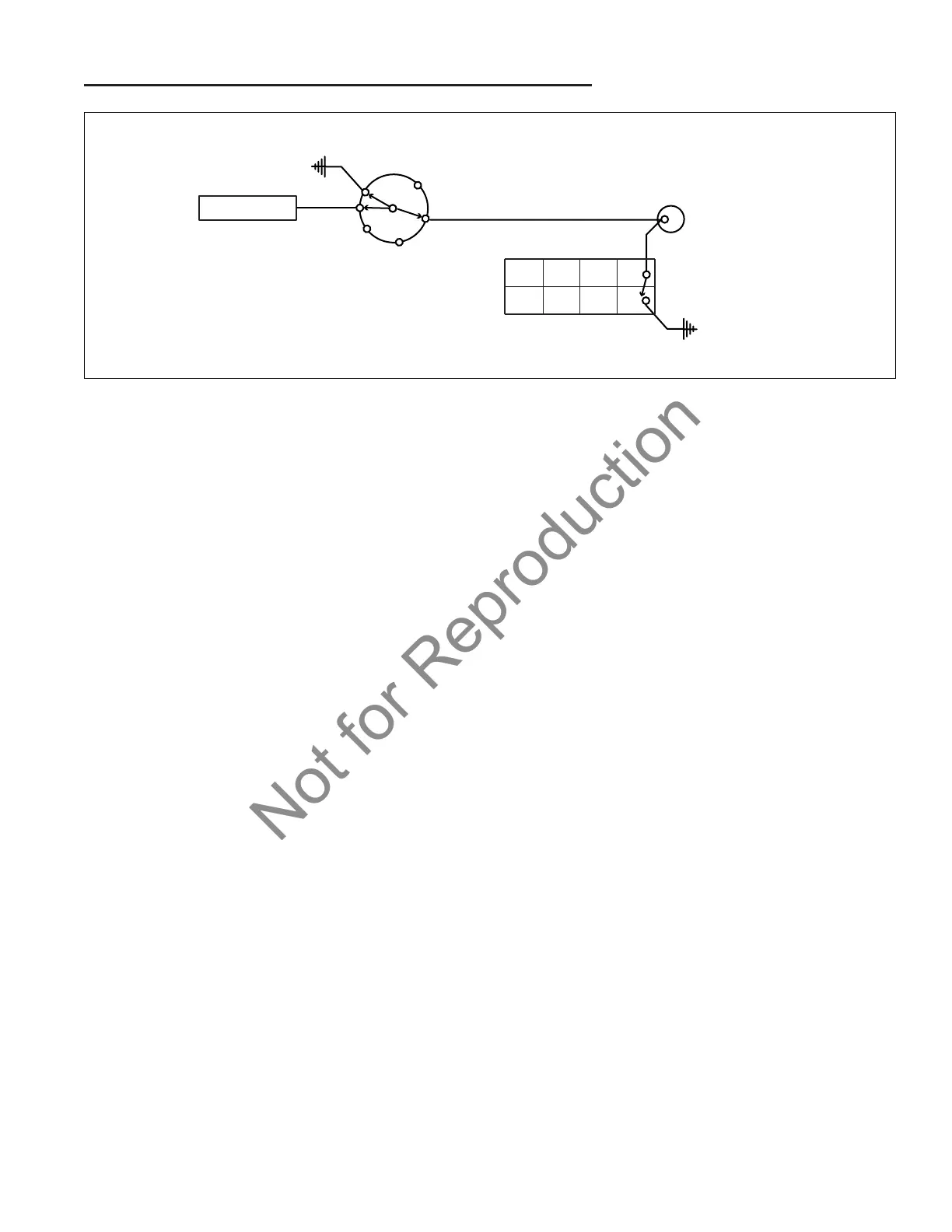

Figure 6. Ignition Shutdown Linear Circuit Diagram
IGNITION SHUTDOWN CIRCUIT
See Figure 8.
Ignition shutdown occurs when the ignition key switch is
turned to the “OFF” position or the safety system kills the
engine.
The key switch grounds the magneto through the “M” to
“G” connection.
The interlock module can also ground the magneto
through a #5 to #4 connection
Not for Reproduction
