7 Electrical System Service
Common Circuit Tests
A
F
J
H
K
I
D
B
S
L
B
C

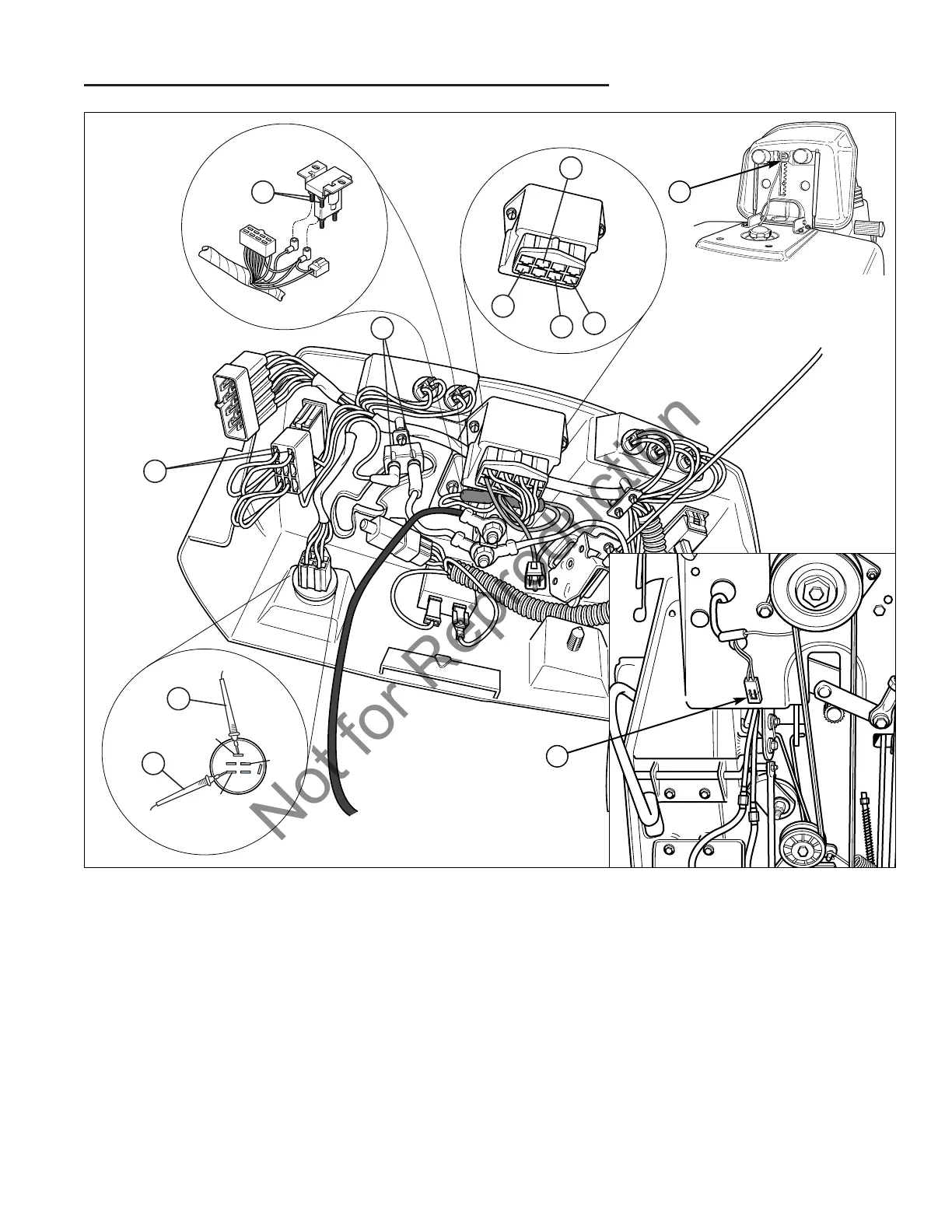

Figure 10. Electrical Component Locations
E
G
MAGNETO KILL CIRCUIT TESTS
13. Set the VOM to Ohms (checking continuity). Turn the
key switch to RUN. Disconnect the wire harness
from the interlock module.
14. Connect the negative probe to ground.
15. Probe the #5 plug (L). The VOM should show no
continuity. If the VOM shows continuity, the coil is
being shorted to ground through a broken wire or the
key switch.
