Simrad AP44 User Manual

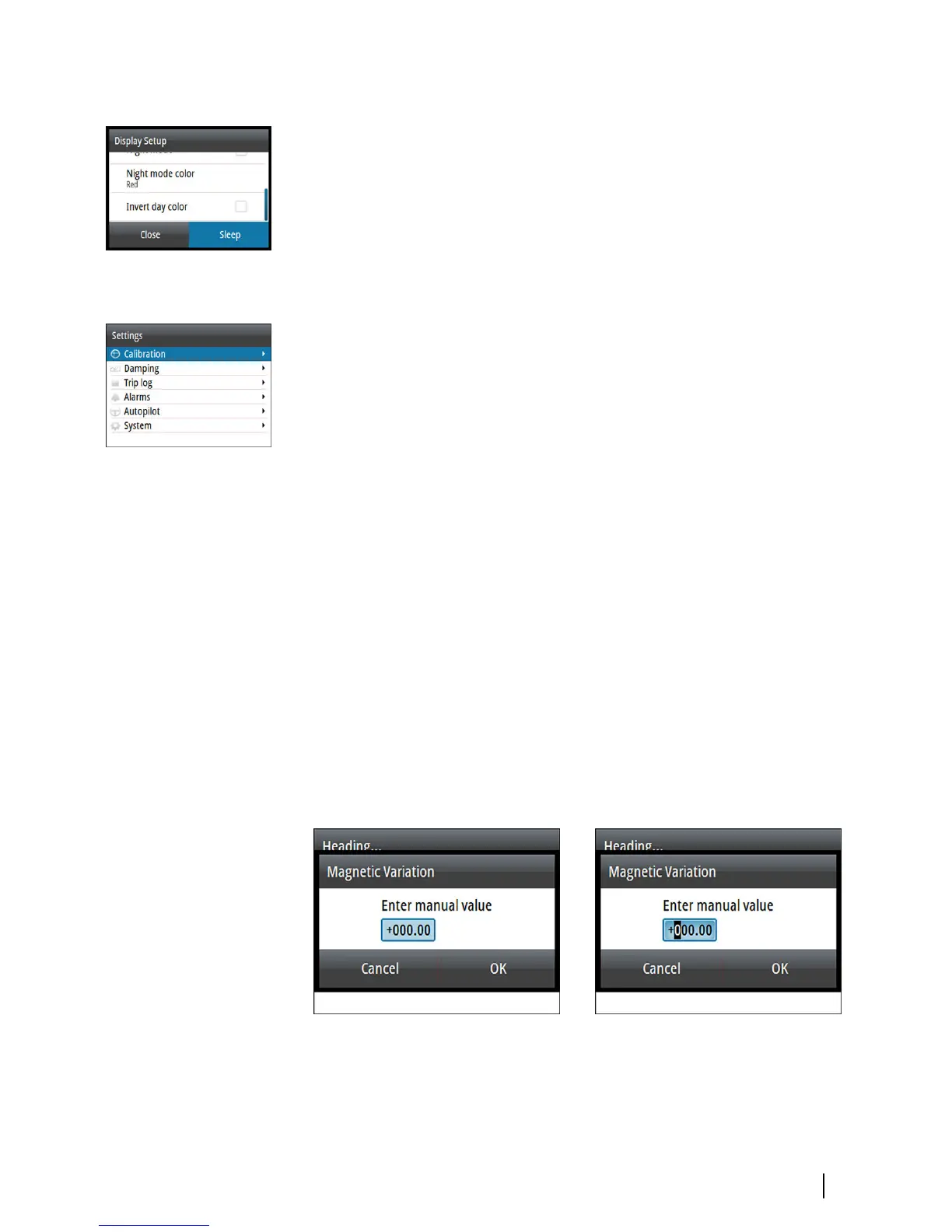

Sleep mode
In Sleep mode, the backlight for screen and keys are turned off to
save power. The system continues to run in the background.
You select Sleep mode from the Display setup dialog, activated by
pressing and holding the MENU key. Switch from Sleep mode to
normal operation by a short press on the MENU key.
Operating the menu system
All settings and configuration in the unit are available from the
Settings menu, activated by pressing the MENU key.
• Turn the Rotary knob to move up and down in the menus and in
the dialogs
• Confirm a selection by pressing the Rotary knob
• Return to previous menu level by pressing the MENU key
Edit a numeric value
1. Turn the Rotary knob to select the entry field
2. Press Rotary knob to turn the field into edit mode
-
The left digit starts flashing
3. Turn the Rotary knob to set the value for the flashing digit
4. Press the Rotary knob to move focus to the next digit
5. Repeat step 3 and 4 until all digits are set
6. Press the Rotary knob to leave edit mode for the selected field
7. Turn the Rotary knob to select the Cancel or Save buttons, then
press the Rotary knob to confirm your selection and to close the
dialog
Selected field Field in edit mode
Ú
Note: You can at any time press the MENU key to leave a
dialog without saving the entries.
Basic operation | AP44 Operator Manual
11

Simrad AP44 Specifications

General

Interface	NMEA 2000
Power Supply	12/24 V DC
Water Resistance	IPX6
Operating Temperature	-15°C to +55°C
Display Size	4.1 inches
Display Type	LCD
Control Type	Rotary dial and buttons
Operating Voltage	10-31.2 V DC
Control Modes	Auto, Nav, Wind
