465 mm (18.3”)
261 mm
(10.3”)
Radome (bottom)
Rubber foot
Mounting base
Washer
Spring washer
M10 Hexagonal bolt
Included
Fix four bolts
Forward
Installation 1-32 CX34/44/54-series

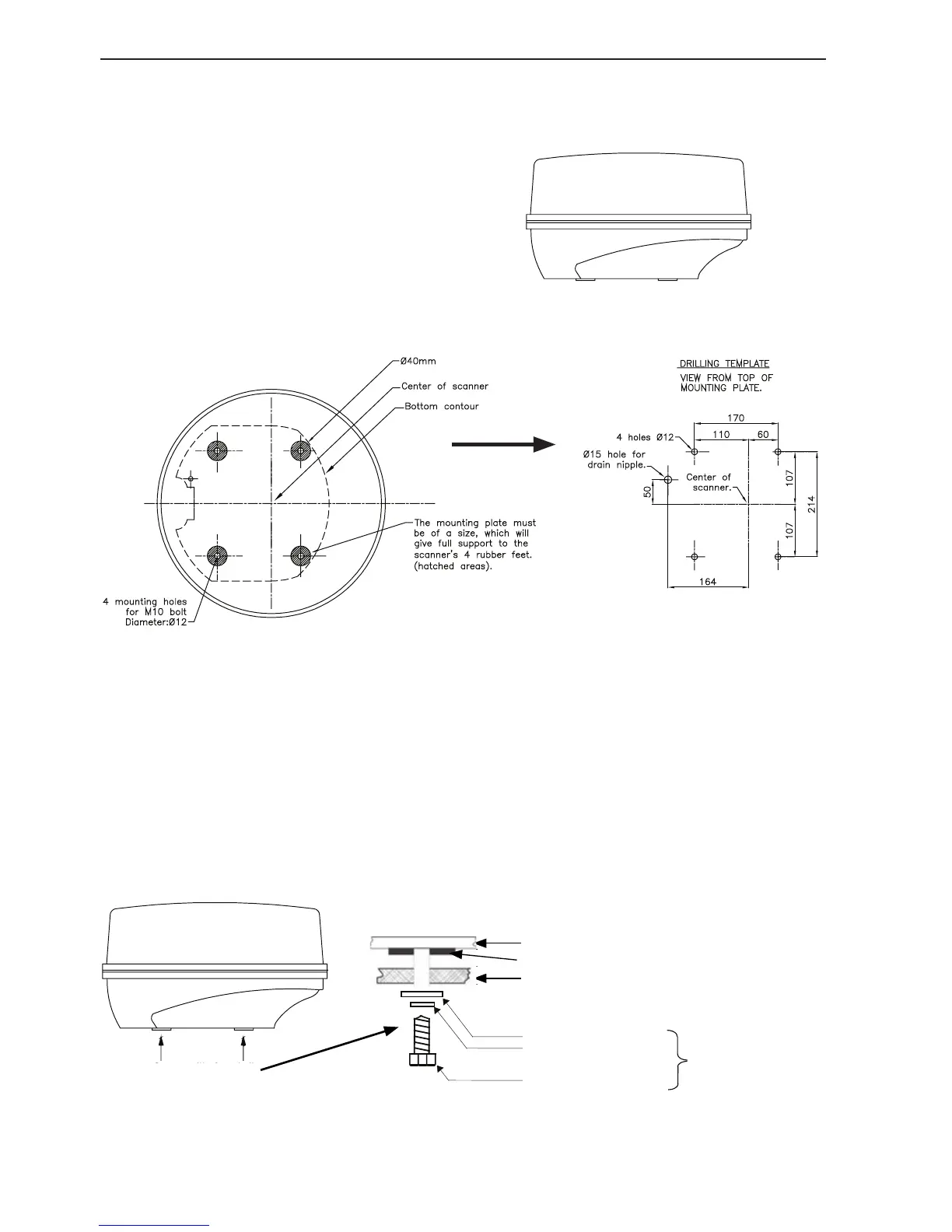

DX45 Radome scanner
• 46.5 cm radome
• 4 kW
• Range up to 28 nm
• Rotation speed 20-50 rpm
• Beamwidth: Horizontal 5.6°
Vertical 30°
The four bolts included with your radar equipment will suffice for mount base
thickness of 9 to 14 mm (0.35 to 0.55 in.). If the mount base is thicker or thin-
ner than this, prepare bolts as listed on page 1-31. Use silicone to secure the
bolts.
This illustration applies to both the DX45 and DX60 scanners:
