615 mm (24.2”)
261 mm
(10.3”)
Forward
CX34/44/54-series Installation 1-33
DX60 Radome scanner
• 61.5 cm radome
• 4 kW
• Range up to 36 nm
• Rotation speed 20-50 rpm
• Beamwidth: Horizontal 3.8°
Vertical 30°

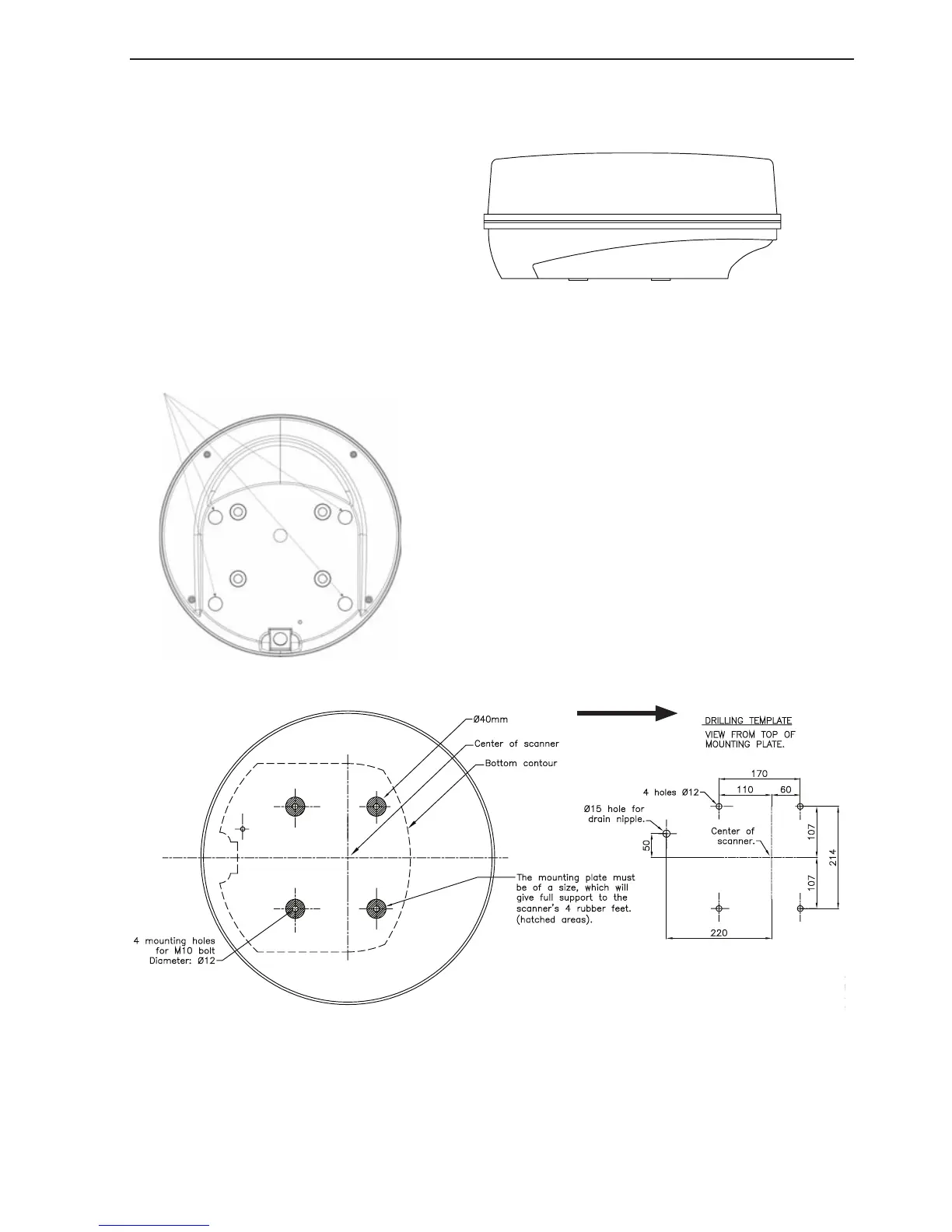

Pads for support of radome scanner DX60:
If the DX60 is to be mounted on a flat surface,
the four pads (included) for support are to be
placed according to this illustration. To fit the
pads, peel off the paper and place them with
the adhesive part onto the radome bottom.
The four bolts included with your radar equipment - refer to illustration on
previous page - will suffice for mount base thickness of 9 to 14 mm (0.35 to
0.55 in.). If the mount base is thicker or thinner than this, prepare bolts as
listed on page 1-31. Use silicone to secure the bolts.
