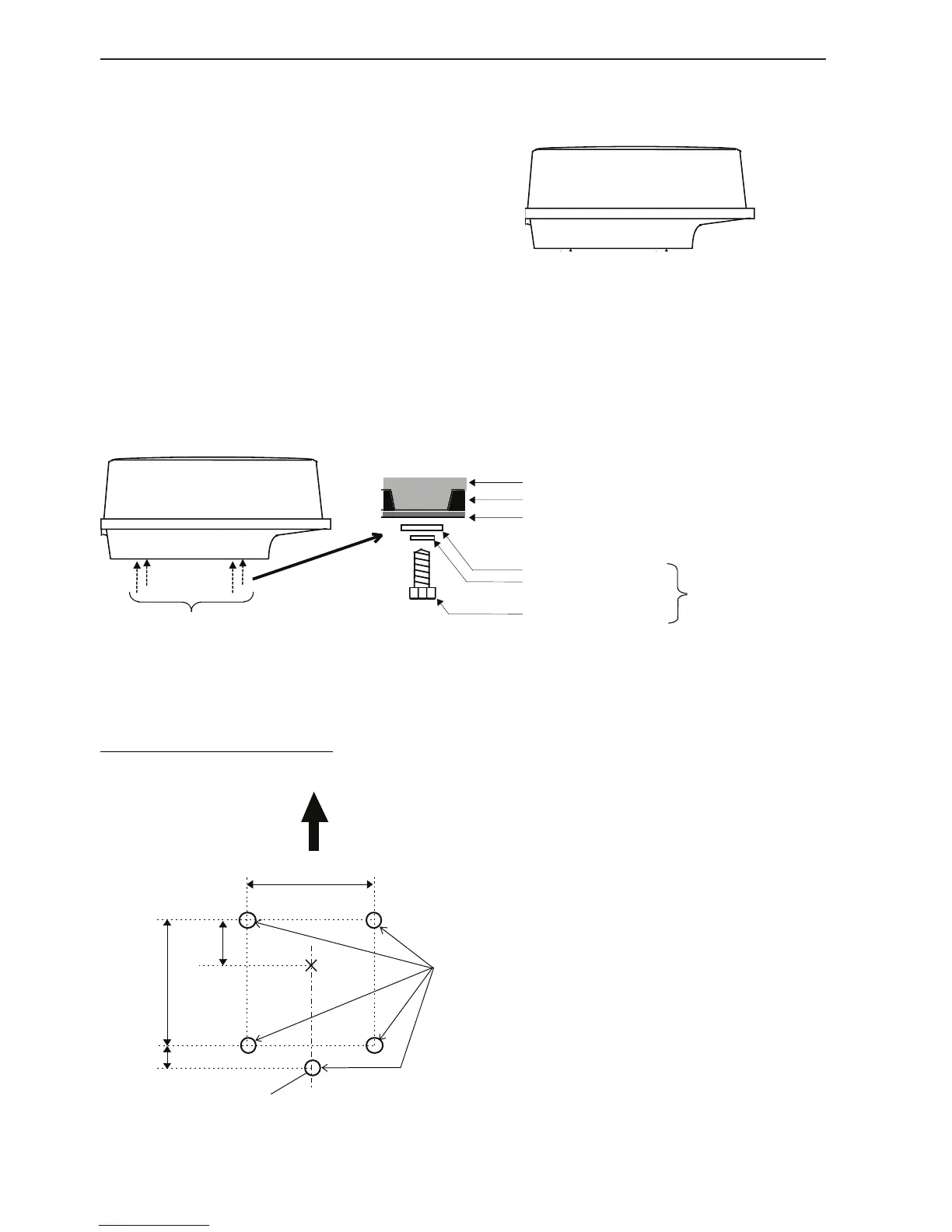

Chassis
Radome (bottom)
Mounting base
Washer
Spring washer
M10 Hexagonal bolt
Included
Fix four bolts
Center
140mm
140
12
φ
×
5
60
Forward
(5.51 in.)
(2.36 in.)
(0.47 in.)
30
(1.18 in.)
(5.51 in.)
For air tube
Measurements= mm
448 mm (17.9”)
220 mm
(8.8”)
Installation 1-34 CX34/44/54-series
RB714A Radome scanner
• 45 cm radome
• 2 kW
• Range up to 24 nm
• Rotation speed 24 rpm
• Beamwidth: Horizontal 5.9°
Vertical 25°
DRILLING TEMPLATE
The bolts included with your
radar equipment will suffice for
mount base thickness of 9 to
14 mm (0.35 to 0.55 in.). If the
mount base is thicker or thinner
than this, prepare bolts as listed
on page 1-31.
Silicone should be applied to
secure the bolts. Do not use lock-
ing putty, as it may damage the
radome.
