Fuel Level
With the use of a Navico Fluid Level device connected to a suitable
tank level sensor, it is possible to measure the amount of fuel
remaining in any equipped tank. The number of tanks must be set
in Vessel Setup dialog, initiated from the Fuel setting options page,

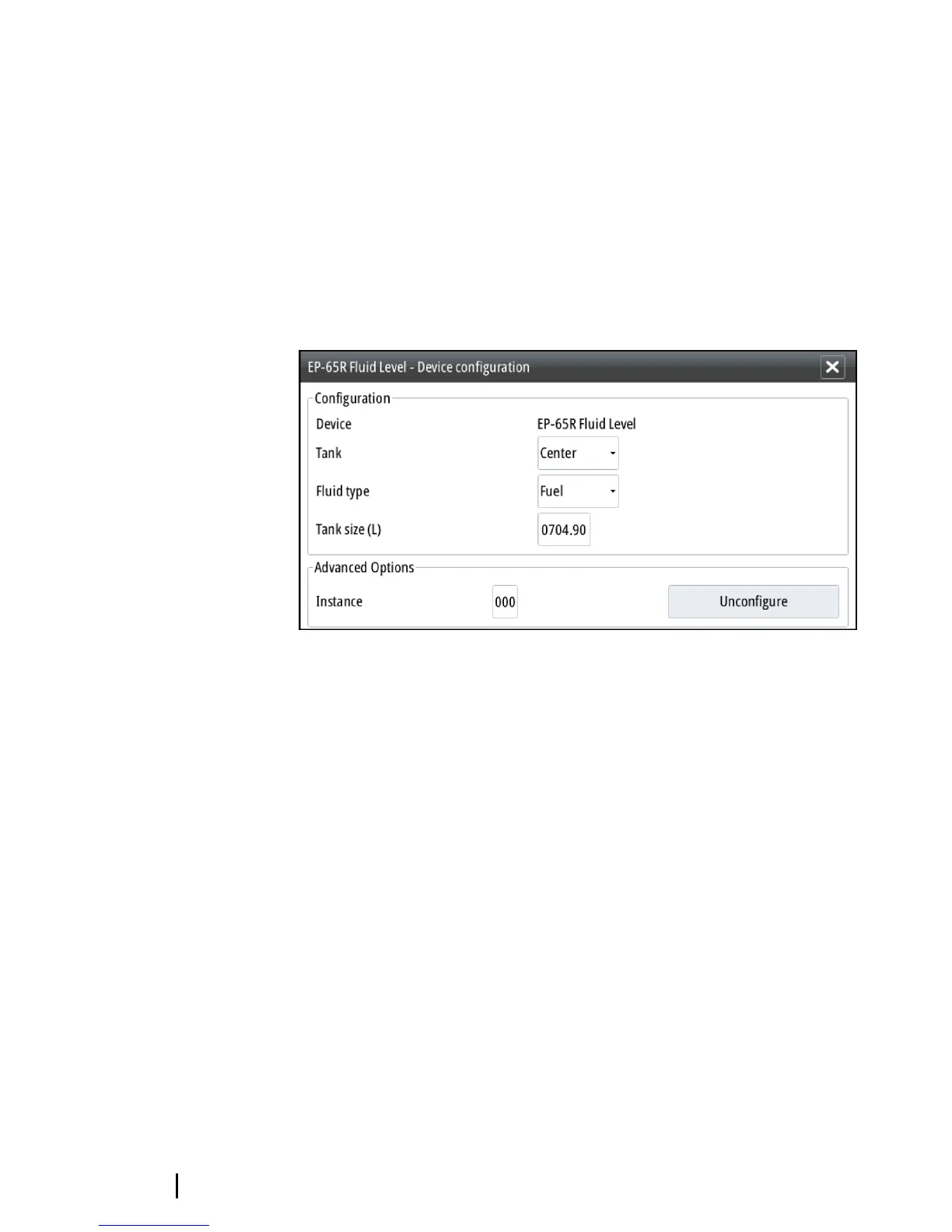

to allow discrete tank assignment of the Fluid Level devices. Select
Device list on the Network page, and view the Device
Configuration dialog for each sensor, and set the Tank location,
Fluid type, and Tank size.
For setting up the Instrument bar or a gauge on the Instrument
page with Fluid Level device data, refer to the Operator Manual.
Ú
Note: A maximum of 5 tanks is supported using Fluid Level
devices.
Ú
Note: Tank data that is output by a compatible engine
gateway can also be displayed, however tank configuration
for such a data source is not possible from the GO7.
CZone setup
In order to communicate with the CZone modules connected to
the network, the GO7 must be assigned a unique CZone Display
Dipswitch setting.
The functionality of the CZone system is determined by the CZone
Config File (.zcf ), which is stored on all CZone modules and the
GO7. The file is created using the CZone Configuration Tool, a
38
Software Setup | GO7 Installation Manual
