Singer 270 - Page 102

Ref.
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34

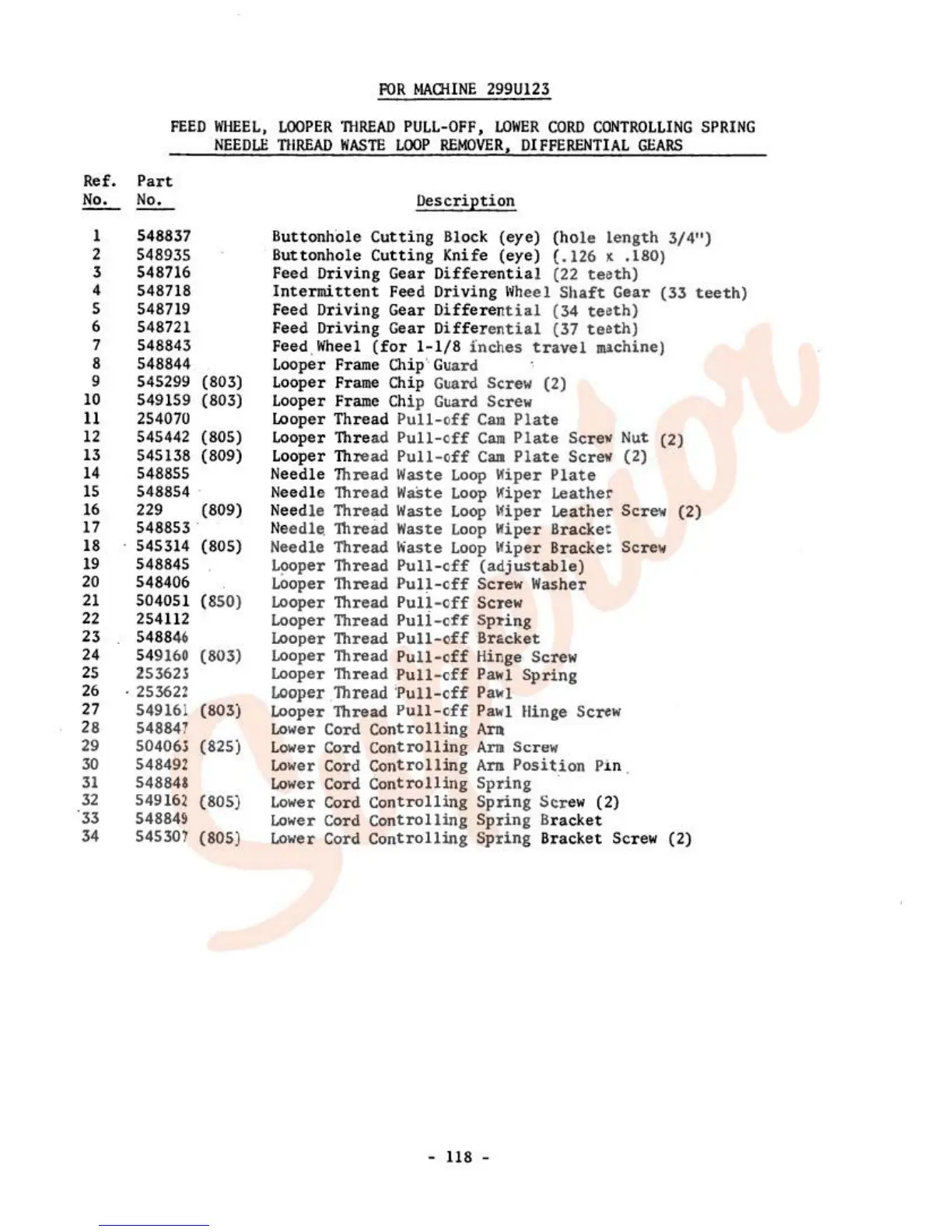

FOR MACHINE 299Ul23
FEED WHEEL, LOOPER lliREAD PULL-OFF, LOWER CORD CONTROLLING SPRING
NEEDLE TIIREAD WASTE LOOP REMOVER, DIFFERENTIAL GEARS
Part
N o.
Description
548837 Buttonhole
Cutting Block (eye)
(hol e length 3/4")
548935 · Buttonhole Cutting K nife (eye)
(.126
)( .180)
548716
Feed Driving Gear
Differential (22 teeth)
548718
Intermittent Feed Driving lv heel Shaft Gear (33 teeth)
5 48719
Feed Driving Gear Differen tial (34 teeth)
548721
Feed Driving Gear Differ ential (37 teeth)
548843
Feed . Wheel (for 1-1/8 fnches trave l machine)
548844 Looper
Frame Chip ·· Guard
545299 (803)
Looper Frame Chip Guard Screw (2)
549159
(803)
Looper Frame Ch ip Guard Screw
254070 Looper Thread Pull-off Cam Plate
545442
(805) Looper Thread Pull-off Cam Plate Sere~ Nut
(2)
545138
(809)
Looper Th read Pull-off Cam Plate Scr~ (2)
548855
Needle Thread Waste Loop Wiper Plate
548854 .
Needle Thread
Wa5te Loop Wiper Leather
229 (809)
Need le Thread Waste Loop lliper Leather Screw
(2)
548853 .
Ne edle. Thread Waste Loop ~iper Bracket
545314
(805)
Needle Thread Waste Loop lliper Bracket Screw
548845
~oper Thread Pull-off (adjustable)
548406
Looper Thread Pull-off Scr ew Washer
504051
(850)
Looper Thread Pull-off Screw
254112
Looper Thread Pull-off Sp~ing
548846
Looper Thread
Pull-off Bracket
54 9160
(803) Looper Thread Pull-off Hinge Screw
25362S Looper Thread Pull-off Pawl Spring
. 253622
Looper Thread Pull-cff Pawl
549161 (803)
Looper Thread Pull-off Pawl Hinge Screw
548847 Lower Cord Controlling Am
50406S (825)
Lower C ord Controlling Am Screw
548492
Lower Cord Controlling Am Position Pin .
548843 Lower Cord Controlling Spring ·
549162
(805) Lower Cord Controlling Spring Scr ew (2)
54884~
Lower Cord Controlling Spring B racket
545307
(805] Lower Cord Controlling Spring Bracket Screw
(2)
-
118 -
