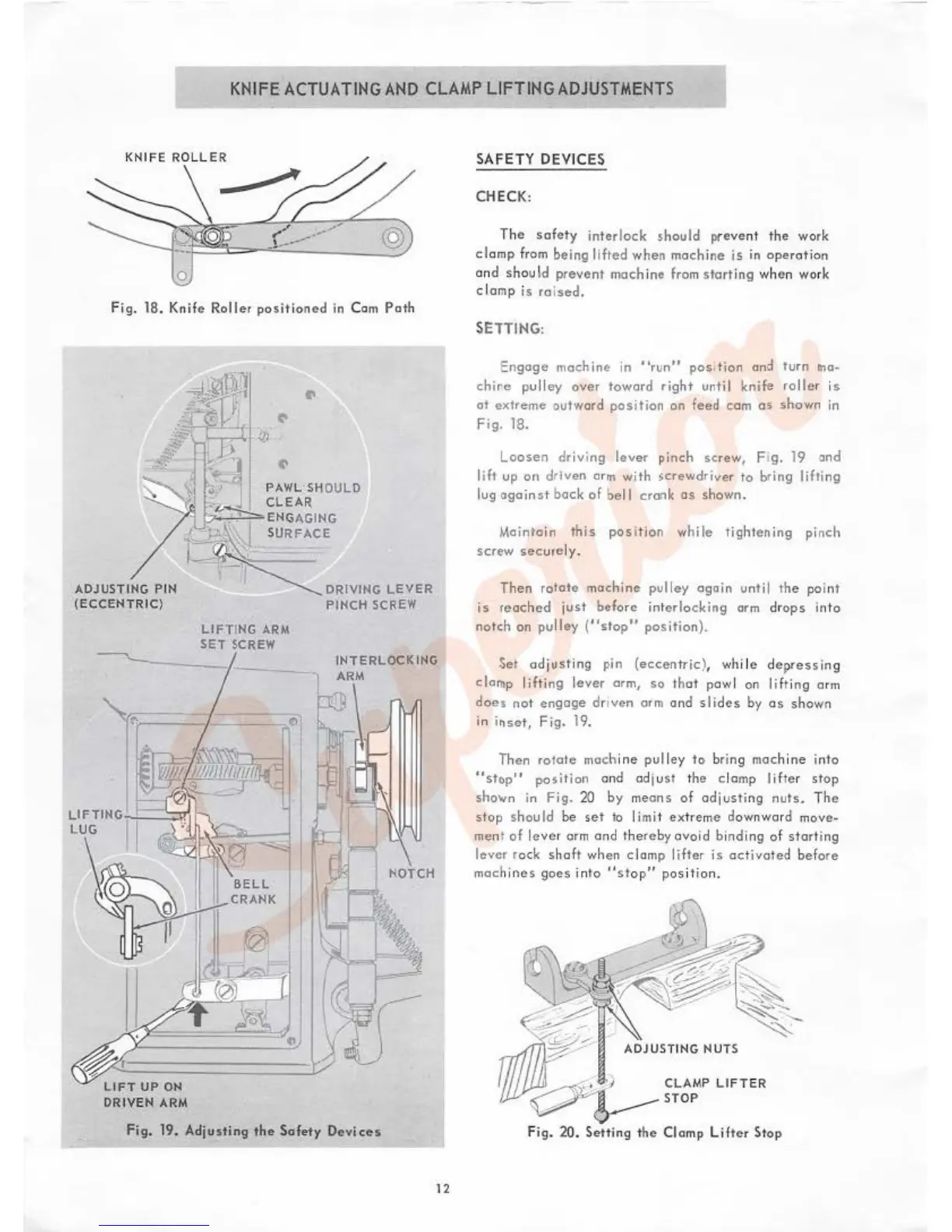

KNIFE ACTUATING AND CLAMP LIFTING ADJUSTMENTS
Fi g. 18 . Kn ife Roller posit i oned in Cam Pa th
ADJUSTING PIN
(ECCENTRIC)
" PAWL SHOULD
·£, .1 CLEAR
-;..:._ ENGAGING
'~~,) SURFACE
I~~~~
-I
LIFTING ARM
SET SCREW
DRIVING LEVER
PINCH SC~EW
-------
INTERLOCKING
o ARM
~ \
~:i::r =========:!::/
L IFT UP ON
DRIVEN ARM
Fig. 19. Adjusting th e Safety D evices
12
SAFETY DEVICES
CHEC K:
Th e safety inter lock should pre vent the work
cl omp from being lifted when mach ine is in ope r ation
and should prevent machi ne from start ing when work
clomp is raised.
SETTING:
Engage mach in e in nrun" pos tion and turn ana-
chire pulley over towa rd right until knife roller is
at extreme outw ard position on feed com as shown in
Fig. 18.
Loosen driving l&ver pi n ch screw, Fig. 19 ond
lift up on driven arm with sc rew drive r to bring lifting
lug against bock of bell cran k os shown.
Ma in ta in this position while tightening pinch
screw securely.
Then rotate machine pulley again until the point
is reached just befo re interlocking arm drops in to
notch on pulley ("stop" position).
Set od j1.1 sting pin {eccen t ric) , whi I ~ d epressing
clontp I ihing l eve r arm, so that paw l on lifti ng arm
does not engage dr.ven arm and s li des by as shown
in il'lsot, F i g. 19 .
Then rota te ma ch ine pul l ey to b rin g mac hi ne i nto
"s top " position and odju st t he clomp lifte r sto p
sho'tri n in Fig. 20 by means of adjusting nuts. Th e
stop sho u ld be set to l imi t extreme dow n wa rd m ove~
ment of l eve r arm and ther eby ovoid binding of start i ng
lever r ock shaft when clamp lifter is ac t ivated befo re
machi nes goes into "stop" pos it ion.
