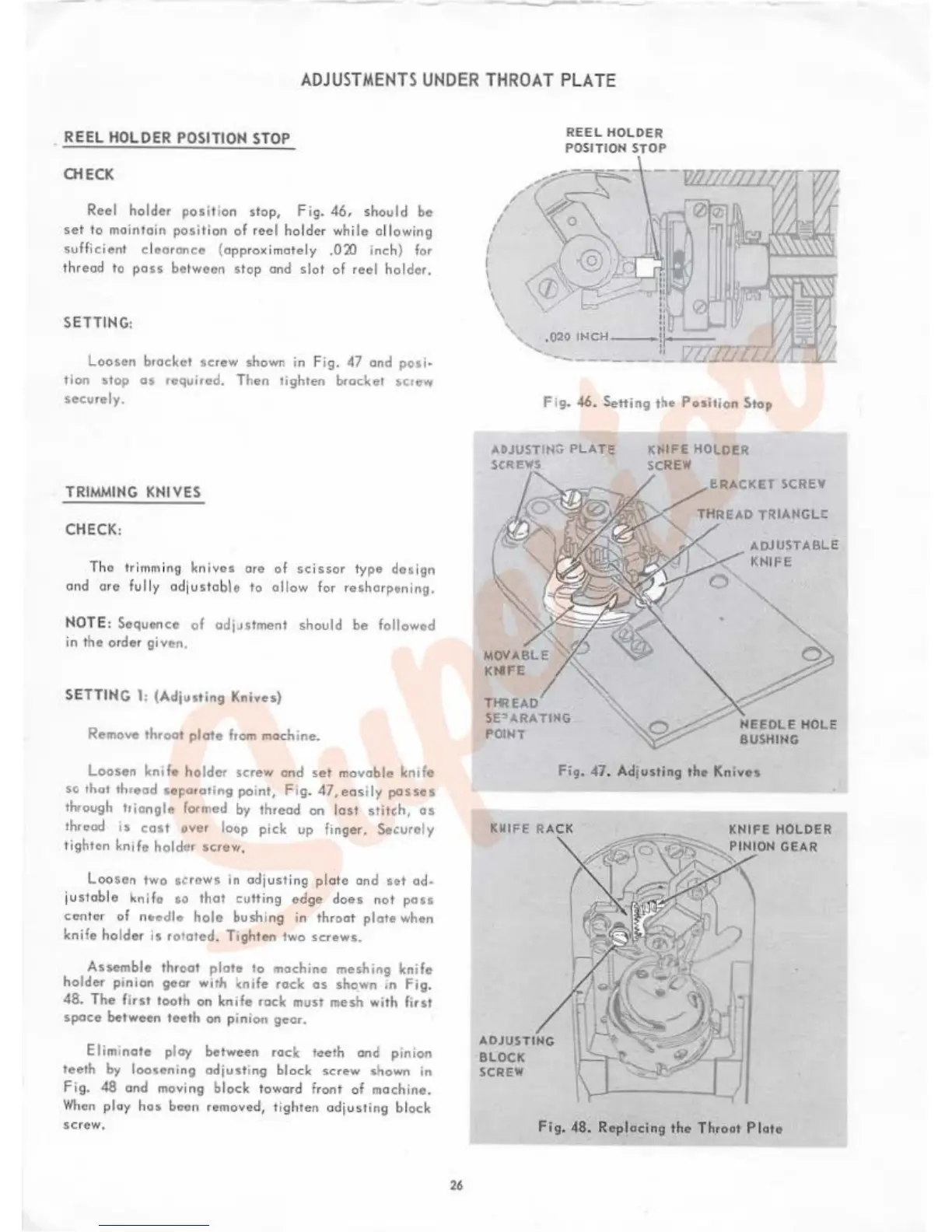

ADJUSTMENTS UNDER THROAT PLATE
REEL HOLDER POSITION STOP
DiECK
Reel holder posit1on stop, fig. 46, sho uld be
set to main t ain posit ion or ree l holdtr while a ll owing
su Ffi cien t c l oorcnce (a pproxima te ly .020 inc h) for
thr ea d to poss be tw een sto p ond slot of ree l holder.
SETTING:
Loosen brocket screw shown in Fig. 47 and p os i ..
tion 5top as required. Then tighten brocket s cr eYf
securely.
TRIMMING KNIVES
CHECK:
Tho trimming l< n ivo' ore of sc is sor ty pe des i gn
and oro fully adjustabl e to allow for re shar poning.
NOTE: Sequence of adjJstment should be followed
in t he ord er given .
SETTIN G 1: (Adiu•ting Kniv .. )
Remove throat plate from machine.
Loosen ~nife holder screw ond set movable ~n1fe
S(j that thread separating poi nt, F i g. 47,eosily posses
through lliangle formed by thread an lost stiteh, os
thrcod ts cost over loop pick up fing~ r. Securely
t ighten knife ho l der screvt,
Loose"' two screws in adjusting pl ate and set ad-
just ab le k nifo so that cuHing edge does not pan
center of ne,odlo hole bushing in th r oa t plate when
knife ho lder is rotated. Tighten two sc r ews.
Assemble throat plate to machine meshing knife
holder pinion gear w1rh <nife roc-k as sho_wn on Fig.
48 . T he first tooth on lc nafe rack must mesh with first
spoce between teeth on pinion gear.
Elim1nate ploy between rack teeth a nd pinion
teeth by loo1ening adjust i ng block screw shown in
Fig. 48 an d mov ing b lock toword front of machine.
When ploy ho s been removed
1
ti gh ten adjust ing block
screw.
26
REEL HOLDER
POSITION
f i g. 46. Setting the Position Stop
ADJUSTING PLATE
I
\
MOVABLE
KtfFE
Tlf!EAO
SE'ARATIHG
POINT
'
NEEDLE HOLE
BUSHING
fig. 47. Adjusting tho Kniv"'
ADJUSTING
BLOCK
SCREW
KNIFE HOLDER
PINION GEAR
Fig. 48. Replacing th e Throat Plato
