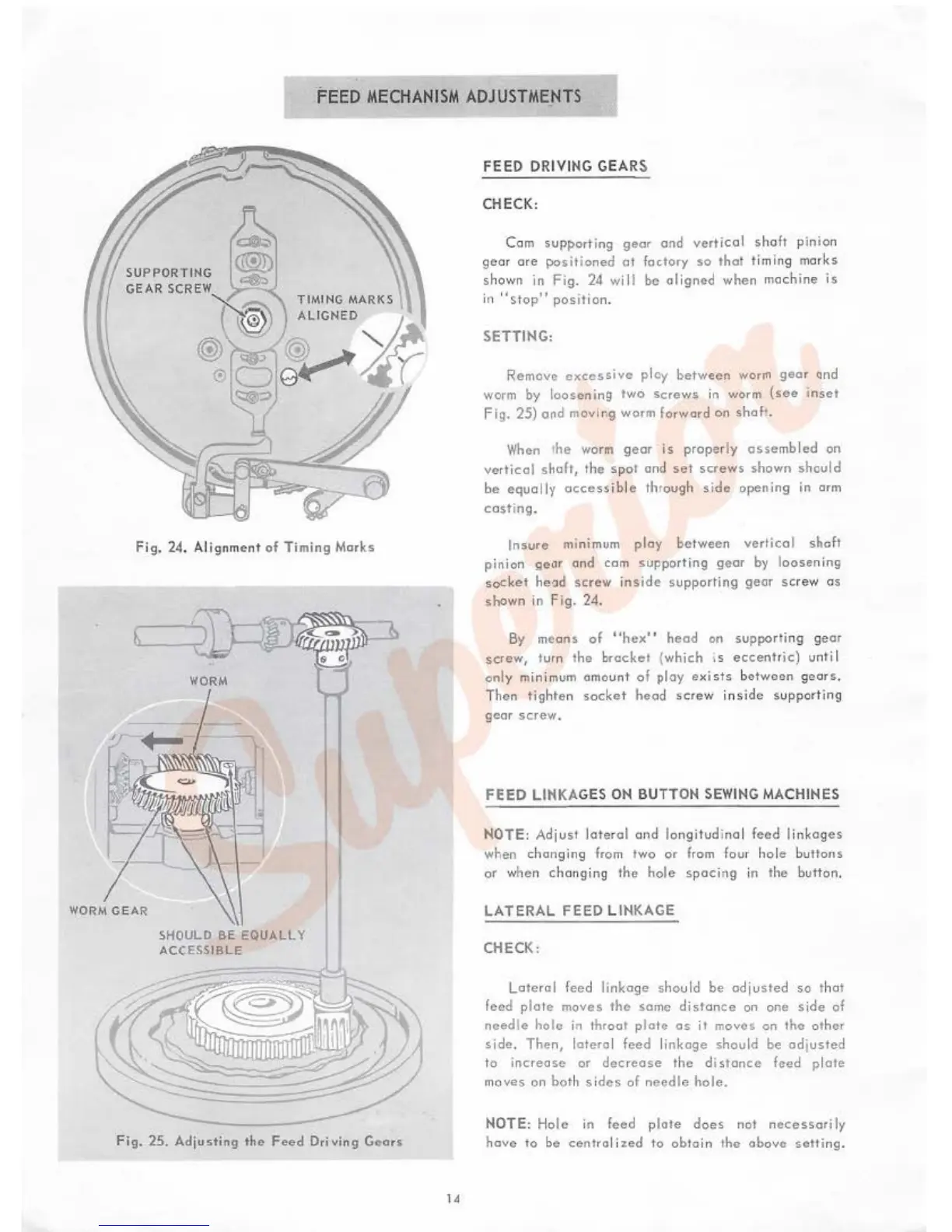

FEED MECHANISM ADJUSTMENTS
Fig. 24. Ali gnm ent of Timing Mark•
SHOULD BE EQUALLY
ACCESSIBLE
----
Fi g. 25. Adj ust ing the Feed Driving Coors
14
FEED DRIVING GEAR~
CHECK:
C om supporting gear and verti ca l sh a ft pm•on
ge ar ore po$itioned of f actory so that timing mar ks
s ho wn in Fig. 24 will be aligned when machin e is
in "s t op" posit ion.
SETTING:
Remove excessive ploy between worrn gea r cmd
worm by loosening two screws in worm (see inset
Fig. 25) and moving worm forward on shof·.
When t he worrn gear is properly assemb l ed on
vert i cal shah, the sp ot and set screws shown shculd
be equally accessib le through side opening in arm
casting.
Insure mini mum play between vertical shaft
pin ion geor and com supporting gear by loosenin9
soe k et heod screw i nside suppor t ing geor sc rew os
shown in Fig. 24.
By mfons of
11
hex• • head on suppo rti ng g ear
screw, turn the bracket {which \s ecGe ntr ic) unti I
only mini mum amo un t of ploy exi st s bet ween gea rs .
Then tig h ten socke t head scre w in si de support i ng
gear screw.
FEED LINKA GES ON BUTTON SEWING MACHINES
NOTE: Adju•l lateral a nd lo ng i tu dinal feed linkages
when ch an g ing from two or from fou r ho le bu11ons
or whe n c han ging the hole spacing in the b utton .
LATE RA L FEED LI NKAGE
CHECK:
Lateral feed linkage should be adiu•ted so th at
feed plate moves the some distance on one side of
need le hole in throat plate as it moves on the othc~
side . Then, lateral feed linkage should be ad justed
to increase or decrease the distance feed plate
moves on both sides of needle hole.
NO TE: Hole in feed plate does not necessarily
hove to be ccntro li :zed to obta in the obovc setti n g.
