Singer 270 - Page 104

Ref. Part
~~
1
2
3
4
5
6
7
8
9
10
11
12
13
548898
545292 (803)
548857
548981
548393
548989
548395
548990
548899
5 48862
548859
548860
548861

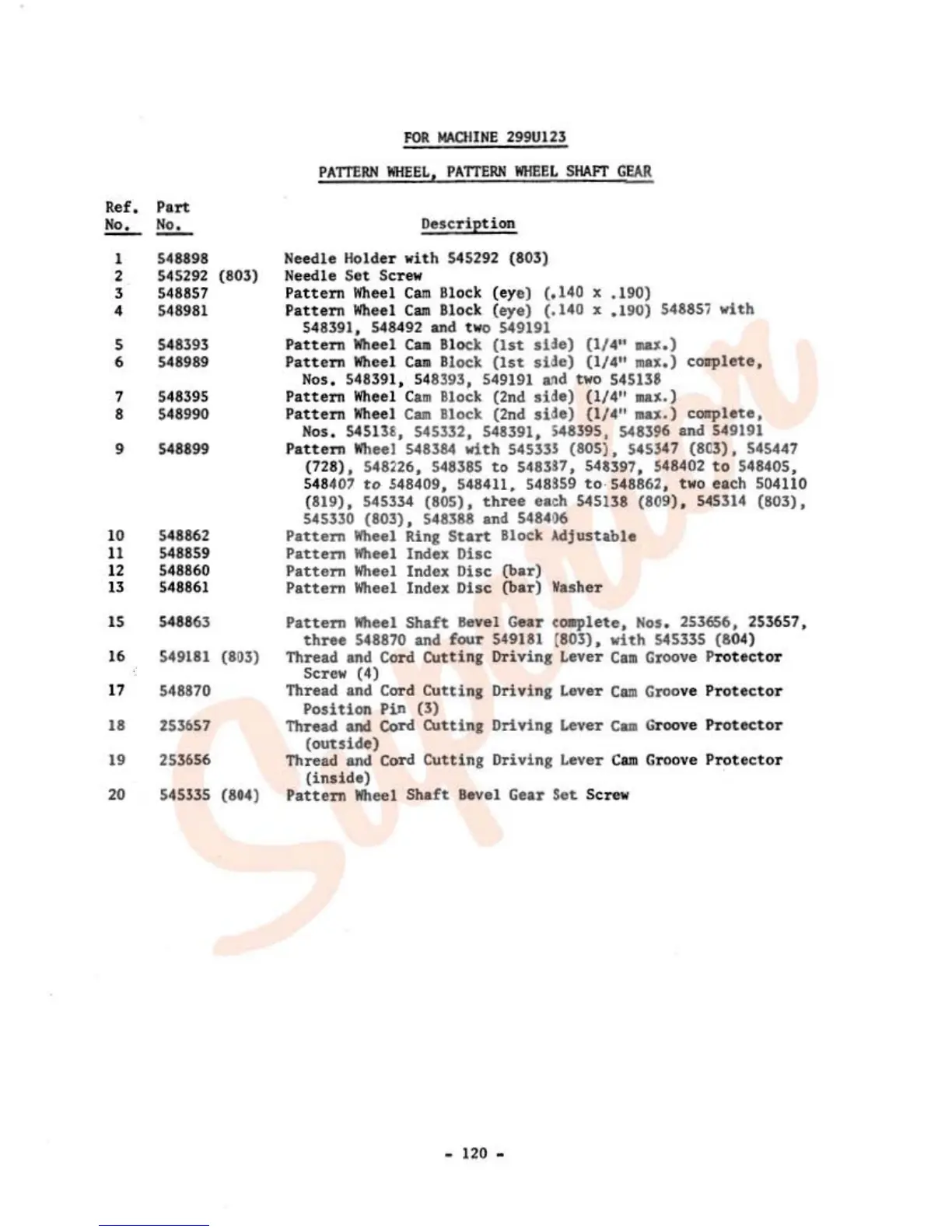

FOR MACHINE 299Ul23
PATTERN WHEEL, PATTERN WHEEL SHAFT GEA R
D esc ription
Needle Holder with 545 292 (803)
Needle Set Screw
Pattern Wheel Cam Block (ey e) (,140 x .190)
Pattern Wheel Cam Block (eye) (.140 x ,190) 54885i with
54839 1, 548492 and tw o 549191
Pattern Wheel Caa Bl ock (1st side) (1/4" IIU.)
Pattern Wheel Cam B lock (1st side) (1/4" max.) co~~plete,
Nos. 548391 , 54 8393 , 549191 ~d two 54 5138
Pattern Wheel C am Block (2nd side) (1/4" malt.)
Pattern Wheel Cam Block (2nd side) (1 /4" mu.) CODp l ete,
Nos. 545138, 545332, 548391 , 54 8395, 548396 and 549191
Pattern Wh eel 548384 with 545331 (805), 545347 (803), 545447
(728), 548226, 548385
to 5483!7, 54 8397 , 548402 to 548405,
5484 07 to S48409, 548 4 11 . 548359 to·5 4 8862 , tw o each 504110
(81 9), 545334 (805), three each 545138 (809) , 545314 (803),
545330 (803), 548388 and 548406
Pattern Wheel Ring Start Block Adjustable
Pattern Whee l Index Disc
Pattern Wheel Index Disc (bar)
Pattern Wheel Index Disc (ba r) Washer
IS 5488 63 Pat t ern Wheel Shaft Bevel Gea r co~lete , Nos. 253656 , 253657,
three 548870 and four 54918 1 (803), with 545335 (804)
16 549181 (8D3) Thread and Cord Cutting Dr i ving Leve r Cam Groove Protecto r
Screw (4)
17 548870 Thread and Cor d Cutting Driv ing Lover Cam Groo ve Protector
Posit ion Pin (3)
18 %53657 Thread and Cord Cutting Driving Lever Cam Groove Protector
(outside)
19 253656 Thread and Co rd Cutting D riving Leve r Cam Groove Protector
(ins id e)
20 5453 35 (804) Patte rn Wheel Shaft Bev el Gea r Sot Screw
-
120 -
