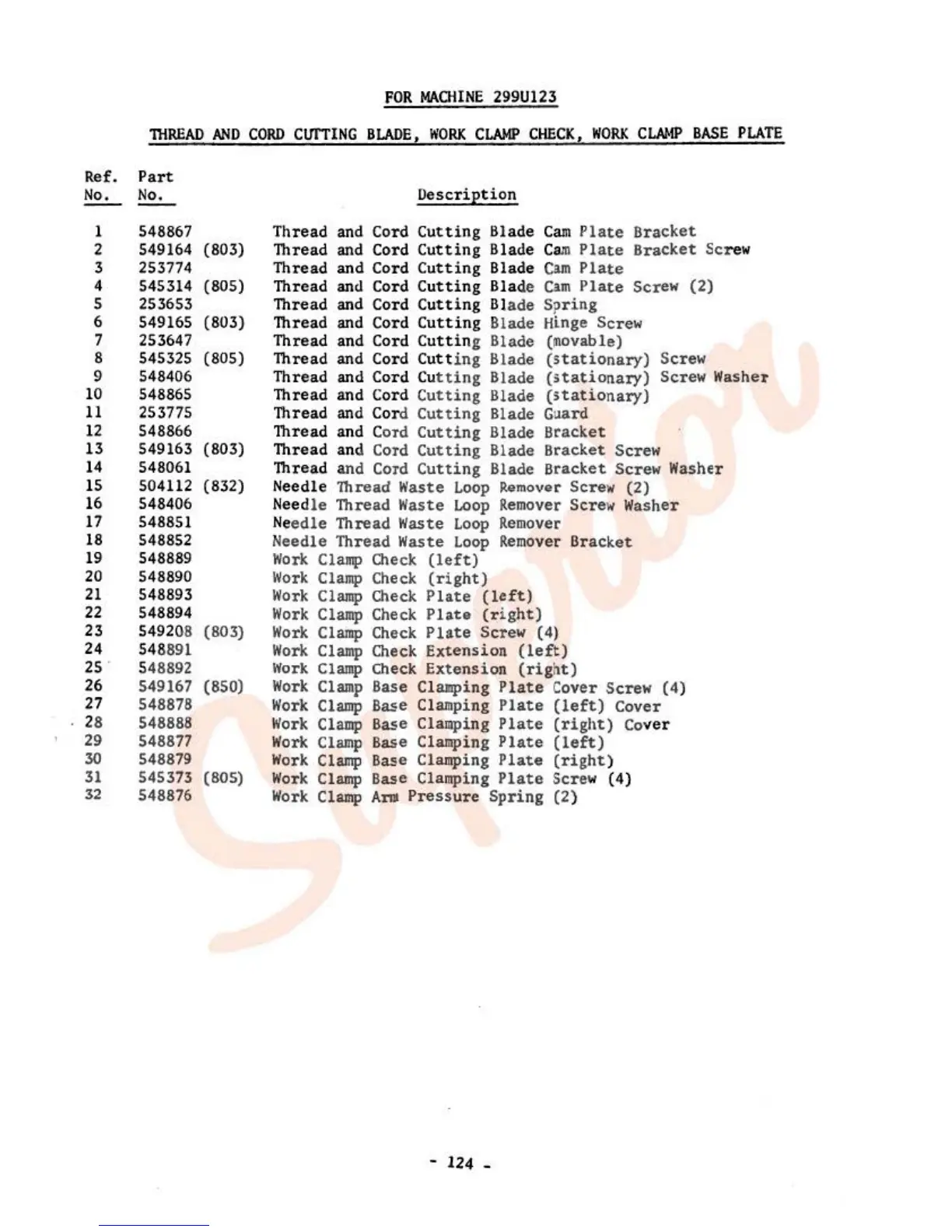

FOR MACHINE 299Ul23
ntREAD AND CORD ClJI'TING BLADE, WORK CLAMP CHECK, WORK CLAMP BASE PLATE
Ref. Part
No. No.
1 548867
2
549164 (803)
3 253774
4
545314 (805)
5 253653
6 549165 (803)
7 253647
8 545325 (805)
9 548406
10 548865
11 253775
12 548866
13 549163 (803)
14 548061
15 504112 {832)
16 548406
17 548851
18 548852
19 548889
20 548890
21 548893
22 548894
23 5492 08 (803)
24 548 891
25 · 548892
26 549167 (850)
27 548878
28 548888
29 548877
30 548879
31 545373 (805)
32 548876
Description
Thread and Cord Cutting Blade Cam Plate Bracket
Thread
and Cord Cutting Blade C am Plate Bracket Sc rew
Thread and Cord Cutting Blade Cam Plate
Thread and Co rd Cutting Blade Cam Plate Screw (2)
Thread and Cord Cutting Bl ade S?ring
Thread and Cord Cutting Blade Hinge Screw
Thread and Cord Cuttin g Blade (movable)
Thread and
Cord Cutt ing Blade (stationary) Screw
Thread and Cord Cu tting Blade (stationary) Screw Washer
Thread and
Cord Cutting Blade (stationary)
Thread an d Cord Cutting Blade Guard
Thread and
Cord Cutting Blade Bracket
Thread and
Cord Cutting Blade Bracket Screw
Thread and Cord Cutting Blade Bracket Screw Washer
Needle Thread Waste
Loop Remover Screw (2)
Nee d le Thread Waste Loop Remover Screw Washer
Ne edle Thread Waste Loop Remover
Needle Thread Waste Loop Remover Bracket
Work Clamp Check (left)
Work Clamp Check (right)
Work Clamp Check Plate (left)
Work Clamp Check Plate (right)
Work Clamp Check Plate Screw {4)
Work Clamp Check Extension (left)
Work Clamp Check Extension (rignt)
Work Clamp Base Clamping Plate Cover Screw (4)
Work Clamp Base Clamping Plate (left) Cover
Work Clamp Base Clamping Plate (right) Co ver
Work Clamp Base Clamping Plate (left)
Work Clamp Base Clamping Plate (right )
Work Clamp Base Clamping Plate Screw (4)
Work Clamp Aru Pressure Spring (2)
