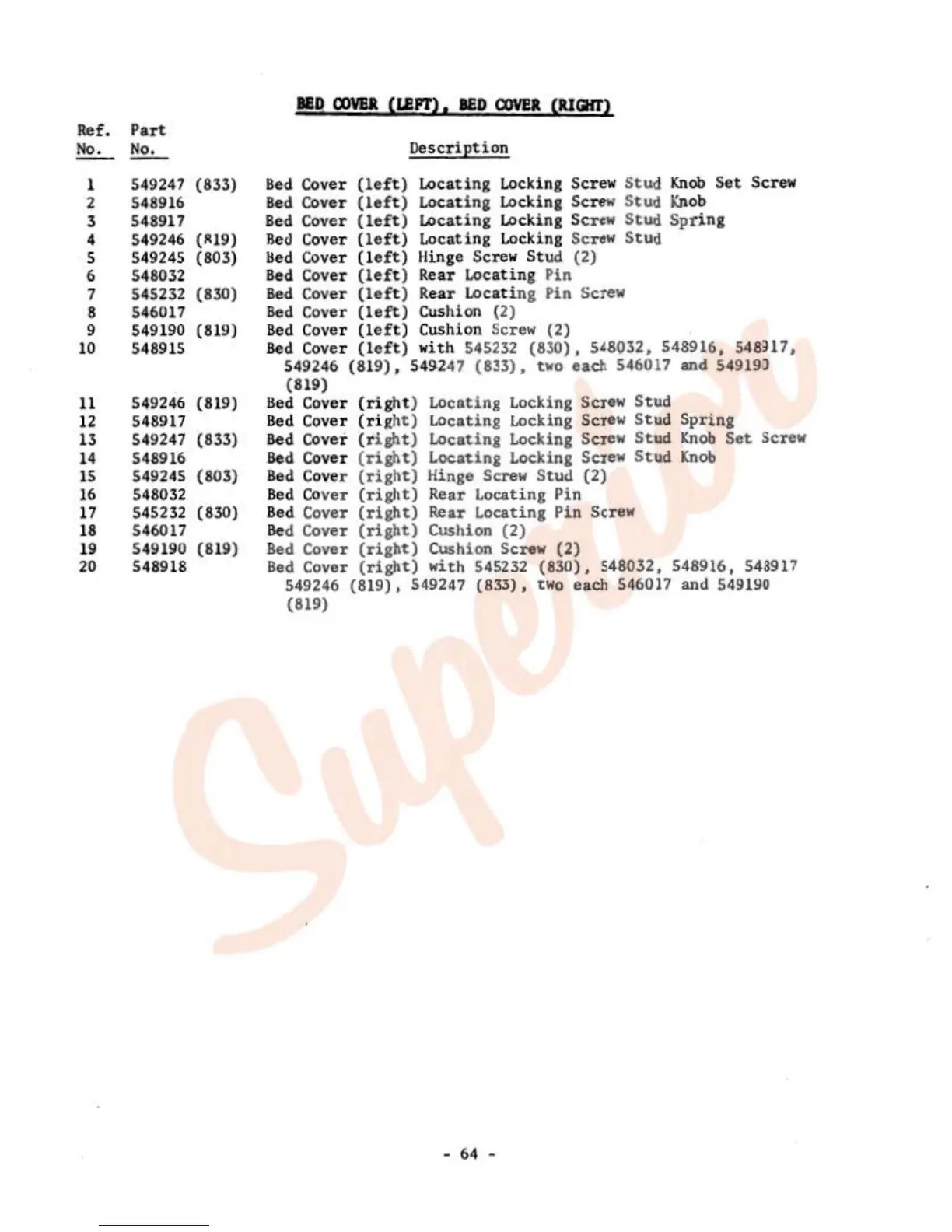

ED COVEl 'U!Fr2
1
E D COVEl 'IUGHJ'l
Ref. Part
No. No.
Description
1 549247 (833) Bed Cover (left)
Locating Locking Screw Stud Knob Set Screw
2 548916 Bed Cove r ( left )
Locating Locking
Screw Stud Knob
3
548917 Bed Cover (left)
Locating Locking Screw Stud Spr ing
4 5 49246 (1119)
Red Cover (left)
Locating Locking Screw Stud
5 549245 (803)
lied Cover (left) Hinge Screw Stu d (2)
6 548032
Bed Cover (left) Rear Locating Pin
7 545232 (830)
Bed Cove r {left ) Re ar Locating Pin Screw
8 546017
Bed Cover (left) Cushion (2)
9
549 1 90 (819) Bed Cover (left)
Cushion Screw (2)
10 5 48915
Bed Cover (left) with 545232 (830), 5A8032, 548916, 54~17,
549246 (819), 549247 (833), two each 546017 and 549193
(819)
11
5492 46 (819) lled Cover (right )
Locating Locking
Screw Stud
12 54 8917 Bed Cover (rig ht)
Locating Locking Screw Stud Spring
13
549247
(833)
Bed Cover (r ight)
Locating Locking Screw Stud Knob Set Screw
14 5489 16 Bed Cov er (rigllt)
Locating Locking Screw Stud Knob
15 549245 (803)
Bed Cover
(right)
Hinge Screw Stud (2)
16 548032 Bed Co ver (rigllt) Rear Locating Pin
17 5 45232 (830) Bed Cover
(right) Rear Locating Pin Screw
18 546017 Be d Cover (right) Cushion (2)
19 54 9190 (819) Bed Cover (r ight) Cushion Scxew (2)
20 5489 18
Bed Cove r (right) with 545232 (830), 548032, 548916 , 548917
549246 (819), 549247 (833) , two each 546017 and 549190
(819)
-
64 -
