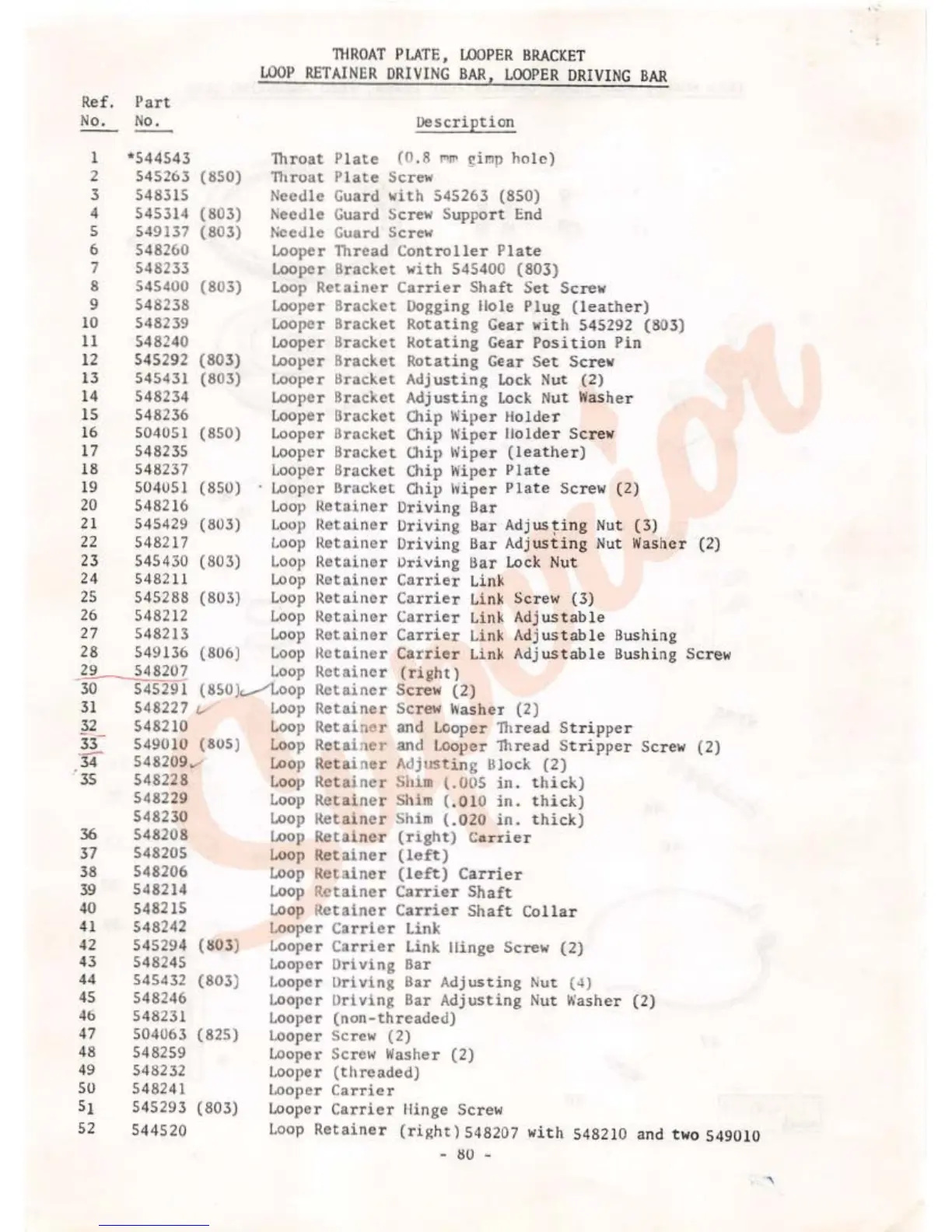

Singer 270 - Page 64

ntROAT PLATE, LOOPER BRACKE T
LOOP RETAINER DRIVING BAR, LOOPER DRIVING BAR
Ref. Part
No . No .
Description
1 * 544543 Throat Plate (0.8 ~m girnp ho le)
2 545263 (850) ntroat Plate Screw
3 548315 Needle Guard with 545263 (850)
4 545314 (803) Needle Guard Screw Support End
5 549137
(803) ~ccd1c Guard Screw
6 548260 Looper Thread Controller Plate
7 548233 Looper Bracket with 545400 (803)
8 545400 (803) Loop Retainer Carrier Shaft Set Screw
9 548238 Looper Bracket Dogging Hole Plug (leather)
10 548239 Looper Bracket Rotating Gear with 545292 (803)
11 548240 Looper Bracket Rotating Gear Position Pin
12 545292 (803) Looper Bracket Rotating Gear Set Scre w
13 545431 (803) Looper Bracket Adjusting Lock Nut (2)
14 548234 Looper Bracket Adjusting Lock Nut \~asher
IS 548236 Looper Bracket Chip Wiper tlolder
16 504051 (850) Looper Bracket Chip \Viper Holder Scre w
17 548235
Loo per Bracket Chip \Viper (lea ther)
18 548237 Looper Brac ket Chip Wiper Plate
19 504051 (850) Looper aracket Otip hiper Pla te Scre w (2)
20 548216 Loop Retainer Driving Bar
21 545429 (803) Loo p Retainer llriving llar Adjus png Nut (3)
22 548217 Loop Retainer Driving Bar Ad justing Nut Washer (2)
23
545430 (803) Loop Retainer Oriving llar Lock Nut
24 548211 Loop Retainer Carrier Link
25 545288 (803) Loop Rotailter Carrier Lin k Screw (3)
26 548212 Loop Retainor Carrier Lin k Adjustable
27 548213 Loop Retainer Carrier Lin k Adjustable Bushing
28 549136 (806) l.oop Retainer Carrier Link Adjustable Bushi ng Sc rew
29 548207 Loop Retainer (right}
" so 545291 (SSO)c...--""'Loop Retainer Screw (2)
31 548227 1/ Loop Retainer Sc rew washer (2)
~2 548210 Loop Retainer and Looper Threa d St ripper
33 - 549010 (80S) l.oop Retainer and Looper Thread Stripper Screw (2)
34 548209.,.., Loop Retainer Adjusting Block (2)
35 548228 Loop Retainer Siu.m (.005 in. thick)
548229 Loop Retainer Shim (. o 10 in. thick)
548230 Loop Retainer Shim (.020 in. thick)
36 548208 Loop Retainer (right) C arrier
37 548205 Loop Retainer (left)
38 548206 Loop Re~ainer (left) Carrier
39 548214 Loop Retainer Carrier Shaft
40 548215 Loop Retainer Carrier Shaft Collar
41 548242 Looper Carrier Link
42 545294 ( 803) Looper Carrier Link Hinge Screw (2)
43 548245 Looper llriving Bar
44 545432 (803) Looper Oriving Bar Adjusting Nut (4)
45 548246 Looper Orl ving Bar Adjusting Nut \\'asher (2)
46 548231 Looper (non-threaded)
47 504063 (825) Looper Screw (2)
48 548259 Looper Screw Washer (2}
49 548232
Looper (threaded}
50 548241 Looper Carrier
51 545293 (803) Looper Carrier Hinge Screw
52
544520 L oop Retainer (rig h t}548207 with 548210 and two 549010
