Singer 270 - Page 80

Ref. Part
No. No.
1 545264 (804)
2 548660
3 548493
4 545358
(803)
5 548617
6 548618
7 548619
8
545007 (850)
9 548167
10 545386 (803)
11 545446 (805)
12 548189
13 545282
(803)
14 548190
15 545361 (803)
16 545388 (803)
17 545425 (803)
18 548494
19 548498
20 548499
21 154983 (819)
22 548495
23 545357
(805)
24 548 192
25 5 48202
26 548659
27 545283 (803)
28 548653
29 548488
30 548091
31 S48489
32 545357 (805)
33 548451
34 548490

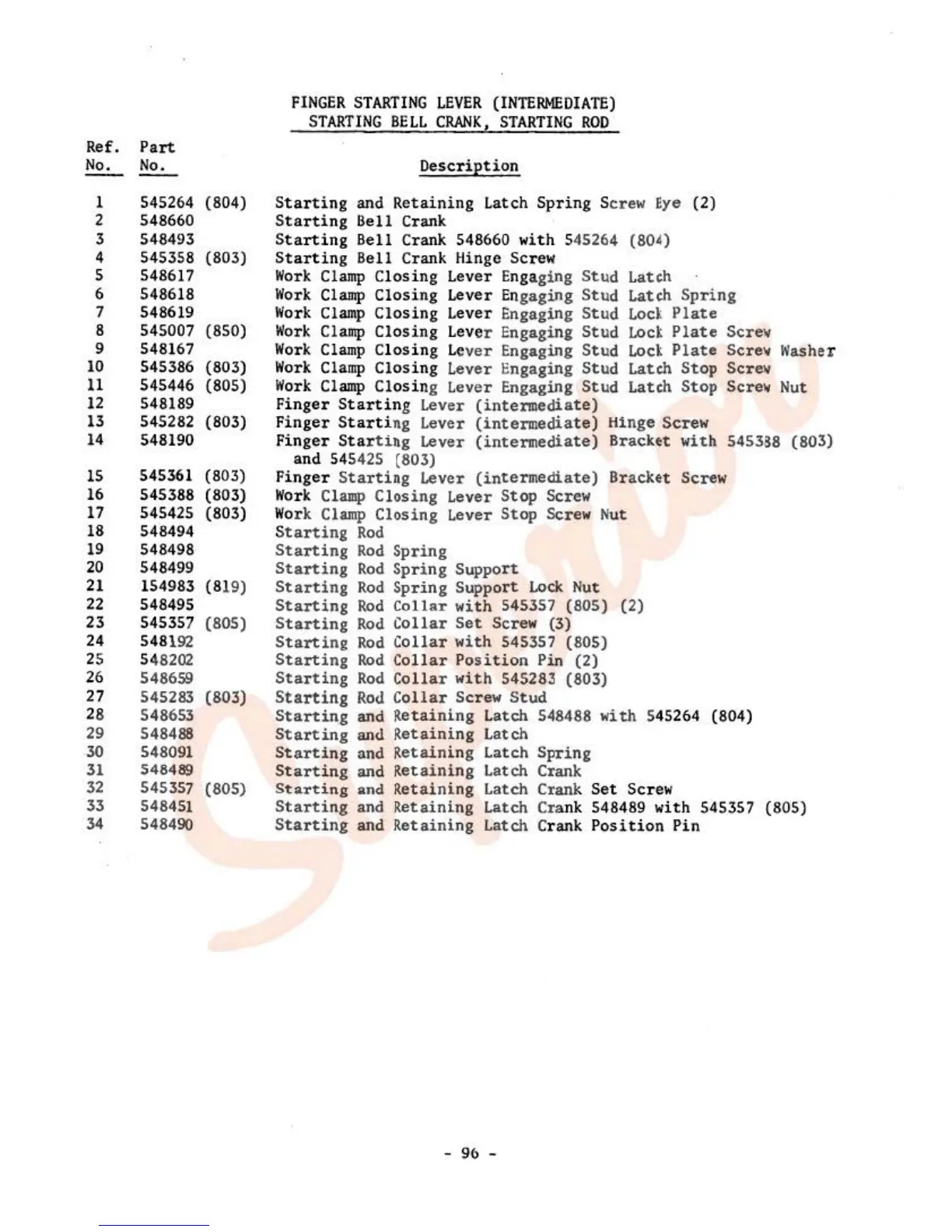

FINGER STARTING LEVER (INTERMEDIATE)
S TARTING BELL CRANK, STARTING ROD
Description
Starting and Retaining Latch Spring Screw Eye (2)
Starting Bell Crank
Starting Bell Crank 548660 with 545264 (804)
Starting Bell Crank tlingc Screw
Work Clamp Closing Lever Engaging Stud Latch
Work Clamp Closing Lever En gaging St ud Latch Spr i ng
Work Clamp Closing Leve r Engaging Stud Lock Plate
Work Clamp Closing Leve r Engaging Stud Loct Plate Sere~
Work Clamp C losing L ever Engaging Stud Loct Plate Sere-. l~ashe r
Work Clamp Closing Lever Engaging Stud Latch Stop Sere~
Work Clamp Closin g Lever Engaging Stud Latch Stop Sere .. Nut
Finger Starting Lever (intermediate)
Finger Starti ng Lever (intermediate ) H1nge Screw
Finger Star ting Lever (intermediate) Bracket with 545388 (803)
and 545 425 (803)
Finger Starting Lever (intermediate) Bracket Scre w
Work Clamp Closing Le v er Stop Screw
Wo r k Clamp Closing Le v er Stop Screw Nut
S tarting Rod
Starting Rod Spring
Starting Rod Spring Support
Starting Rod Spring Support Lock Nut
Starting Rod Collar with 545357 (805) (2)
Starting Rod Collar Set Screw (3)
Starting Rod Collar with 545357 (805)
Starting Rod Collar Position Pin (2)
Starting Rod Collar with 545283 (803)
Starting Rod Collar Screw Stud
Starting and Retaining Latch 548488 with 545264 (804)
Starting and Retaining Latch
Starting and Retaining Latch Spring
Start ing and Retaining Latch Crank
Starting and Retaining Latch Crank Set Screw
Starting and Retaining Latch Crank 548489 with 545357 (805)
Starting and Retaining Latch Crank Position Pin
