Singer 270 - Page 82

Ref. Part
No. No.
1 548462
2
545246 (803)
3 548652
4 548475
5 549158 (831)
6 548186
7 545353
(8 03)
8 545246 (803)
9 548463
10 545246 (803)
11 548186
12 548468
13 548469
14 504084 (810)
15 *548461
16 * 548203
17 545246 (803)
18 *548465
19 *545349
(803)
20 *548467
21' *545264 (804)
22 548466
23 548523
24 548524
25 545229
(805)
26 5485 10
27 54 8Sll
28 504029 (833)
29 548512
30 545l59 (803)
31 545H8 (80S)
32 548515
33 548518
34
545)85 (804)
35 S4ijl20
36 548!17
37 545360 (803)
38 548513
39 548114
40
504~29 (833)
41 548116
42 548519
43 54509 3 ( 80 3)
44 548521
45 548522
46 548529
47 548530
48 549260 (819 )
49 548428
so 504056 (830)
51 548525
52
548526
53 545361 (803)
54 548 527
55 545362
(804)
•56 549180 (805)

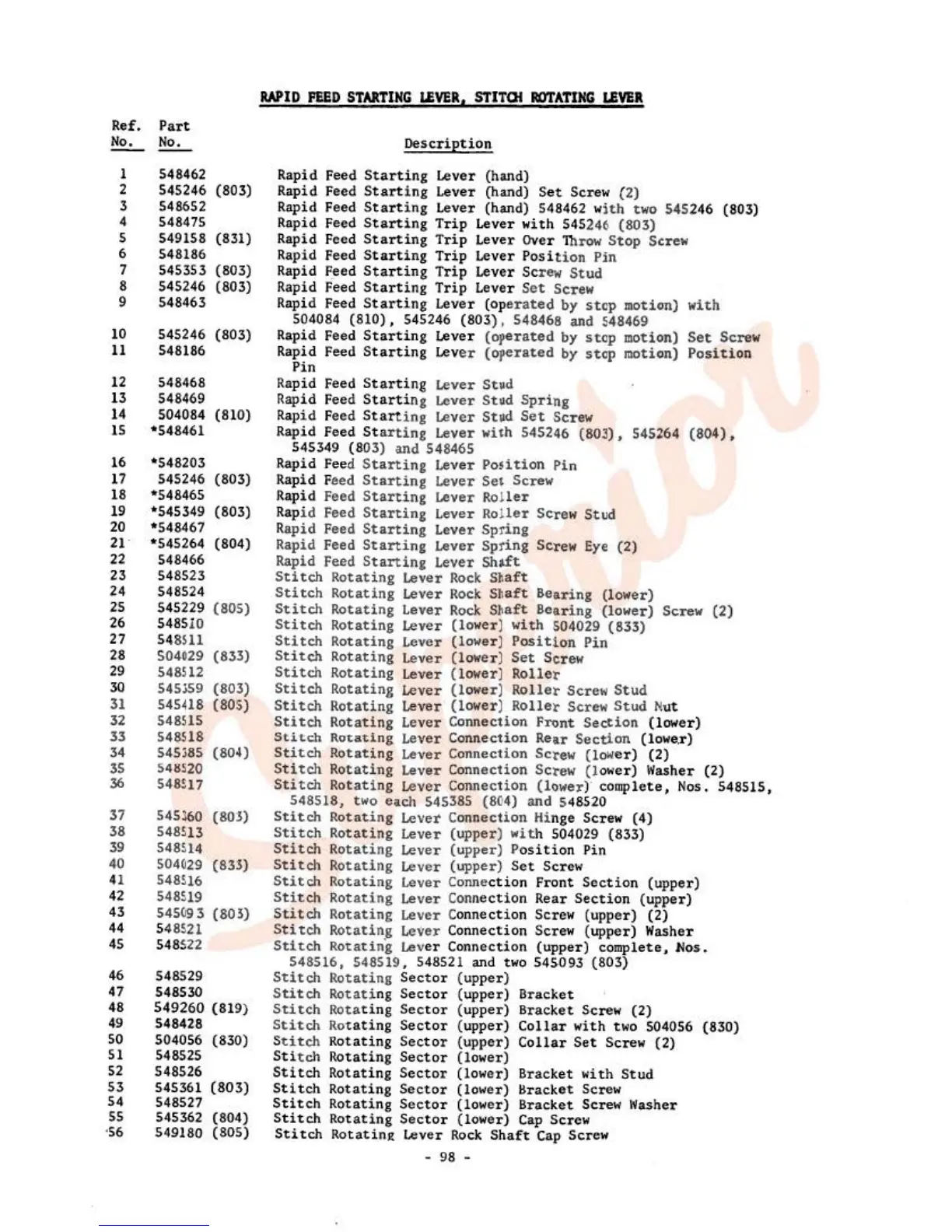

RAPID FEED STAIITIIIG IZVER, STITOI ROTATIHG IZVER
Description
Ra pi d Feed Star t ing Lever (hand)
Rapid
Feed Start i ng Leve r (hand) S et Scr ew (2)
Rapid
Feed Start in g L ever (hand) 548462 w ith two 545 246 (803)
Ra pi d Feed St arting T rip Lever w ith 545246 (803)
Rapid Feed Starting Tr ip Lever Over Throw Stop Screw
Ra pid Feed Starting Trip Lever Posit ion Pln
Rapid F_eed Starting Trip Lever Sc rew Stud
Rap id Feed S ta rti ng Trip Lever Set Screw
Rapid Feed Starting Leve r (op erated by stop motion) with
504084 (810), 545246 (80S) , 548468 and 548469
Rapi d Feed Starting Lever (operated by stop motion) Set Screw
Rapid Feed Starting Lev er (operated by stop motion) Position
Pin
Ra pi d Feed Star t ing Lever St•d
Rapid Fee d S ta rti ng Lever Sud Spring
Rapi d Feed Start ing Lever Sud Set Sc rew
Rapid Feed St arting Lever with 545246 (803), 545264 (804),
54534 9 (8 03 ) and 548465
Rapid Fee d Starting Lever Position Pin
Rapid Feed Starting Lever Set Screw
Rapi d Feed Starting Lever Roller
Rap id Feed Starting Lever Roller Screw Stud
R apid Feed Starting Lever Spring
Rapid Feed Starting Lever Spring Screw Eye (2)
Rapid
Feed Startin2 Lever Shift
Stitch Rotating Lever Rock S~aft
Stitch Rotating Lever Rock S~aft Bearing (lower)
Stitch Rotating Lever Rock S~aft Bearing (lower) Screw (2)
Stitch Rotating Lever (lo wer) wi th 504029 (833)
Stitch Rotating Lever {lower) Position Pin
Stitch Rotating Lever (lower) Set Screw
Stitch Rotating Lever (l ower) Rollet
Stitch Rotating Lever (lower) Roller Screw Stud
Stitch Rotating Lever (lower) Rollet Screw Stud N ut
Stitch Rotating Lever Connection Front Section (lower)
Stitch Rotating Lever Connection Rear Section (low~ )
Stitch Rotating Lever Connection Screw (low er) (2)
Stitch Rotating Lever Connection Scte w (l owe r) Washer (2)
Stitch Rotating Lever Connection (lower)' complete, N os. 548515,
548518, two eacl\ 545385 (8 0 4) and 548520
Stitch Rotating Lever Con nect ion Hi nge Scr ew (4)
Stitch Rotating Lever (upper) w it h 504029 (833)
Stitch Rotating Lever (upper) Posi t ion Pin
Stitch Rotating Lever (upper) Set Screw
Stitch Rotating Lever Conne c tion Front Sect ion ( up pe r)
Stitch Rotating Lever Con nection Rear Sec tion (upper)
Stitch Rotating Lever Connect ion Screw (upper) (2)
S tit ch Rotating Le~er Connection Screw (upper) Washe r
Stitch Rotating Lev er Connecti on {upper) compl e te~ ~os.
548516, 548519, 548521 and t wo 545093 (803)
Stitch Rotating Sector (upper)
Stitch Rotati ng Sector (upper) Bracket
Stitch Rota ting S ector (upper) Bracket Screw (2)
Stitch Rot ating Sector (upper) Collar w it h two 504056 (830)
S titch Rotating Sector (upper) Collar Set Screw (2)
Sti tch Rotating Sector ( lowe r)
Stitch Rotating Sector (lower) Bracket with Stud
Stitch Rotating Sector (lower) Bracket Screw
Stitch Rotat ing Se ctor (lower) Brack et Screw Washer
Stitch Rotating Sector (lower) Cap Screw
Stitch Ro t ating Lever Roc k S haft Cap Screw
- 98 -
