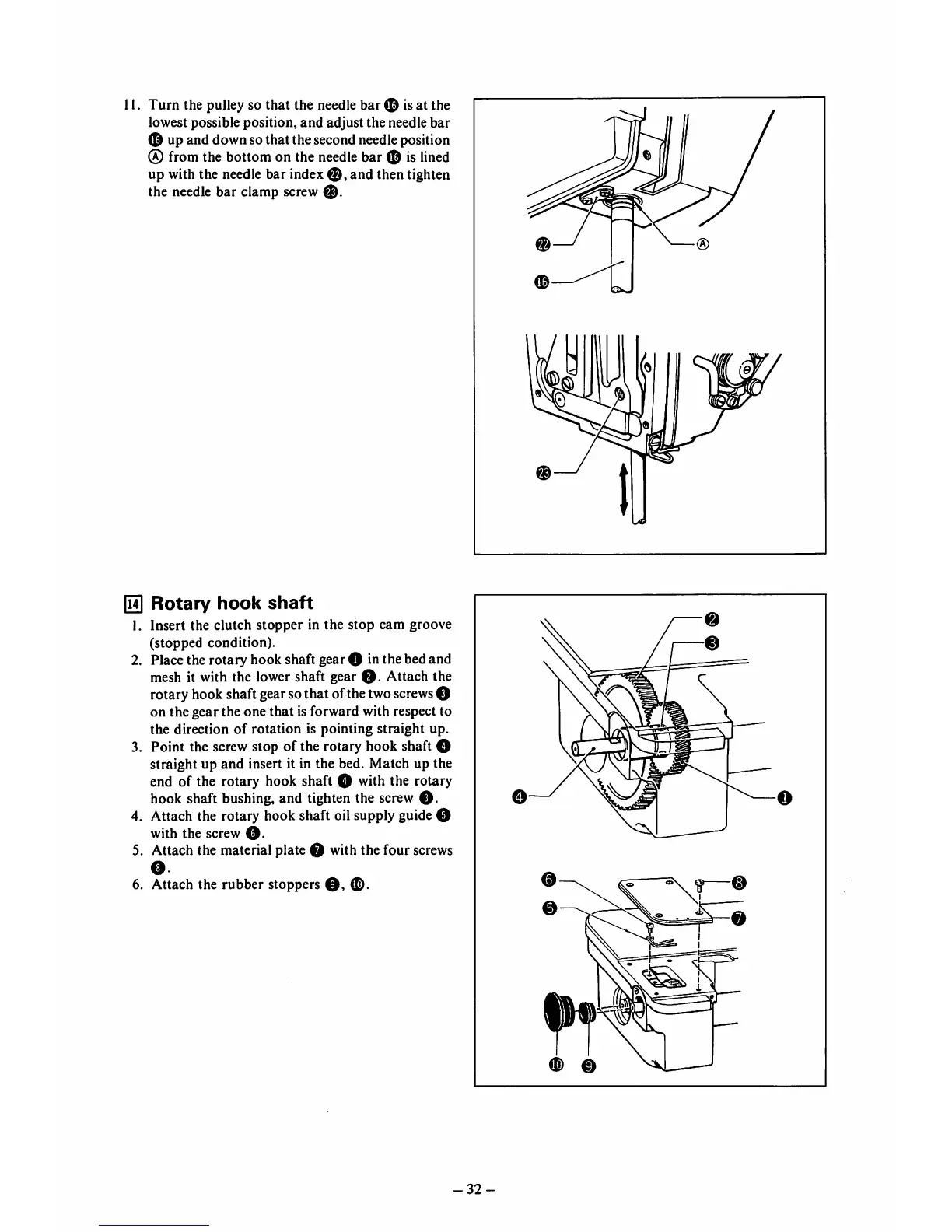

11. Turn the pulley so that the needle bar 0 is at the
lowest possible position,
and
adjust the needle
bar
up
and
down
so
that
the
second needle position
(a) from the bottom on the needle bar 0 is lined
up with the needle bar index
®,
and then tighten
the needle bar clamp screw
0.
[l4]
Rotary
hook
shaft
1. Insert
the
clutch
stopper
in
the
stop
cam
groove
(stopped condition).
2. Placethe rotary hook shaft gearO the bedand
mesh it with the lower shaft gear
O-
Attach the
rotary hookshaftgearsothat ofthetwo
screws
O
on the gear the one that isforward with respect to
the direction
of
rotation
is pointing straight up.
3. Point the screw stop of the rotary hook shaft O
straight up and insert it in the bed. Match up the
end of the rotary hook shaft O with the rotary
hook shaft bushing, and tighten the screw
O.
4. Attach the rotary hook shaft oil supply guide0
with the screw
0.
5. Attach the material plate 0 with the four screws
0
6. Attach the rubber stoppers
0,
0.
-32
