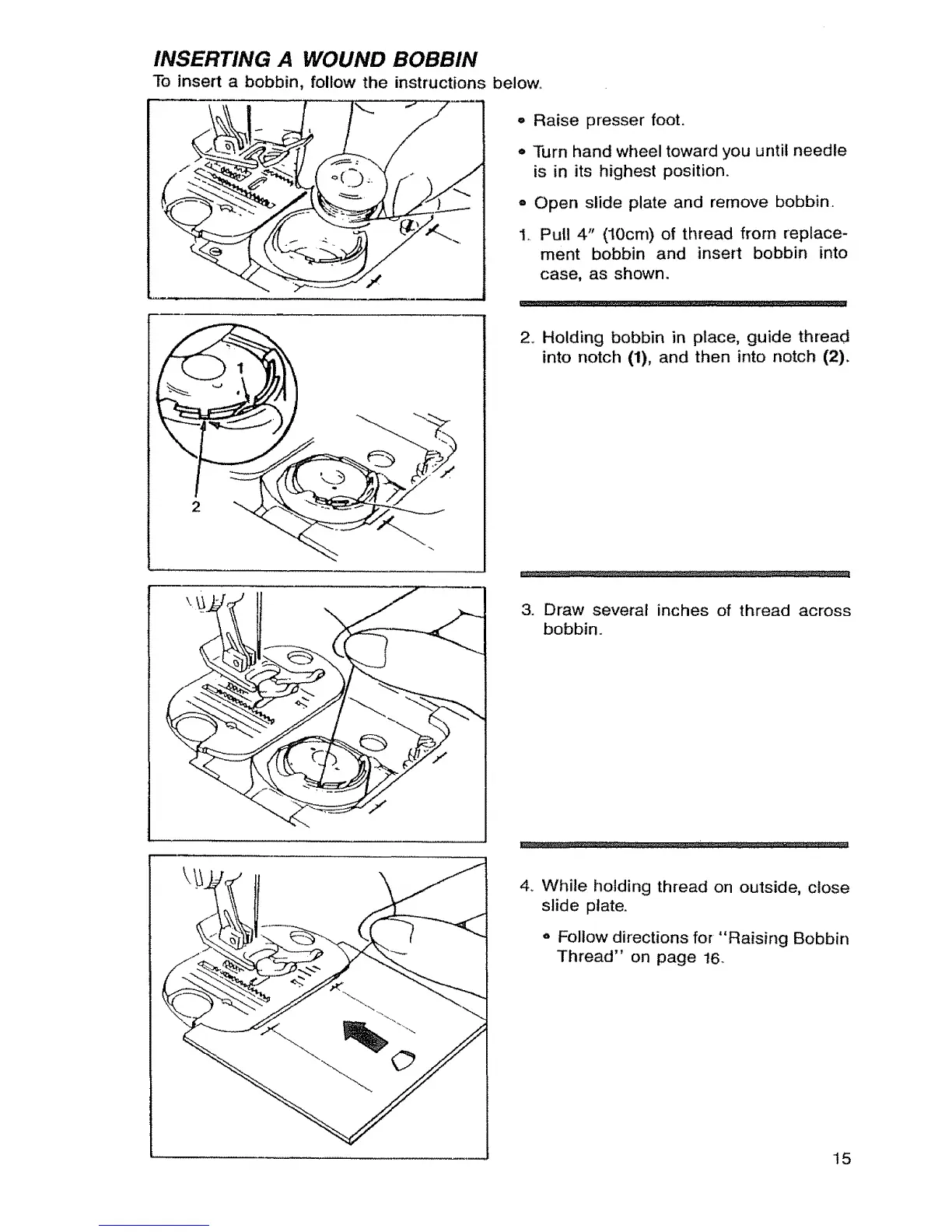

INSERTING A WOUND BOBBIN
To insert a bobbin, follow the instructions below°
o Raise presser foot.
o Turn hand wheel toward you until needle
is in its highest position.
= Open slide plate and remove bobbin.
1. Pull 4" (10crn) of thread from replace-
ment bobbin and insert bobbin into
case, as shown.
2. Holding bobbin in place, guide thread
into notch (1), and then into notch (2),
2
3. Draw several inches of thread across
bobbin.
4o While holding thread on outside, close
slide plate.
o Follow directions for "Raising Bobbin
Thread" on page 16..
15
