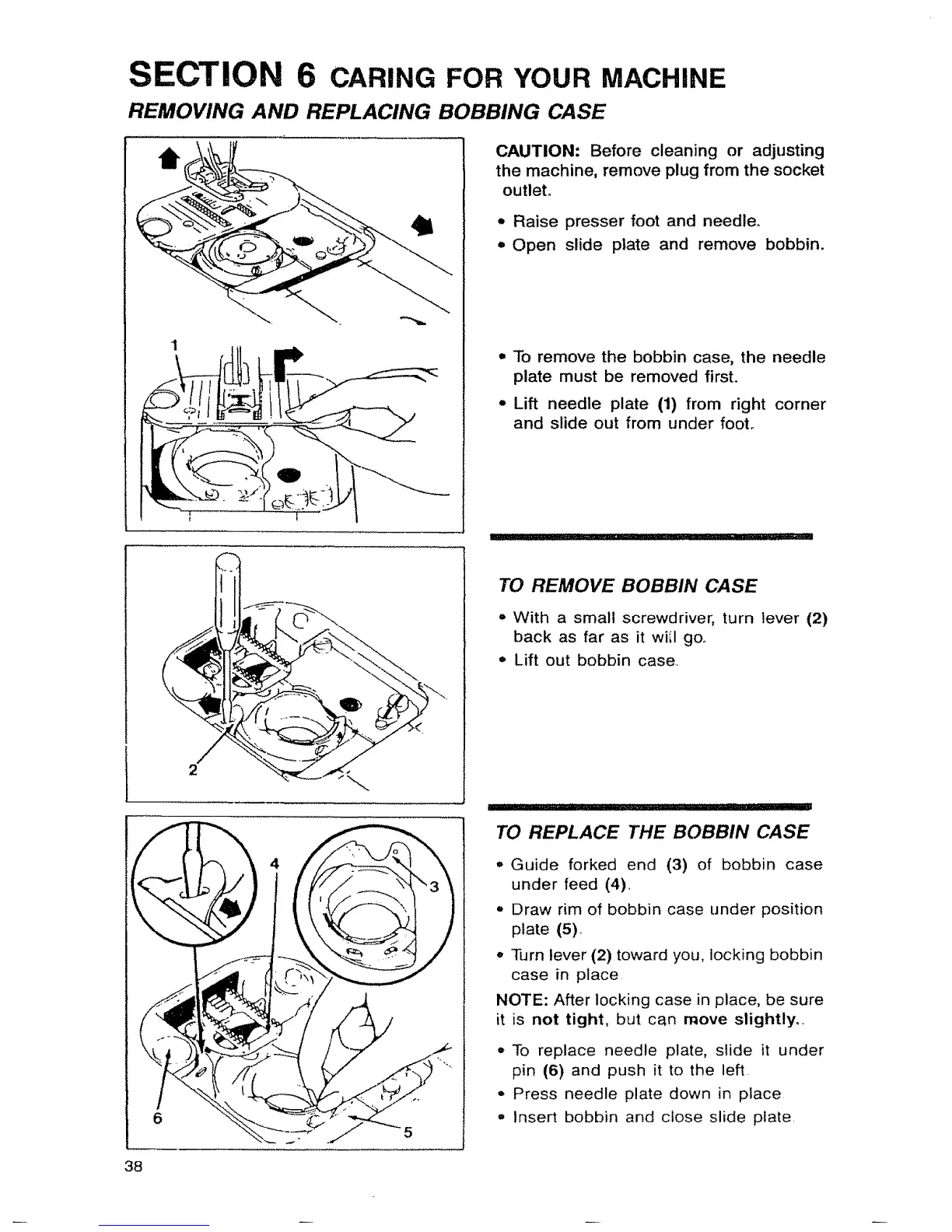

SECTION 6 CARING FOR YOUR MACHINE
REMOVING AND REPLACING BOBBING CASE
CAUTION: Before cleaning or adjusting
the machine, remove plug from the socket
outlet.
* Raise presser foot and needle.
* Open slide plate and remove bobbin.
* To remove the bobbin case, the needle
plate must be removed first.
• Lift needle plate (1) from right corner
and slide out from under foot.
38
6
TO REMOVE BOBBIN CASE
° With a small screwdriver, turn lever (2)
back as far as it will go,.
* Lift out bobbin case
TO REPLACE THE BOBBIN CASE
,' Guide forked end (3) of bobbin case
under feed (4)_
= Draw rim of bobbin case under position
plate (5).
e q_Jrn lever (2) toward you, locking bobbin
case in place.
NOTE: After locking case in place, be sure
it is not tight, but can move slightly°..
= To replace needle plate, slide it under
pin (6) and push it to the left
= Press needle plate down in place
o Insert bobbin and close slide plate.
