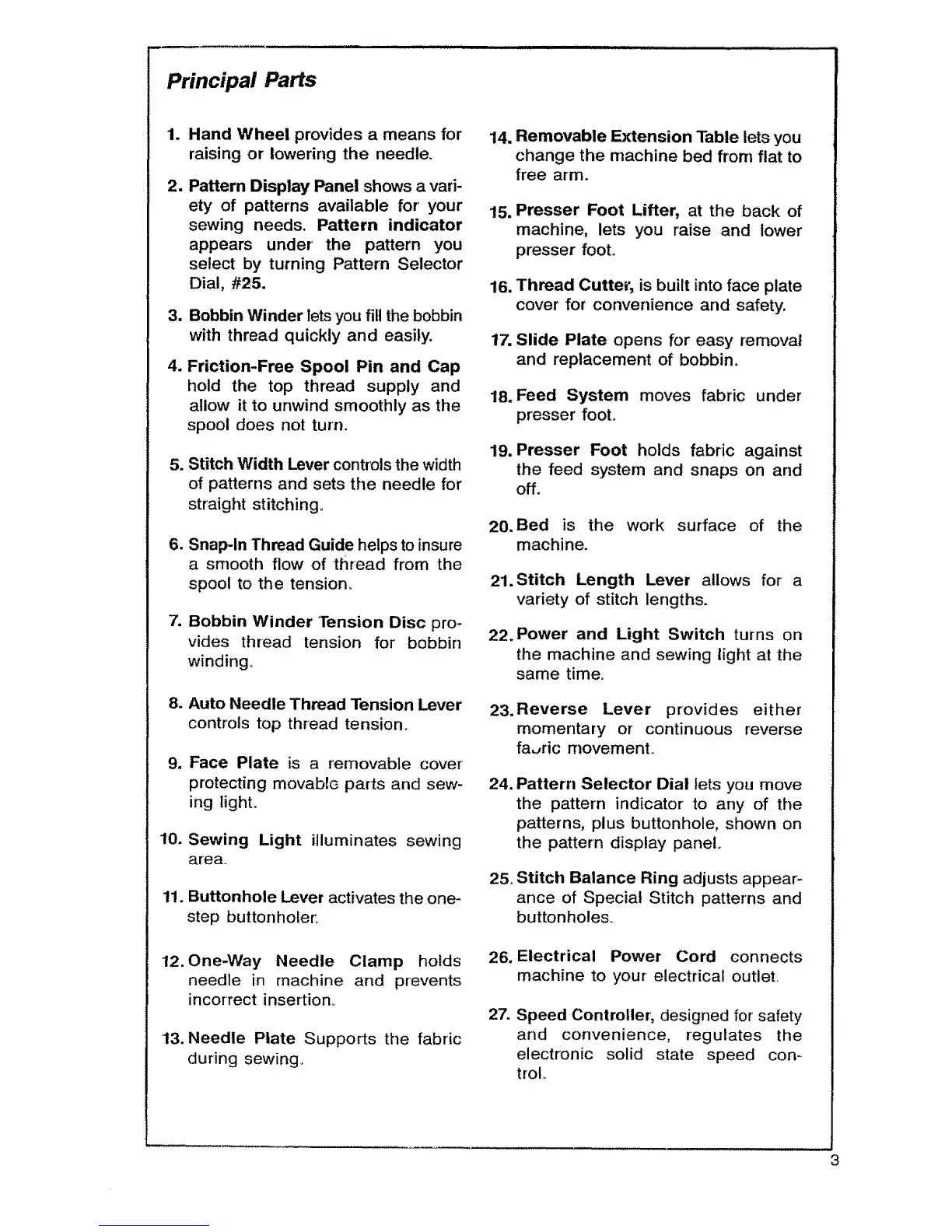

Principal Parts
1. Hand Wheel provides a means for
raising or lowering the needle.
14.
2. Pattern Display Panel shows a vari-
ety of patterns available for your 15.
sewing needs. Pattern indicator
appears under the pattern you
select by turning Pattern Selector
Dial, #25. 16.
3. Bobbin Winder lets you fill the bobbin
with thread quickly and easily.
4. Friction-Free Spool Pin and Cap
hold the top thread supply and
allow it to unwind smoothly as the
spool does not turn.
5. Stitch Width Lever controls the width
of patterns and sets the needle for
straight stitching_
6. Snap-In Thread Guide helps to insure
a smooth flow of thread from the
spool to the tension,
7. Bobbin Winder Tension Disc pro-
vides thread tension for' bobbin
winding°
8. Auto Needle Thread Tension Lever
controls top thread tension.
9. Face Plate is a removable cover'
protecting movabtc parts and sew-
ing light.
10. Sewing Light illuminates sewing
area,.
11. Buttonhole Lever activates the one-
step buttonholer'_
12.One-Way Needle Clamp holds
needle in machine and prevents
incorrect insertion,,
13. Needle Plate Supports the fabric
during sewing,,
17.
18.
19.
Removable Extension Table lets you
change the machine bed from flat to
free arm.
Presser Foot Lifter, at the back of
machine, lets you raise and lower
presser fool
Thread Cutter, is built into face plate
cover for convenience and safety.
Slide Plate opens for easy removal
and replacement of bobbin.
Feed System moves fabric under
presser foot,,
Presser Foot holds fabric against
the feed system and snaps on and
off.
20.Bed is the work surface of the
machine.
21.Stitch Length Lever allows for a
variety of stitch lengths.
22.Power and Light Switch turns on
the machine and sewing light at the
same time°
23.Reverse Lever provides either
momentary or continuous reverse
fa_,ric rnovemenL
24. Pattern Selector Dial lets you move
the pattern indicator to any of the
patterns, plus buttonhole, shown on
the pattern display panel.
25. Stitch Balance Ring adjusts appear-
ance of Special Stitch patterns and
buttonholes,
26. Electrical Power Cord connects
machine to your electrical outlet,
27.
Speed Controller', designed for safety
and convenience, regulates the
electronic solid state speed con-
trol_
3
