© Jul. 2022 6-2 AB10ERJN Operation Manual
PRE-OPERATION FUNCTION TEST

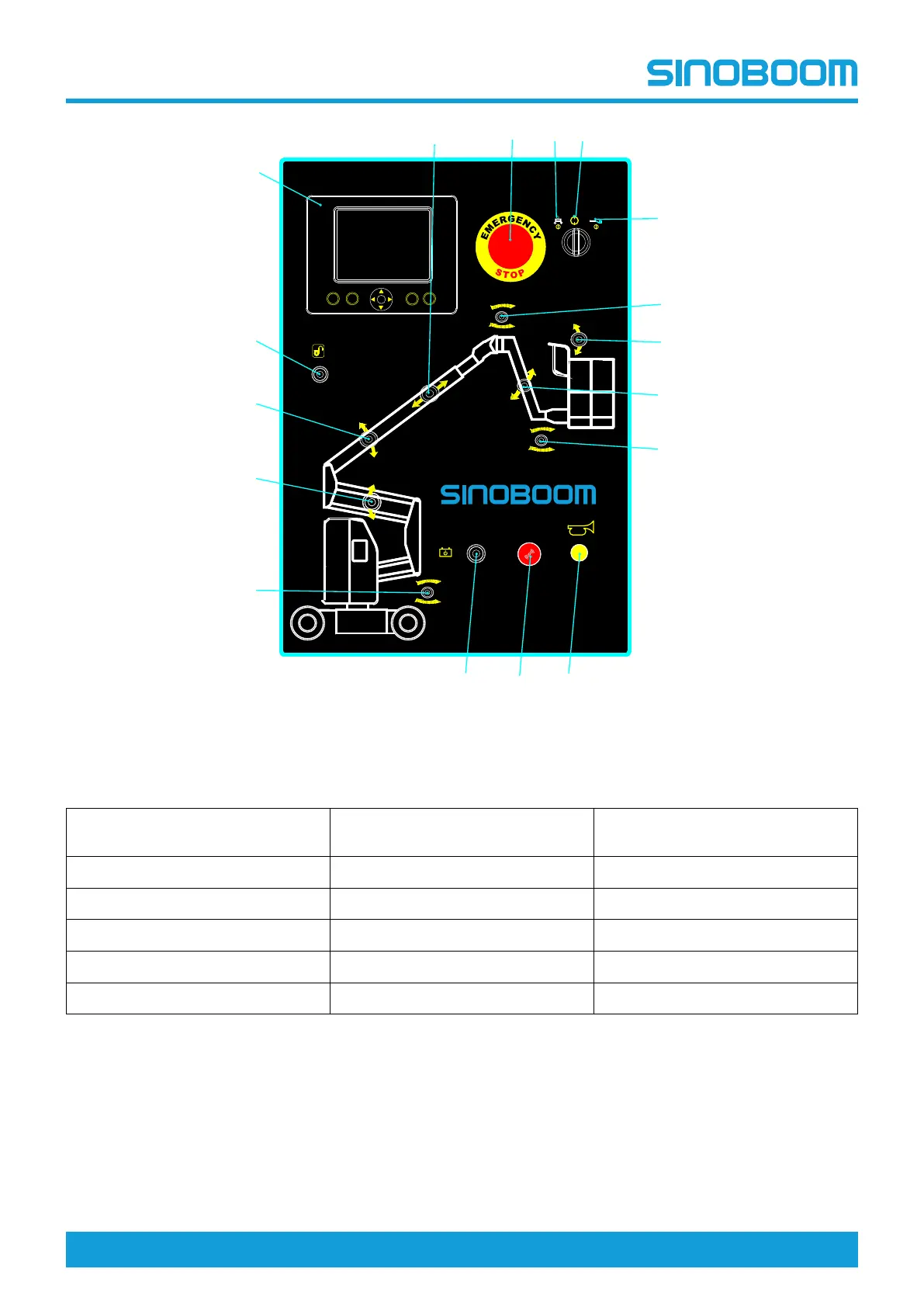

Figure 6-1 Ground controller
Table 6-1
1. Display screen
(see the figure and table below)
7. Buzzer
13. Platform control position
2. Enable switch 8. Horn
14. OFF (neutral) position
3. Main boom luffing switch
9. Platform rotation switch
15. Ground control position
4. Articulating boom luffing switch 10. Jib boom up/down switch 16. Emergency stop button
5. Turntable rotation switch
11. Platform leveling switch 17. Main boom telescoping switch
6. Emergency power switch
12. Jib boom rotation switch
CAUTION
1
2
3
4
5
6
7
8
9
10
11
12
13
1415
16
17
