PRE-OPERATION FUNCTION TEST
AB10ERJN Operation Manual 6-3 © Jul. 2022

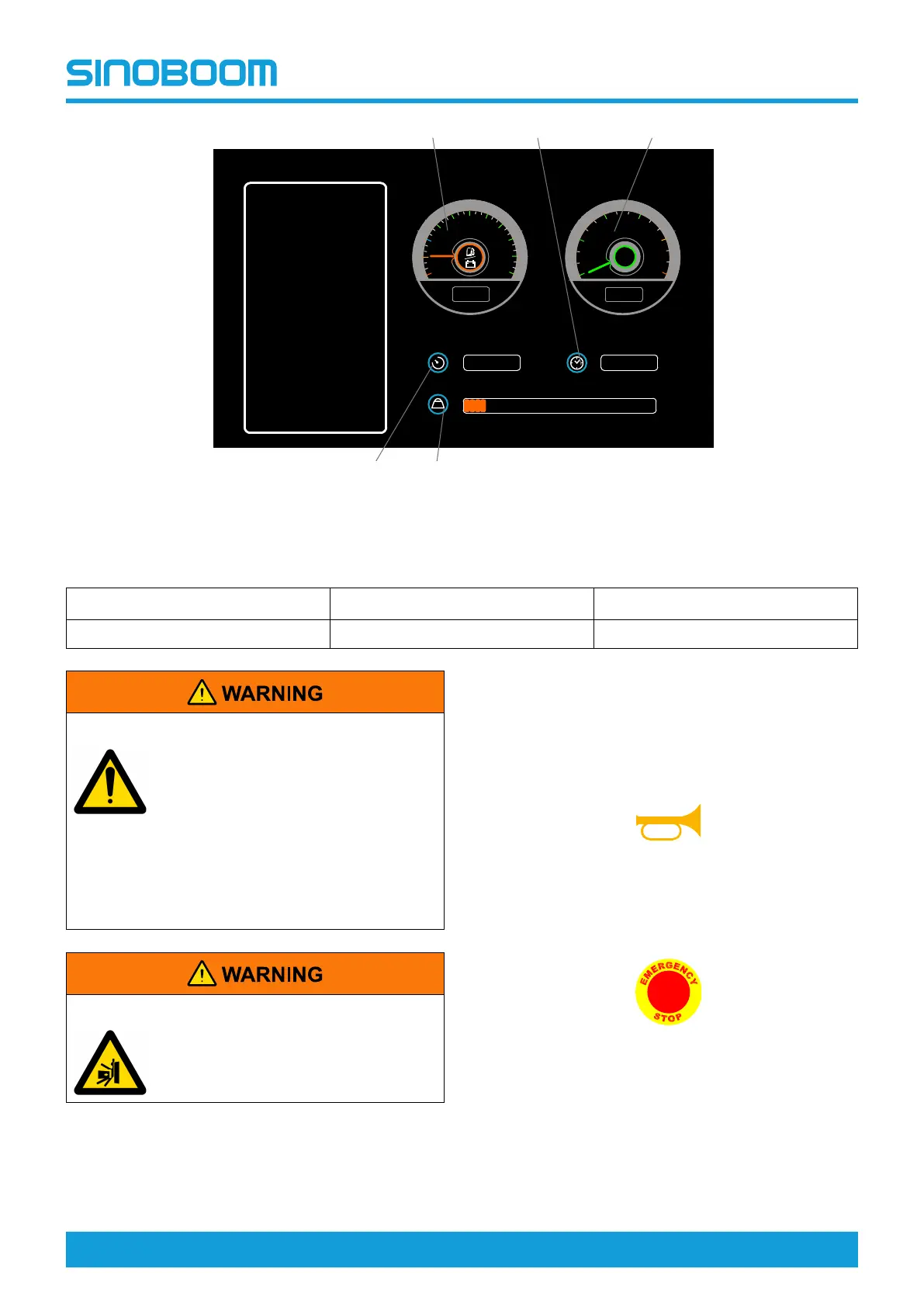

Figure 6-2 Ground controller display screen
Table 6-2
1. Diesel/Battery gauge
3. Tachometer 5. Platform load
2.Accumulated work hours 4. Current work hours
UNSAFE OPERATION HAZARD
• Unless in emergency situations,
never operate the machine from
the ground controller if there is
any person on the platform.
• Never operate the machine if any
control handle or switch that
controls the platform movement
does not return to the OFF
position after being released.
COLLISION HAZARD
Before operating the boom, ensure the
area near or under the platform is clear
of persons or obstructions.
Preparation
1. Turn the Ground/Platform select switch on the
ground controller to ground control position.
2. Pull out the emergency stop button on the ground
controller to ON position.
3. Ensure the screen indicator light is illuminated and
no error comes up.
Horn
Press the horn button, the horn will sound to remind
the surrounding people to be careful.
Emergency stop button
1. Push in the emergency stop button on the ground
controller to OFF position and all functions shall
be inoperative.
2. Pull out the emergency stop button on the ground
controller to ON position.
Ground/Platform select switch
E
2
4
6
8
F
11 %
0
1
2
3
4
5
0
RPM
X1000
H H
11.5
0011.5
1 2
54
3
∅52
∅22
∅35
∅55
4X ∅7
∅12.5
R2.5
∅22
4XR6
235
98
78
220
4065
57.540.5
11.2
7.5
1
2
3
4
5
6
7
1
2
3
4
5
6
7
