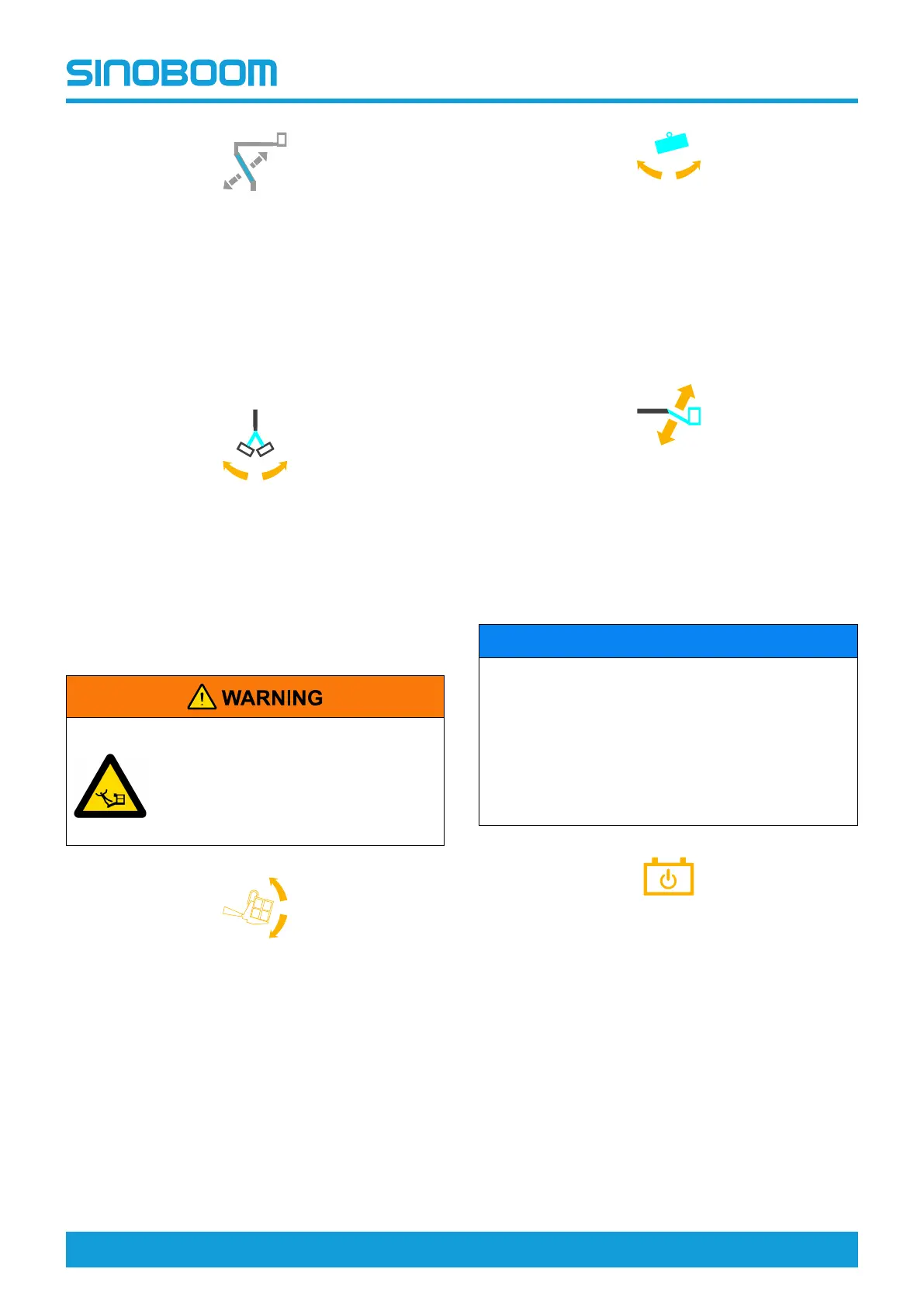

PRE-OPERATION FUNCTION TEST
AB10ERJN Operation Manual 6-9 © Jul. 2022
1. Depress the foot switch and meanwhile push
upward the articulating boom luffing switch, the
articulating boom shall go up smoothly.
2. Depress the foot switch and meanwhile pull down
the articulating boom luffing switch, the
articulating boom shall go down smoothly and the
buzzer shall sound.
Jib boom rotation switch
1. Depress the foot switch and push the jib boom
rotation switch to the left, the jib boom shall rotate
clockwise.
2. Depress the foot switch and push the jib boom
rotation switch to the right, the jib boom shall
rotate anticlockwise.
Platform leveling switch
FALL HAZARD
The platform leveling function is only
used for slight adjustment of the
platform. Improper operation may result
in unintended movement or fall of the
load/occupants.
1. Depress the foot switch and push upward the
platform leveling switch, the platform level should
go up.
2. Depress the foot switch and pull down the
platform leveling switch, the platform level should
go down.
Platform rotation switch
1. Depress the foot switch and push the platform
rotation switch to the left, the platform shall rotate
clockwise.
2. Depress the foot switch and push the platform
rotation switch to the right, the platform shall
rotate anticlockwise.
Jib boom up/down switch
1. Depress the foot switch and push upward the jib
boom up/down switch, the jib boom shall go up.
2. Depress the foot switch and pull down the jib
boom up/down switch, the jib boom shall go
down.
Emergency power switch
NOTICE
• The emergency power switch is only used for a
short period of time (fully lower and retract the
platform from the maximum degree and length
possible) when the engine fails.
• When the emergency power is in use, do not
perform two or more functions simultaneously,
otherwise the auxiliary motor and pump will get
overloaded.
Depress the foot switch and push the emergency
power switch and one function switch/handle, the
corresponding function shall work normally.
Rear position indicator light
When the boom tube rotates beyond the rear wheels,
the drive function shall be inoperative and the rear
position indicator light shall flash at an interval of
0.5s.
Rear position drive switch
