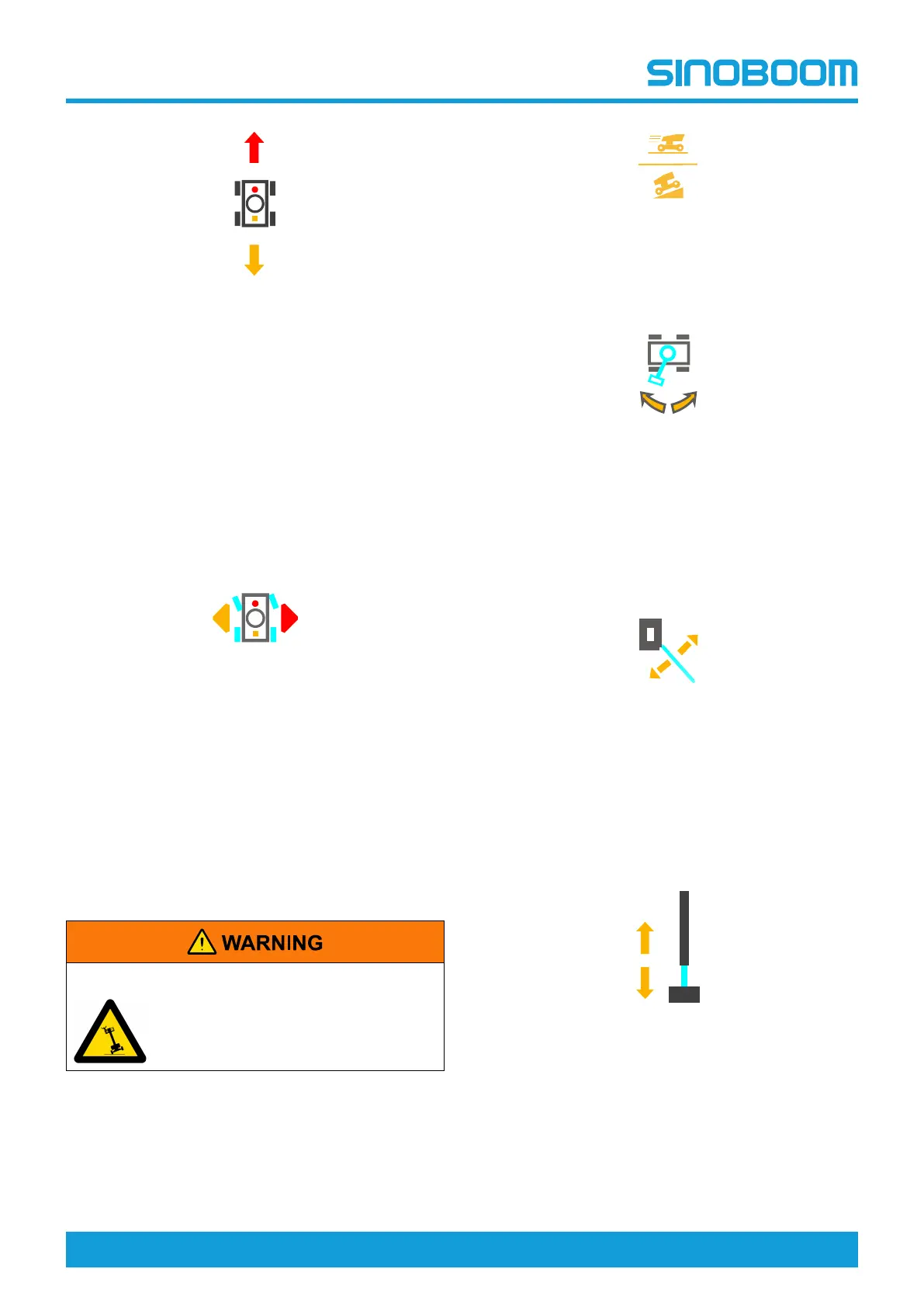

PRE-OPERATION FUNCTION TEST
1. Depress the foot switch and push forward the
drive/steer proportional control handle, the
machine shall move forward smoothly without
noticeable impact in startup; when the handle is
released, the machine should be held reliably.
2. Depress the foot switch and pull back the drive/
steer proportional control handle, the machine
should move backward smoothly without
noticeable impact in startup; when the handle is
released, the machine should be held reliably.
Note: The drive speed is in direct proportion to the
travel distance of the handle.
Steer function
1. Depress the foot switch, push forward the drive/
steer proportional control handle and push in the
left button on top of the handle, the machine shall
steer leftward.
2. Depress the foot switch, pull backward the drive/
steer proportional control handle and push in the
right button on top of the handle, the machine
should steer rightward.
Note: The steer speed is in direct proportion to the
travel distance of the handle.
Drive speed select switch
TIPPING HAZARD
The machine must run at low speed
when not on a level surface.
With the machine in stowed position, toggle the drive
speed select switch, the drive speed will be switched
between high/low speed.
Turntable rotation switch
1. Depress the foot switch and push the turntable
rotation switch to the left, the turntable shall rotate
clockwise.
2. Depress the foot switch and push the turntable
rotation switch to the right, the turntable shall
rotate anticlockwise.
Main boom luffing switch
1. Depress the foot switch and push upward the
main boom luffing switch, the main boom shall
rise smoothly.
2. Depress the foot switch and pull down the main
boom luffing switch, the main boom shall descend
smoothly, and the buzzer shall sound.
Main boom telescoping switch
1. Depress the foot switch and push upward the
main boom telescoping switch, the main boom
shall extend smoothly.
2. Depress the foot switch and pull down the main
boom telescoping switch, the main boom shall
retract smoothly.
Articulating boom luffing switch
