SKF TKBA 40
3. Instructions for use
3.1 Selecting V-guides
Four sizes of V-guides are supplied
with the TKBA 40 to fit pulley grooves
of most widths and types. Should you
need to exchange the V-guides for
the smaller or larger one, select and
attach the appropriate V-guides as
shown in figure 2.

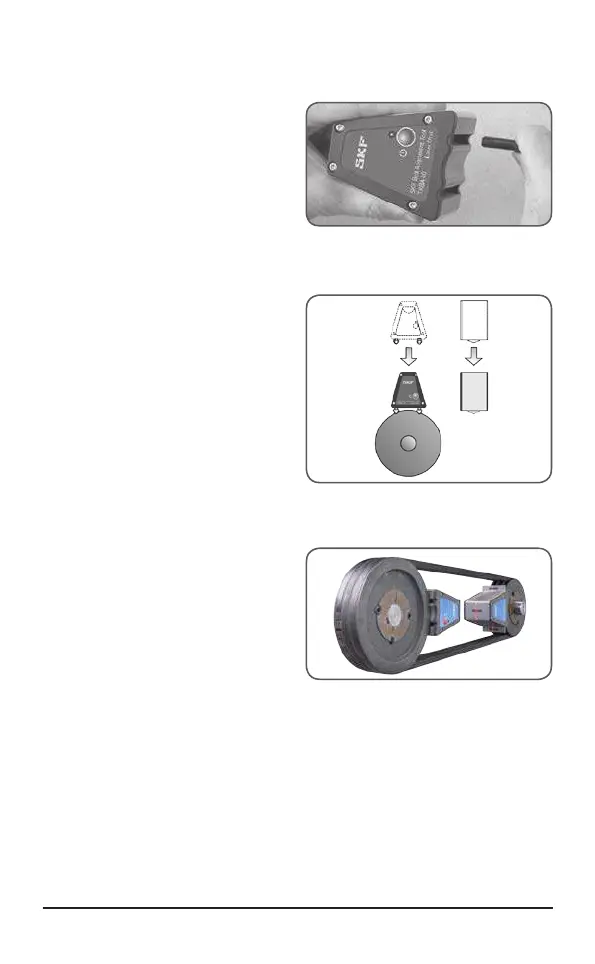

Fig 2 Fitting or removal of V-guides
3.2 Attaching laser units
The units are provided with strong
magnets and V-guides. Place the
V-guides of the first unit in the
groove of the first pulley and press
the unit firmly until the magnet
secures it to the pulley.
Fig 3 Mounting the unit
Place the second unit in the opposite
groove of the second pulley.
Position both units facing each other
as shown in figure 4.
Fig 4 Units on pulleys
3.3 Power on
Switch on the laser unit by pressing the ON/OFF button.
