SKF TKBA 40
3.4 Determining the type of misalignment
The laser line emitted from the laser unit will now appear on the receiver
unit. The pattern will vary depending on the type of misalignment, as shown
in figure 5, 6, 7 and 8.

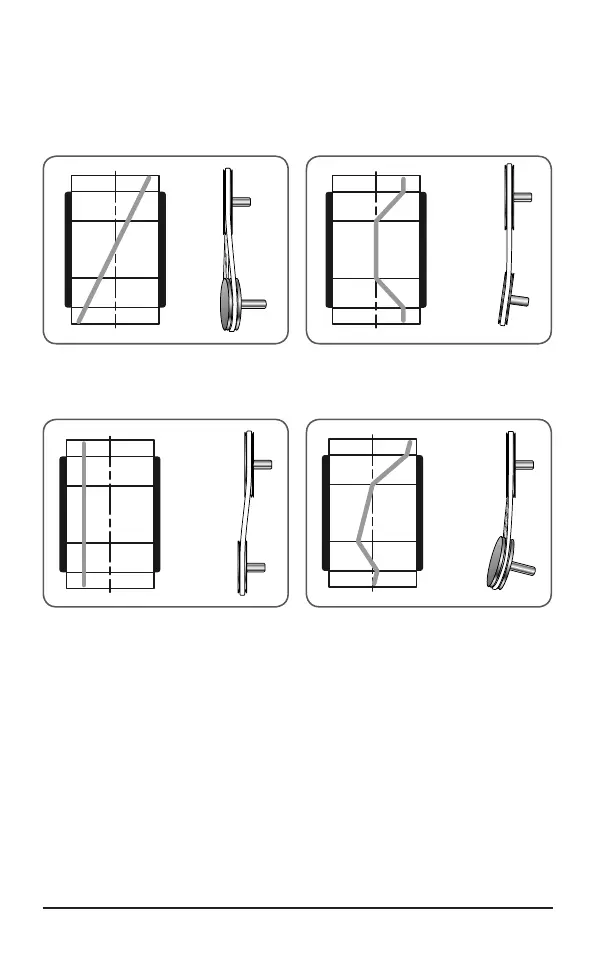

Fig 5 Display of vertical angle
misalignment
Fig 6 Display of horizontal angle
misalignment
Fig 7 Display of parallell misalignment Fig 8 Display of all three misalignments
combined
