Skyjack SJ-7027 - Powered Extension Platform Control Box Assembly

SECTION 6, Page 14
SJ-600 Series Engine Powered 112715
June 2001

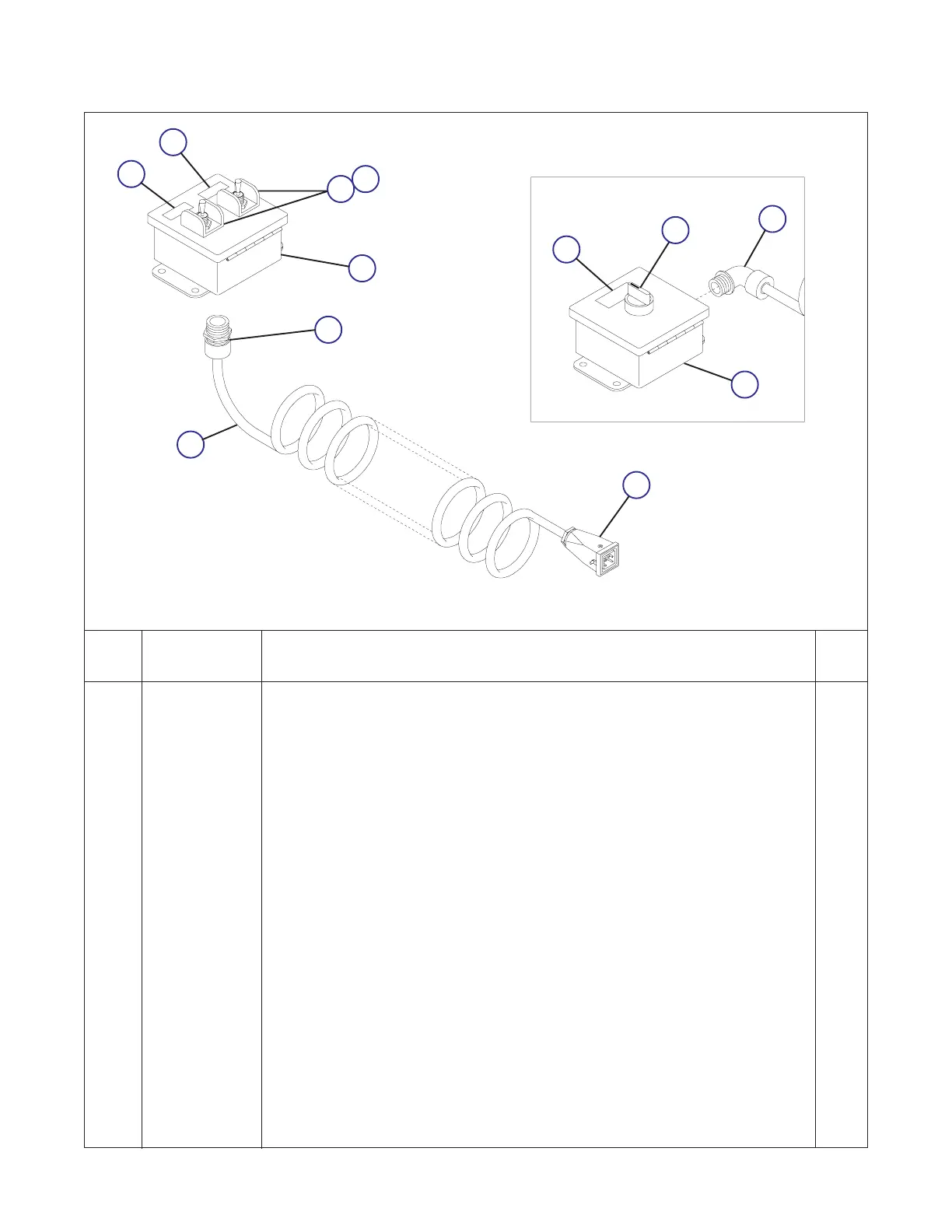

FIGURE 6-4. POWERED EXTENSION PLATFORM CONTROL BOX ASSEMBLY
A 115592 CONTROL BOX ASSEMBLY, Powered extension platform -
(Later models with toggle switch controls)
B 115481 CONTROL BOX ASSEMBLY, Powered extension platform -
(Early models with rotary switch controls)
1 115539 • BOX, Control, A 1
2 103041 • STRAIN RELIEF, Straight 1/2", A 1
3 106401 • CORD, Coiled 18/3 AR
4 107712 • CONNECTOR ASSEMBLY, 5 pole male 1
(Replaces round connector by also ordering
(1) CONNECTOR, 107711)
5 108328 • LABEL, Platform extend/retract 1
6 102853 • SWITCH, Toggle, A 2
7 111181 • GUARD, Toggle switch, A 2
8 115594 • LABEL, Enable, A 1
9 103035 • STRAIN RELIEF, Elbow 90° 1/2", B 1
10 102976 • BOX, Control, B
11 (Ref.) • SWITCH ASSEMBLY, Platform extend/retract, B 1
102837 • • HEAD, Selector switch 1
103100 • • BASE, Contact 1
103141 • • BLOCK, N.O. contact 1
MA-SJII-31B
Index
No.
Skyjack
Part No.
Description
Units
per
Assy.
1
2
3
5
6
7
8
4
9
10
11
5
