Skyjack SJ-7027 - Basi Control;Electrical Panel Diagram (ANSI;SIA and CSA Machines with Serial Number 32098 and Above)

SJ-600 Series Engine Powered 112715 SECTION 3, Page 33
June 2001
V
W
Y
Z
B
C
D
EF
GH
A
X

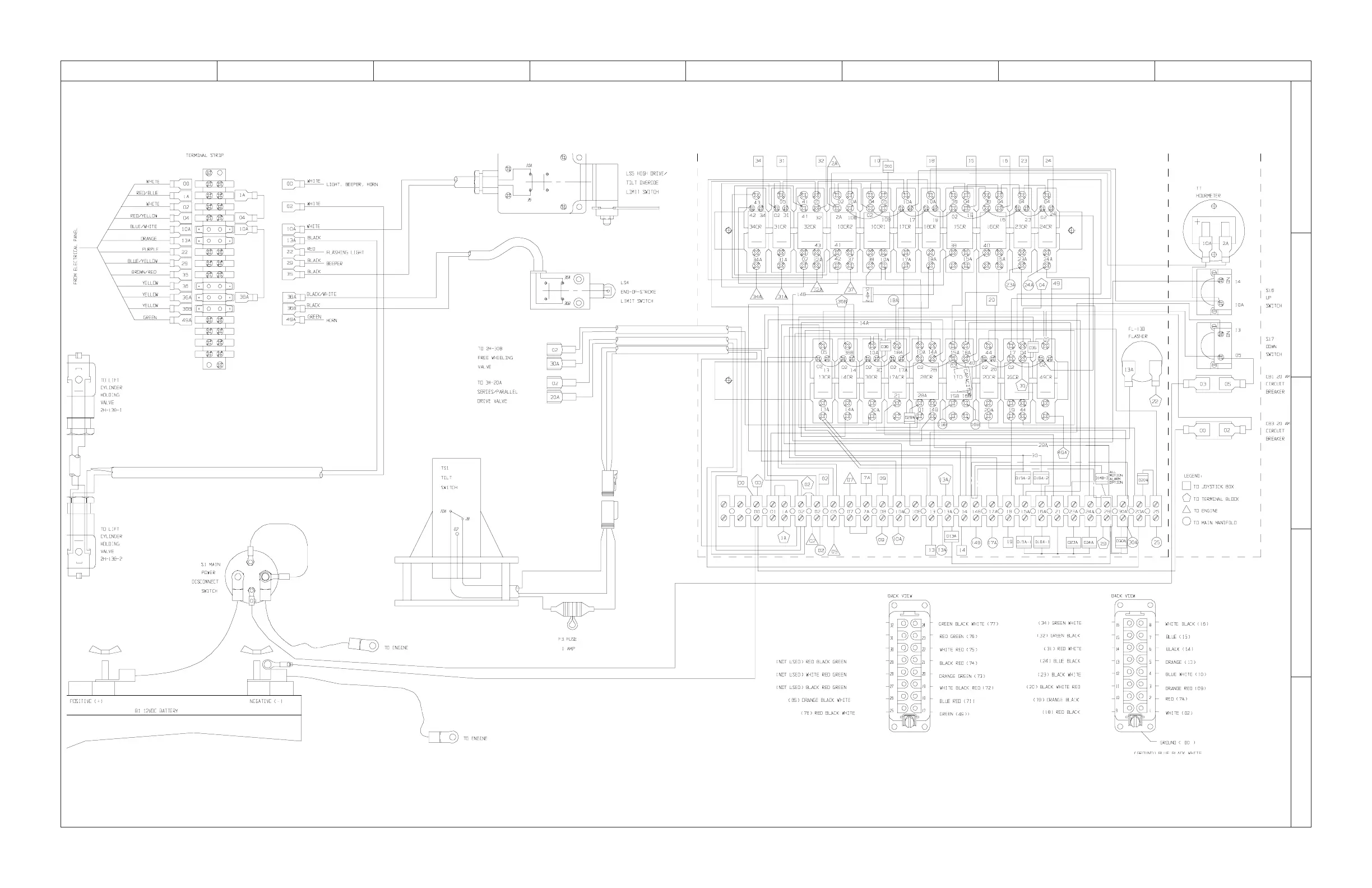

FIGURE 3.4-4. BASE CONTROL/ELECTRICAL PANEL DIAGRAM (ANSI/SIA and CSA Machines With Serial Number 32098 and Above)
LP-1050AC
Parts List
