Skyjack SJ-7027 - Base Control Box Option

SECTION 6, Page 124 SJ-600 Series Engine Powered 112715
June 2001
Index
No.
Skyjack
Part No.
Description
Units
per
Assy.

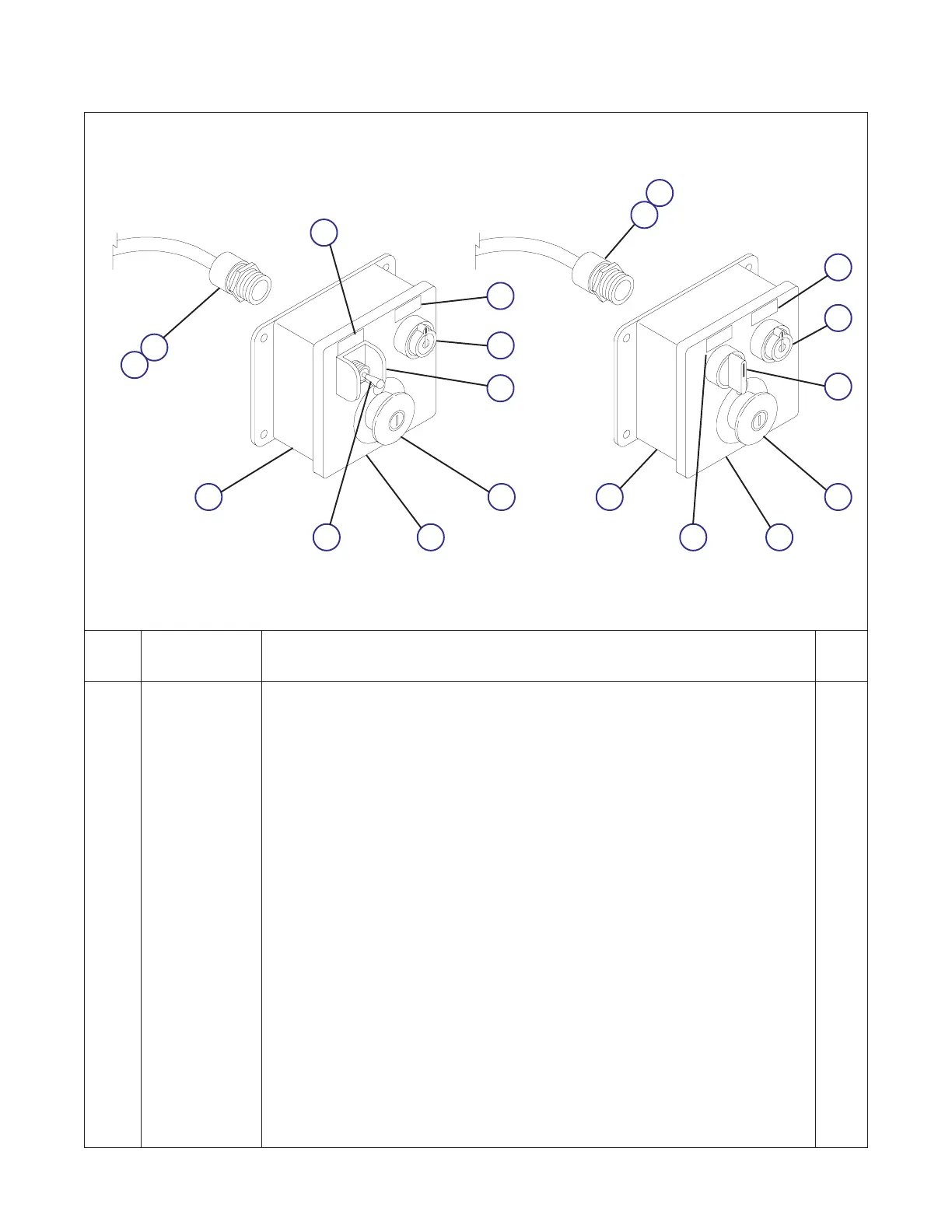

FIGURE 6-53. BASE CONTROL BOX OPTION
MA-SJII-32A
A (Ref.) BASE CONTROL BOX ASSEMBLY -
(Later models with toggle up/down switch)
B (Ref.) BASE CONTROL BOX ASSEMBLY -
(Early models with rotary up/down switch)
1 115538 • BOX, Base control, A 1
2 108328 LABEL, Platform up/down 1
3 102451 LABEL, Platform/base select 1
4 111814 LABEL, Emergency stop (Replaces 105351) 1
5 102853 • SWITCH, Toggle, A 1
6 111181 • GUARD, Toggle switch, A 1
7 (Ref.) SWITCH ASSEMBLY, Emergency stop 1
102769 • • HEAD, Stop switch 1
103100 • • BASE, Contact 1
103225 • • BLOCK, N.C. Contact 1
8 103041 • STRAIN RELIEF, Cord 1/2” 1
9 103260 CABLE, 18/5 x 144” lg. 1
10 (Ref.) SWITCH ASSEMBLY, Platform/base select 1
102754 • HEAD, Key selector switch 1
104466 • KEY, #455 AR
103100 • BASE, Contact 1
103141 • BLOCK, N.O. Contact 1
103225 • BLOCK, N.C. Contact 1
11 (Ref.) SWITCH ASSEMBLY, Platform up/off/down 1
102837 • HEAD, Selector switch 1
103100 • BASE, Contact 1
103141 • BLOCK, N.O. Contact 2
12 112963 BOX, Base control, B 1
