Skyjack SJ-7027 - Engine Control Panel - Kubota Diesel Engine

SECTION 6, Page 106 SJ-600 Series Engine Powered 112715
June 2001
Index
No.
Skyjack
Part No.
Description
Units
per
Assy.

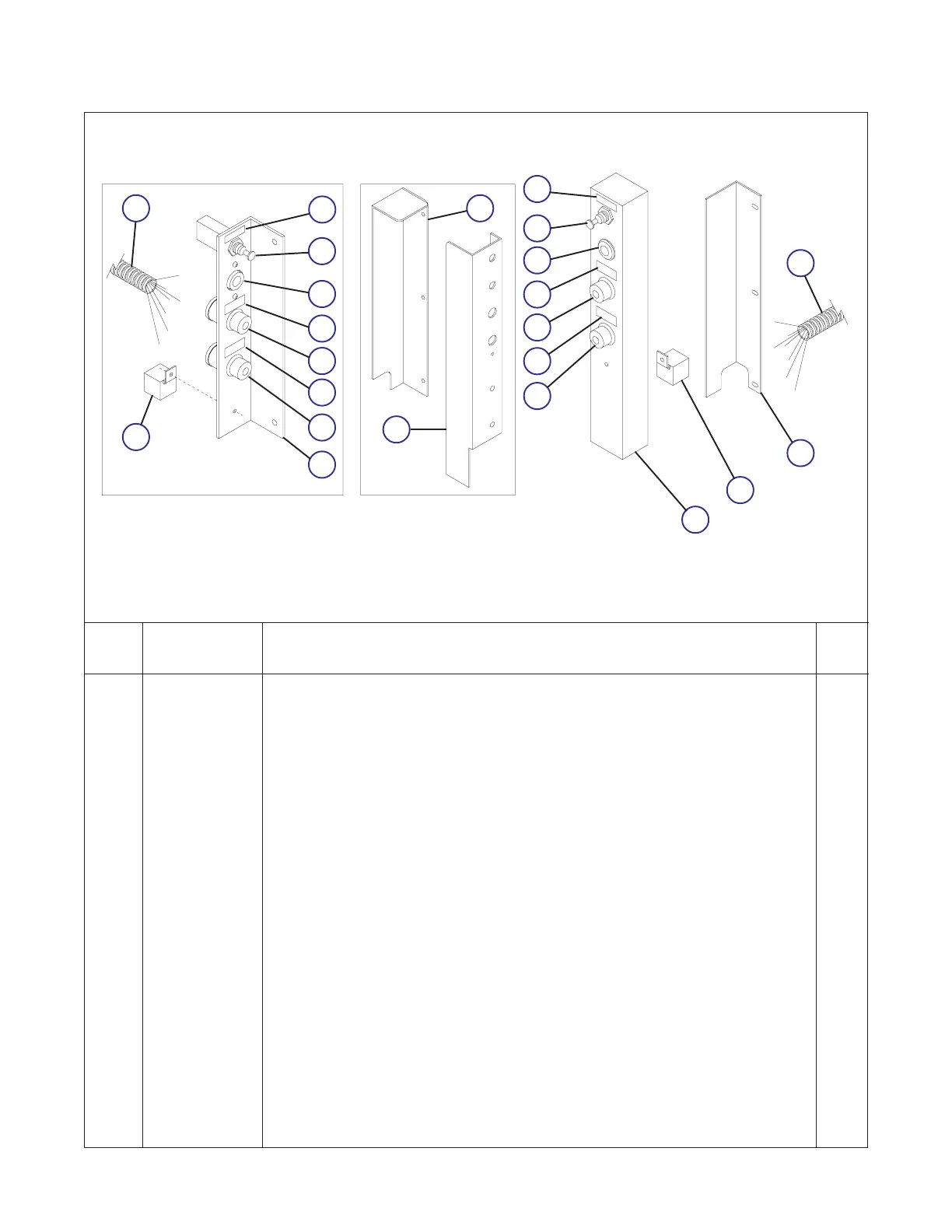

FIGURE 6-46. ENGINE CONTROL PANEL - Kubota Diesel Engine
MA-600-19A
A 400080 ENGINE ELECTRICAL HARNESS ASSEMBLY, Diesel (not shown) 1
102921 • • DIODE, 6 Amp 1
1 (Ref.) • HARNESS, Engine wiring 1
119134 • • KIT, 12 Pole receptacle connector (mates with #119135 plug) 1
2 102572 • SWITCH, Engine off/on 1
3 103731 • RELAY, 12 Volt 1
4 102692 • SWITCH, Push-button 2
5 114194 • PANEL, Engine control front 1
6 105983 LABEL, Off/on 1
7 102628 LABEL, Start 1
108334 LABEL, Start (International) 1
8 102448 LABEL, Glow plug 1
108330 LABEL, Glow plug (International) 1
9 KUBOTA • INDICATOR, Glow plug 1
10 KUBOTA • TIMER, Glow plug (not shown) 1
11 114846 COVER, Engine control panel rear 1
12 112926 COVER, Engine control panel rear (Later models) 1
13 112884 PANEL, Engine control front (Later models) 1
14 101994 PANEL, Engine control (Early models) 1
15 (Ref.) HARNESS, Engine wiring 1
102921 • DIODE, 6 Amp 1
102552 • CONNECTOR, 8 Pin male 1
102987 • PIN, Male 7
8
4
7
9
2
6
3
15
13
12
4
14
1
11
3
5
4
8
4
7
9
2
6
Early
Models
Later
Models
Current
Models
