SECTION 2, Page 2
SJ-600 Series Engine Powered
June 2001
Engine Control Panel (Dual Fuel)

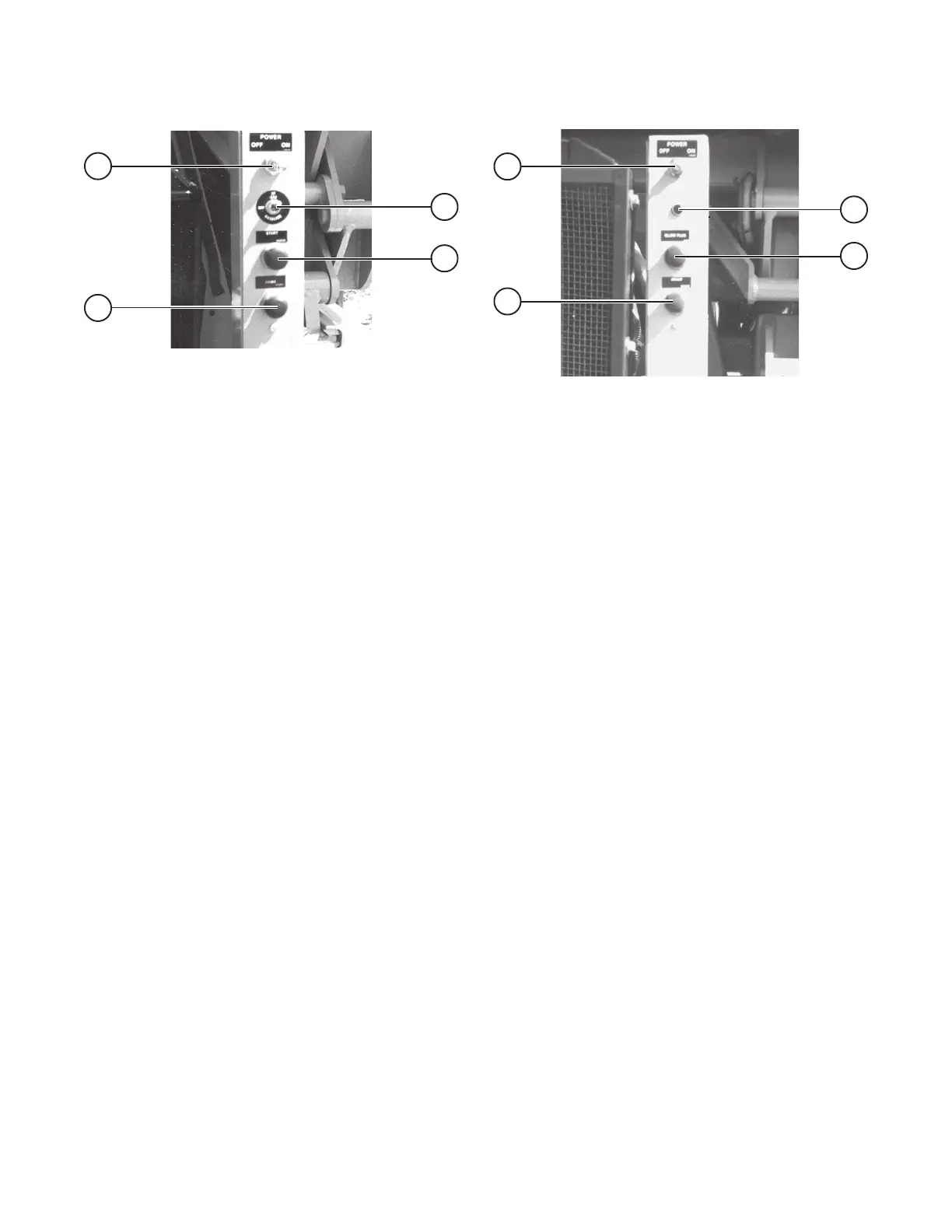

Figure 2-4A. Engine Control Panel -
Ford Gasoline Engine
(Shown with Dual Fuel)
Engine Control Panel - This control station is
attached to the Engine Roll-out at the front of the base.
It contains the following controls:
1. Engine Off/On Switch - This plunger-type switch,
when pulled out, energizes the engine circuit and the
operator’s control box. To stop engine, push plunger
in.
2. Fuel Select Switch (Machines with Dual Fuel) -
Used to switch from LP GAS to gasoline
3. Engine Start Push-Button - This push-button
switch energizes the engine starter motor.
4. Engine Choke Push-Button - This push-button
switch sets the choke for starting a cold gasoline/
propane engine.
Engine Control Panel (Diesel)
Figure 2-4B. Engine Control Panel -
Kubota Diesel Engine
Engine Control Panel - This control station is
attached to the Engine Roll-out at the front of the base.
It contains the following controls:
1. Engine Off/On Switch - This plunger-type switch,
when pulled out, energizes the engine circuit and the
operator’s control box. To stop engine, push plunger
in.
2. Engine Start Push-Button - This push-button
switch energizes the engine starter motor.
3. Engine Glow Plug Push-Button - This push-
button switch energizes the glow plug to aid in starting
a cold diesel engine.
4. Glow Plug Indicator Light - This red lamp
illuminates until the glow plugs have completed their
timed heating cycle. When the lamp goes out, the
engine is ready to be started.
3
4
1
2
3
4
1
2
