Skyjack SJ-7027 - Fuel Tank Assembly - Gasoline Engines

SECTION 6, Page 75
SJ-600 Series Engine Powered 112715
June 2001
Index
No.
Skyjack
Part No.
Description
Units
per
Assy.

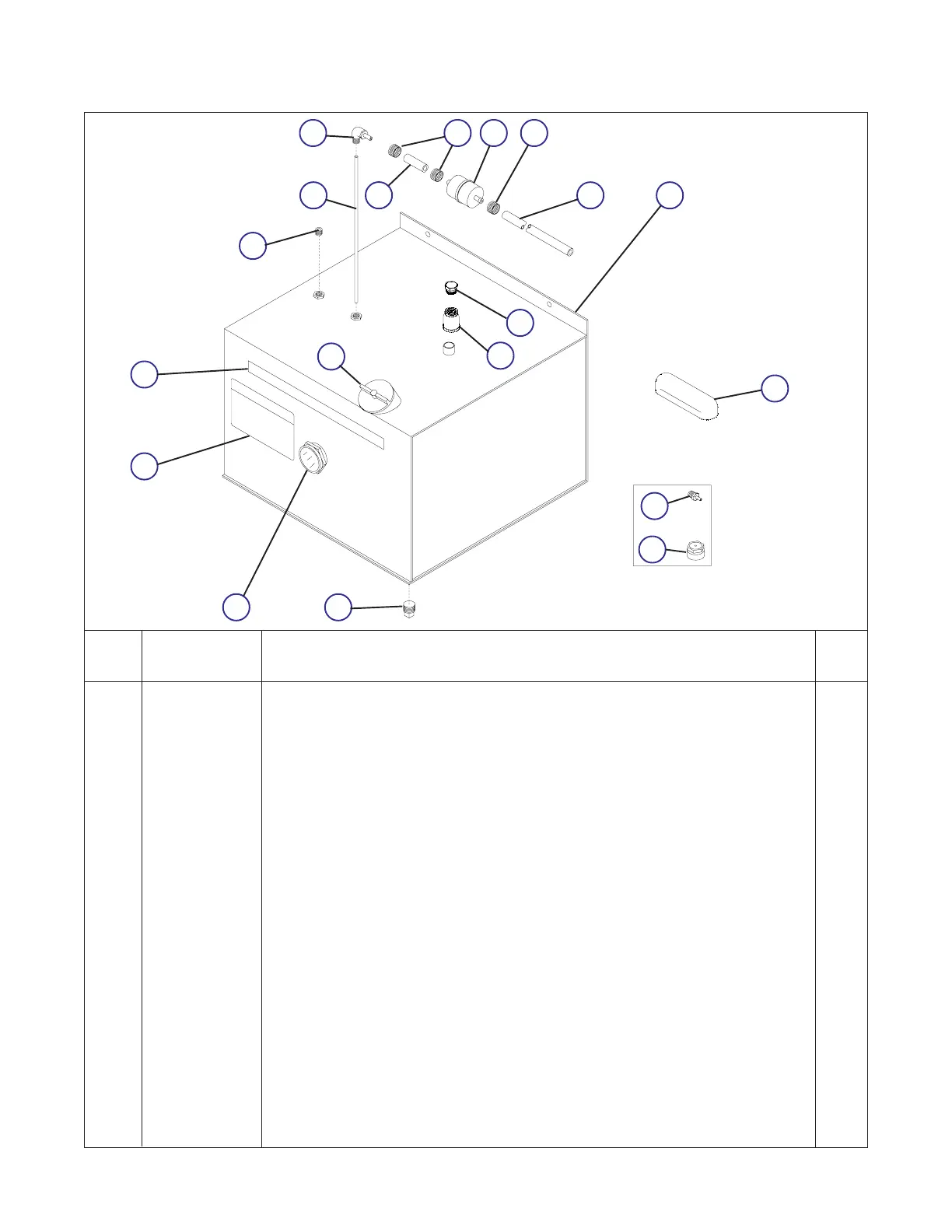

FIGURE 6-27. FUEL TANK ASSEMBLY - Gasoline Engines
MA-600-11B
111134 TANK ASSEMBLY, Fuel -
(Consists of items 1 and 2)
1 (Ref.) • WELDMENT, Fuel tank 1
2 113848 • CAP, Filler w/spring 1
3 113399 VENT, Breather (Later models up serial #. 31274) 1
114723 • SCREW, Soc-hd set 1/4-20 x 1/4” 1
4 101360 GAUGE, Fuel level 1
5 103339 PLUG, Drain 1
6 112588 TUBE, Fuel line 1
7 102907 FITTING, Elbow fuel line (Replaces 103164) 1
8 103321 CLAMP, Hose 3
9 102984 HOSE, Fuel tank to fuel filter 3” lg. 1
10 102764 FILTER, In-line fuel 1
11 102932 PLUG, Hollow hex 1/4P 1
12 102984 HOSE, Fuel filter to fuel pump 158” lg. 1
13 102960 LABEL, Use gasoline only 1
14 106694 LABEL, Danger, explosion hazard 1
15 $ FITTING, Hose barb (Order 102907) 1
16 101359 VENT, Fuel tank breather (Early models) 1
17 355028 VENT, Breather (serial # 31275 and above) 1
18 355029 COUPLING, Red. (serial # 31275 and above) 1
4
13
7
11
5
14
6 1
16
3
15
10
12
88
9
2
17
18
