Skyjack SJ-7027 - Steer Cylinder Assembly

SECTION 6, Page 54
SJ-600 Series Engine Powered 112715
June 2001
14
15
13
12
13
6
7
8
9
10
11
13
1
135
432
12

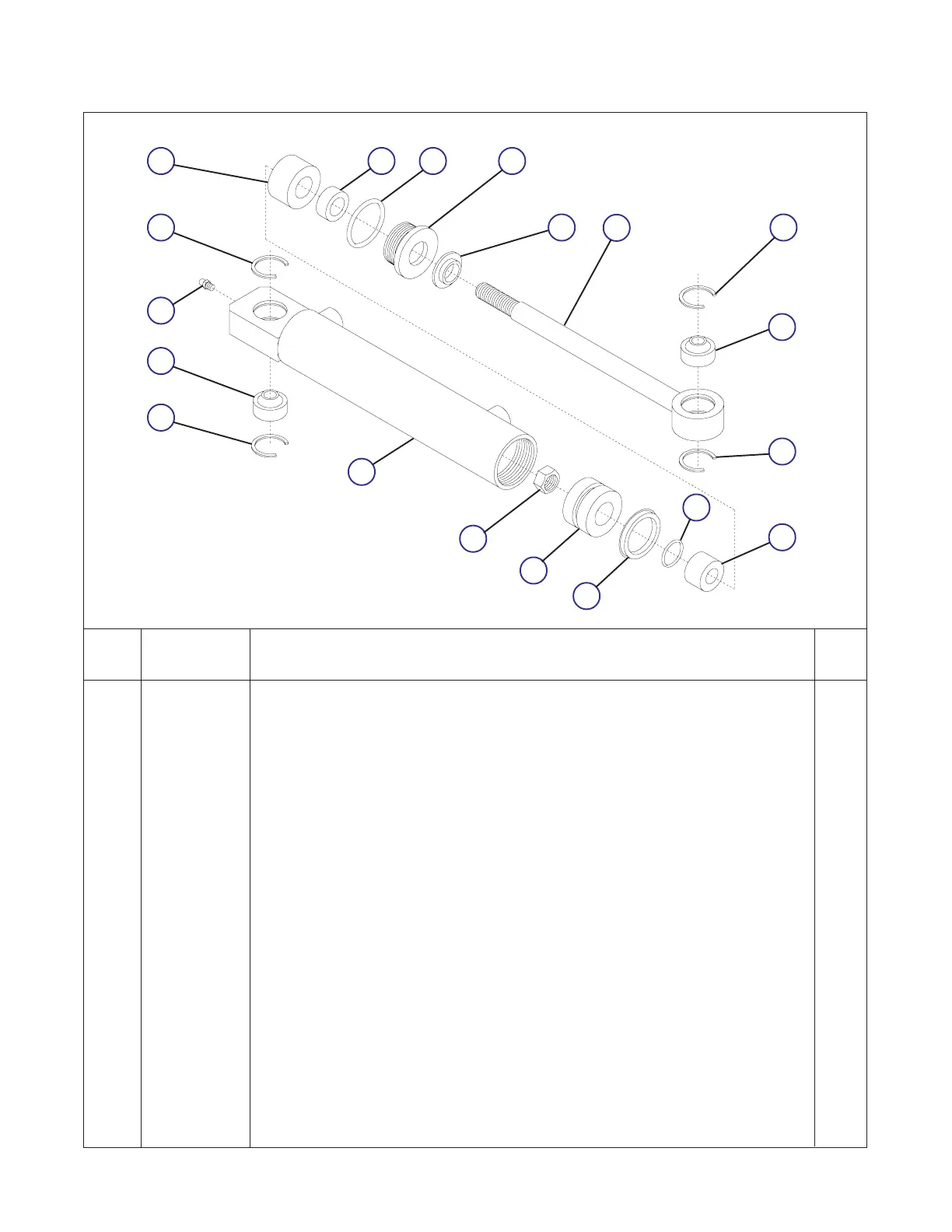

FIGURE 6-19A. STEER CYLINDER ASSEMBLY
(Machines With Serial # 32328 and Below)
A 113356 CYLINDER ASSEMBLY, Steer (2WD/4WD) -
1 113347 • ROD, Steering 1
*2 113350 • SEAL, Steering rod 1
*3 107934 • O-RING, Gland 1
4 112496 • GLAND 1
*5 113349 • WIPER, Rod 1
6 104111 • SPACER, Piston 1
*7 103829 • O-RING, Piston 1
*8 107935 • SEAL, Piston 1
9 112497 • PISTON, Cylinder 1
10 103830 • NUT, Lock 5/8-11 grade C 1
11 112494 • WELDMENT, Cylinder barrel 1
12 102025 • BEARING, Spherical 2
13 104114 • RING, Retaining 2
14 113355 • SPACER, Stroke limit 1
15 103513 • FITTING, Grease 1
* 113443 KIT, Seal repair AR
MA-600-07A
Index
No.
Skyjack
Part No.
Description
Units
per
Assy.
