Skyjack SJ-7027 - Symbols & Charts

SECTION 3, Page 3
SJ-600 Series Engine Powered 112715
June 2001
WIRE CROSSING HOURMETER
LEVEL SENSOR
KEY SWITCH
WIRES JOINED LIGHT
SINGLE POLE
SINGLE THROWN
RELAY
FOOT SWITCH
BATTERY
HYDRAULIC VALVE
COIL
SINGLE POLE
DOUBLE THROW
RELAY
TOGGLE SWITCH
GROUND
PROPORTIONAL
HYDRAULIC VALVE
COIL
DOUBLE POLE
SINGLE THROW
RELAY
PUSH BUTTON
FUSE
ELECTRIC MOTOR
DOUBLE POLE
DOUBLE THROW
RELAY
ROTARY SWITCH
CIRCUIT BREAKER
HORN
TRIPLE POLE
DOUBLE THROW
RELAY
LIMIT SWITCH
BATTERY CHARGE
INDICATOR
EMERGENCY
STOP BUTTON
DIODE
CAM OPERATED
LIMIT SWITCH
CAPACITOR RESISTOR
TRANSISTOR
TILT SWITCH
POTENTIOMETER

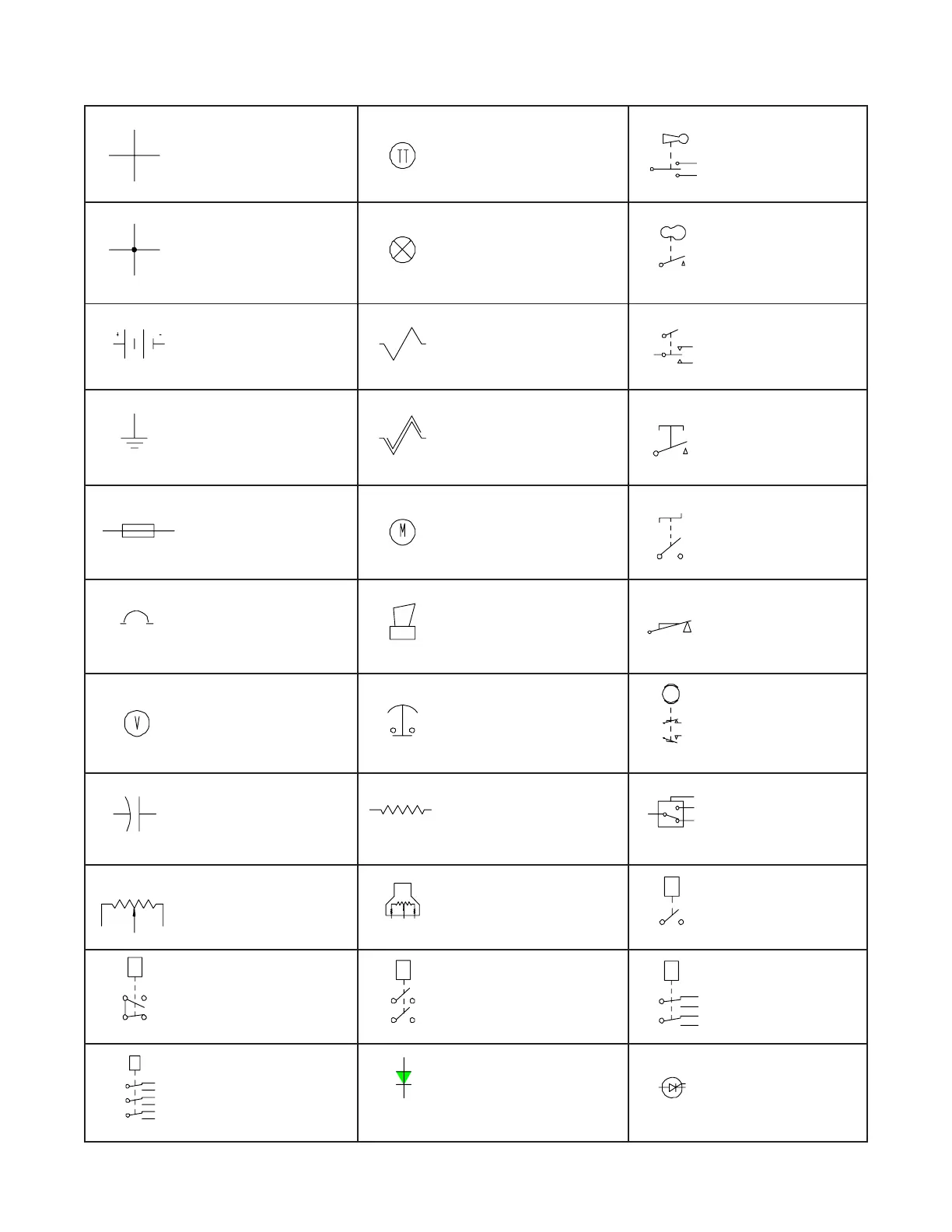

FIGURE 3.1-2. ELECTRICAL SYMBOL CHART
