Skyjack SJ-7027 - Powered Extension Platform Electrical Panel

SECTION 6, Page 16
SJ-600 Series Engine Powered 112715
June 2001
1 103012 BLOCK, Terminal 1
103955 • BOLT, Machine #6-32 x 3/4" lg. 2
103985 • NUT, Machine #6-32 2
2 117325 BREAKER, 15 Amp circuit 1
3 111611 PANEL, Powered platform electrical 1
4 (Ref.) CABLE ASSEMBLY, Valve manifold 1
104345 • CONNECTOR, Gray 1
104409 • CONNECTOR, Black 1
103257 • CABLE, 18/3 24”
5 103257 CABLE, 18/3 Powered extension platform control box 180”
6 102921 DIODE, 6 Amp 2
7 300207 CONNECTOR, Strain relief 3
8 (Ref.) CABLE ASSEMBLY, Electrical panel to motor contactor 1
103257 • CABLE, 18/3 x 24" lg. 1
9 107711 CONNECTOR ASSEMBLY, 5 Pin Female 1
103568 • HOUSING 1
103570 • INSERT, Female 5 Pin 1
10 300207 FITTING, Strain relief 3
MA-600-04
Index
No.
Skyjack
Part No.
Description
Units
per
Assy.

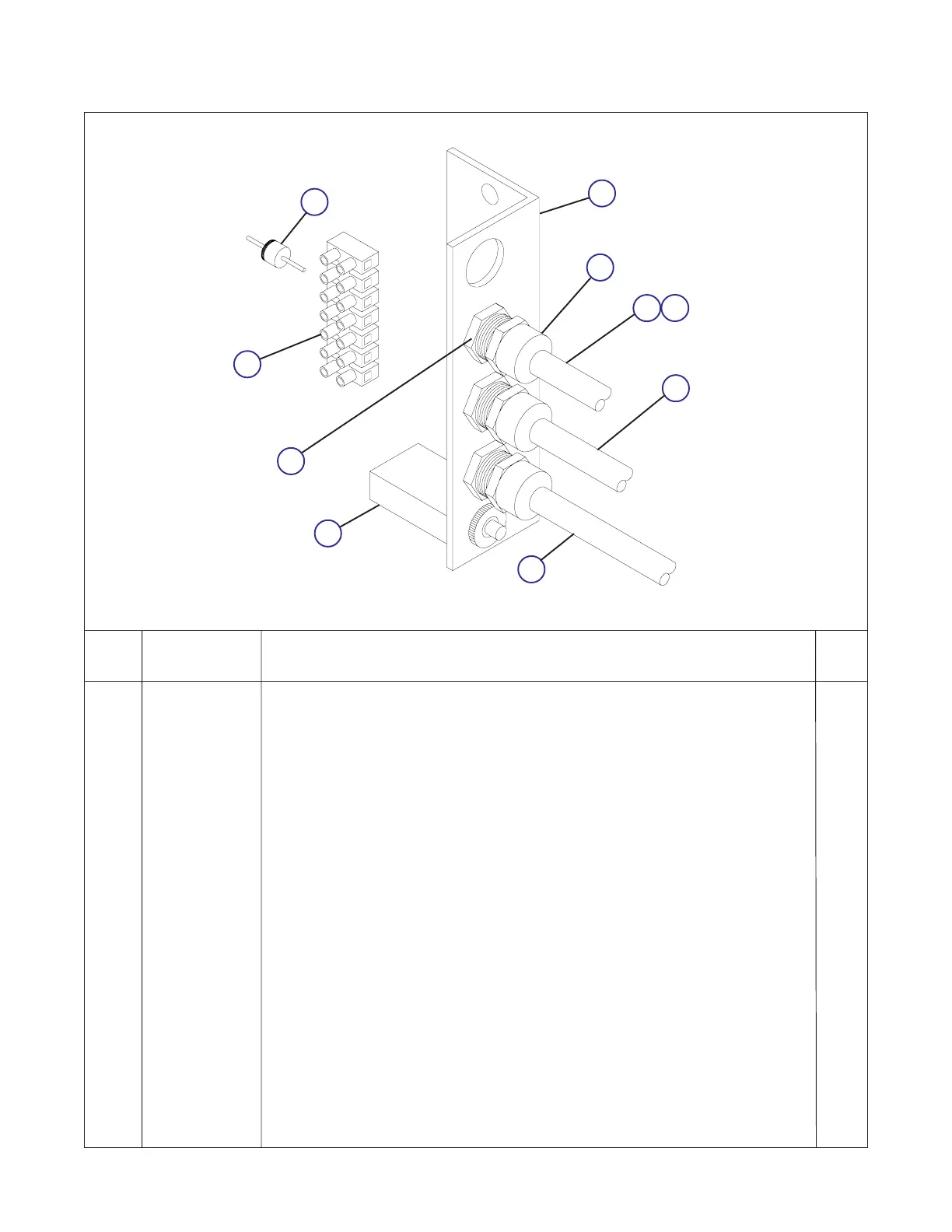

FIGURE 6-6. POWERED EXTENSION PLATFORM ELECTRICAL PANEL
1
2
3
4
5
6
7
8
9
10
