SECTION 5, Page 9
SJ-600 Series Engine Powered 112715
June 2001

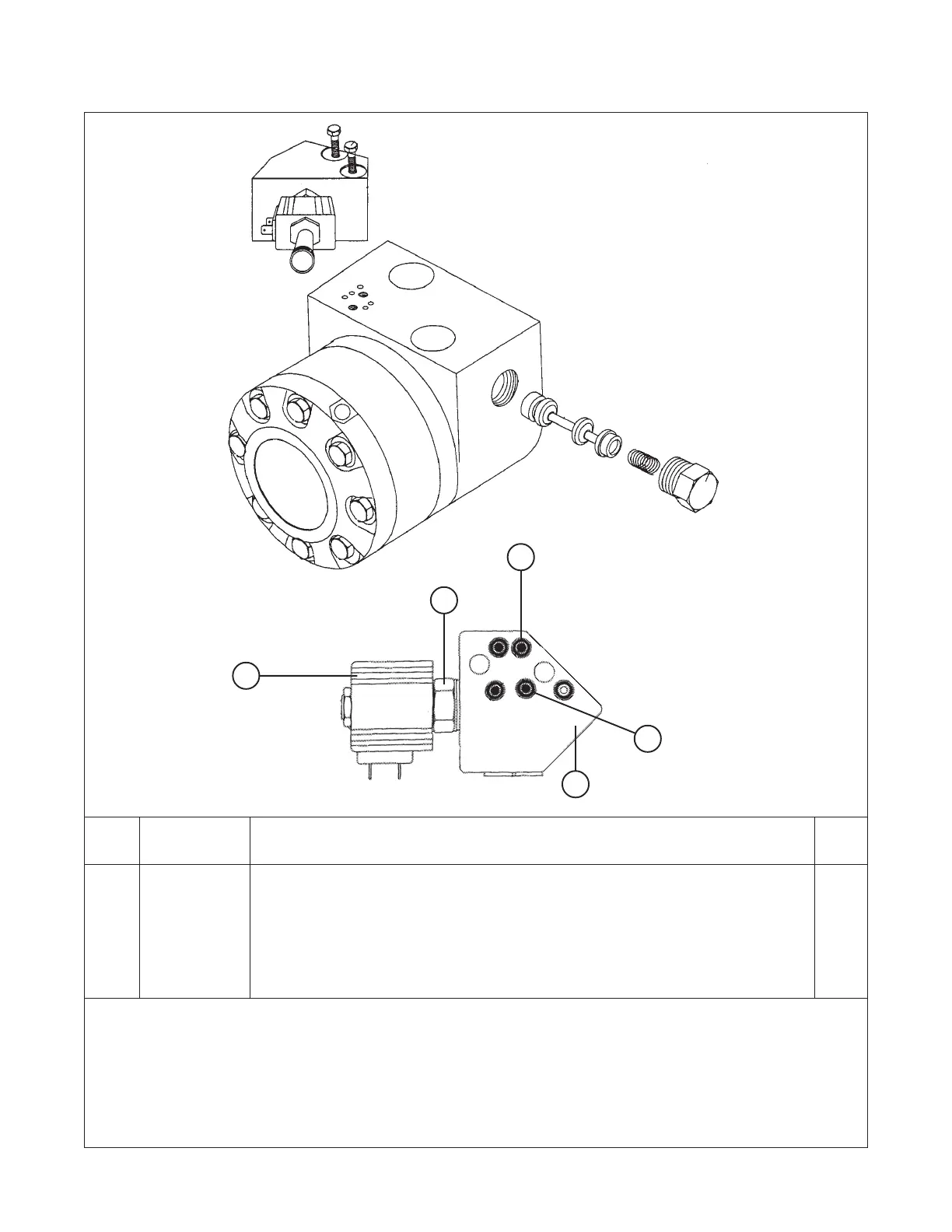

2 SPEED MOTOR ASSEMBLY
2
2
Part Usage:
The 3 smaller holes have O-rings and no Check Balls
The 2 bigger holes get Check Balls
In the Motor piece there are 2 holes that get 1 check ball each (4 Check Balls total)
TOP OF BLOCK
3
1
A 109311 MOTOR, 2 Speed drive 1
1 103623 • VALVE, Series/parallel 1
2 115340 • CHECK BALL 4
3 103613 • COIL, Series/parallel valve 1
4 355113 • MANIFOLD, Motor 1
115338 • SEAL KIT AR
