Skyjack SJ-7027 User Manual

SECTION 6, Page 87
SJ-600 Series Engine Powered 112715
June 2001
Index
No.
Skyjack
Part No.
Description
Units
per
Assy.

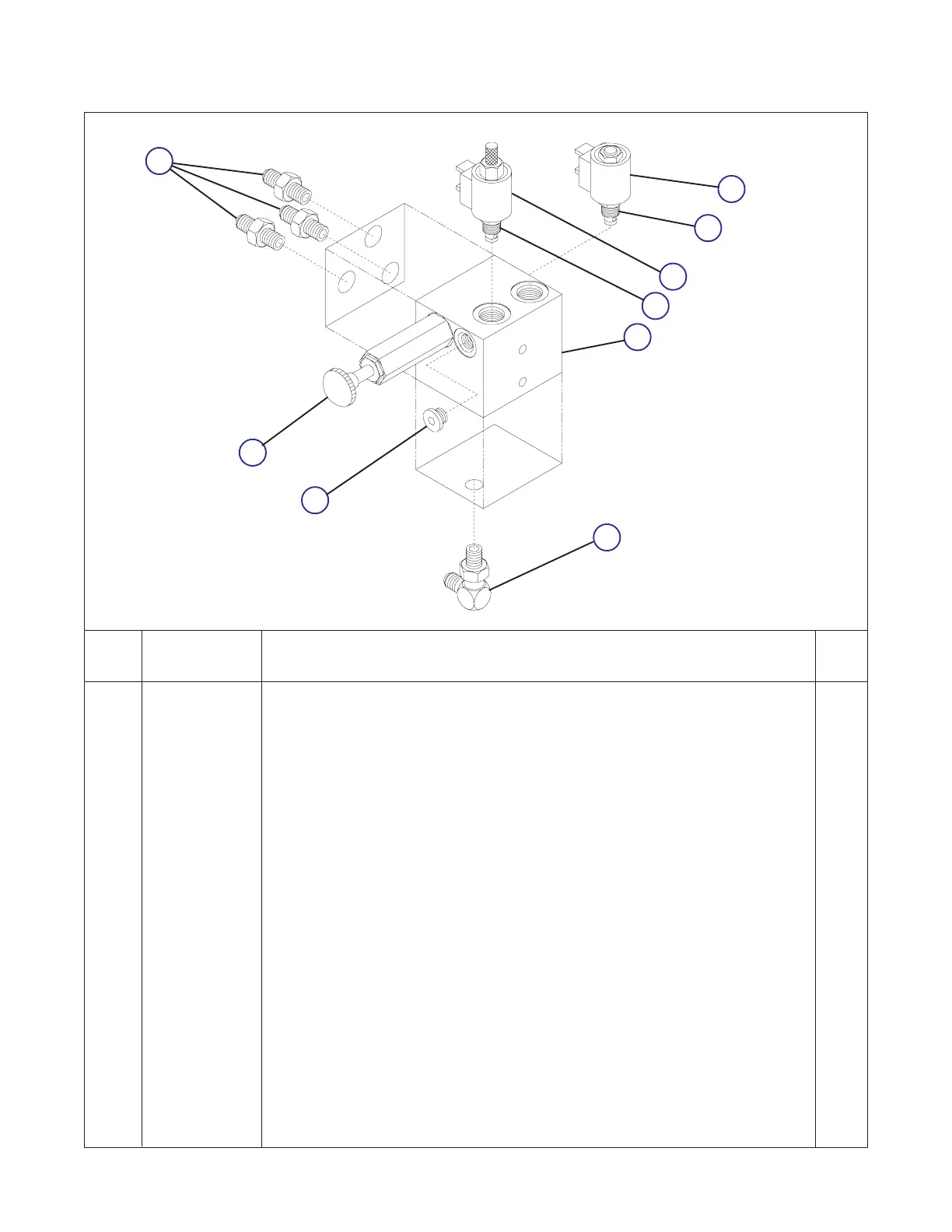

FIGURE 6-35. QUICK BRAKE MANIFOLD ASSEMBLY
(Machines With Serial # 30166 & Below)
MA-800-23
(Ref.) MANIFOLD ASSEMBLY, Quick brake -
(Order components)
1 110643 • BLOCK, Brake manifold 1
2 104437 • PLUG, Hex-soc #6orb 1
3 110652 • PUMP, Hand 1
4 102659 • FITTING, Connector #8orb-#8 3
5 104132 • VALVE, N.C. (brake lock) 1
6 110655 • VALVE W/MANUAL OVERRIDE, N.O. 1
(quick brake)
7 103613 • COIL, 12 Volt valve 2
8 103073 • FITTING, Elbow 90° #6orb-#6 1
2
4
3
8
7
5
7
6
1
