NOTE: To determine the correct electrical schematic or
panel diagram that resembles your machine, refer to the
“Table Of Contents” found at the beginning of this section.
SJ-600 Series Engine Powered 112715
FIGURE 3.5-3.
50024AA

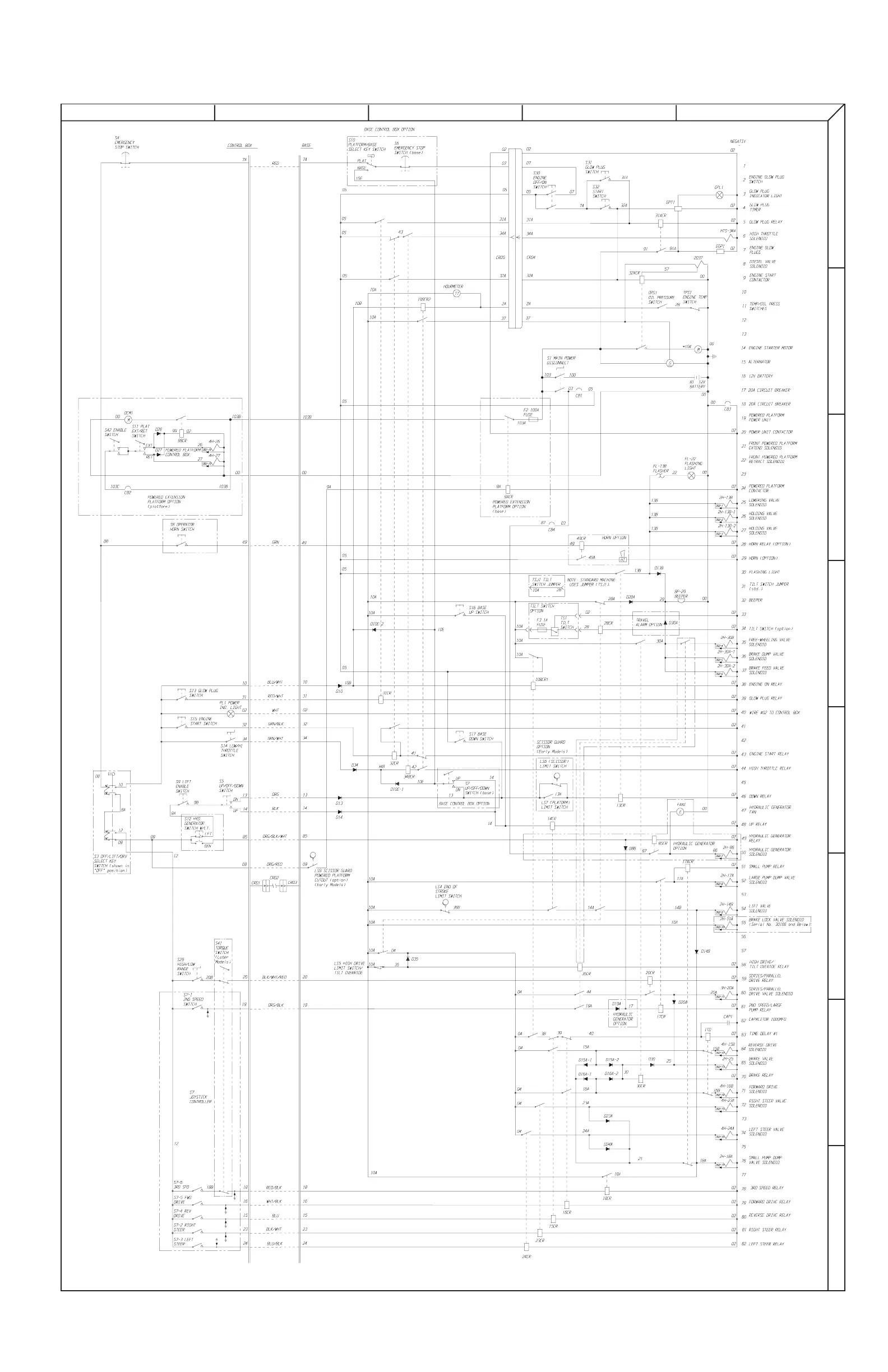

FIGURE 3.5-3. ELECTRICAL SCHEMATIC (Machines Equipped With Kubota Diesel Engine and Shown With CE Options)
To Next Page
