181
SJ30AJE, SJ30ARJE 196274AF
Base Section 5 – Procedures
8. Note: for some parameters (for example the ones in the Special Adjustment menus), it is necessary to have
a key re-cycle in order to save them in the controller memory. This involves the loss of connection to the
node, so a new connection to the node may be required.

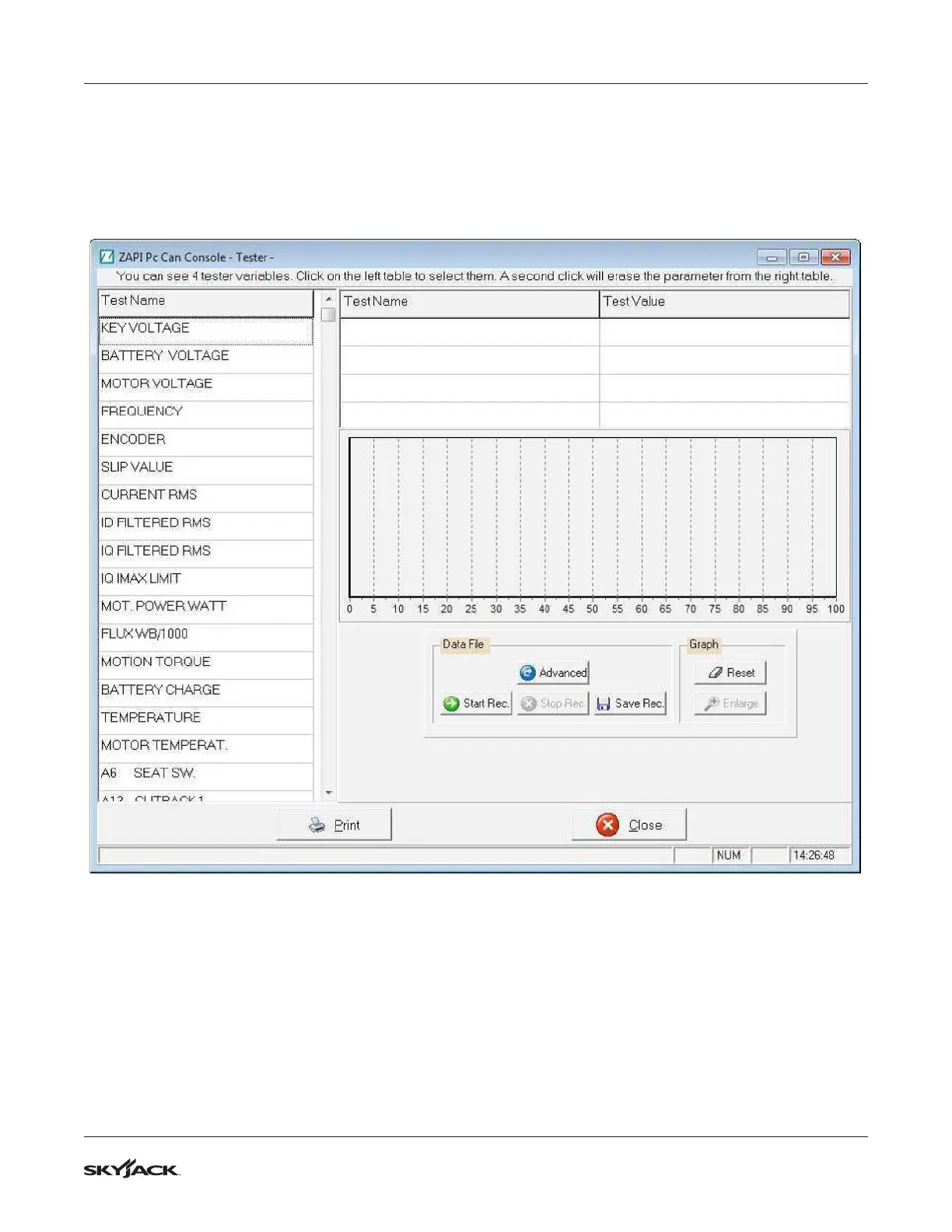

9. In the Tester menu, is is possible to have some measurements in real time of the digital input and output
stage (Active/Off), of analog input voltage valve, or the values of some variables used for the motor or
hydraulic control.
10. You can see up to four measured variables at the same time. When you select the desired variable, you will
be able to see its value in real time in the Test Value column, and also in the graphic chart below it.
