SJ82 T, SJ86 T 213205AAA
11
Primary assemblies Section 1 – About this Mobile Elevating Work Platform (MEWP)

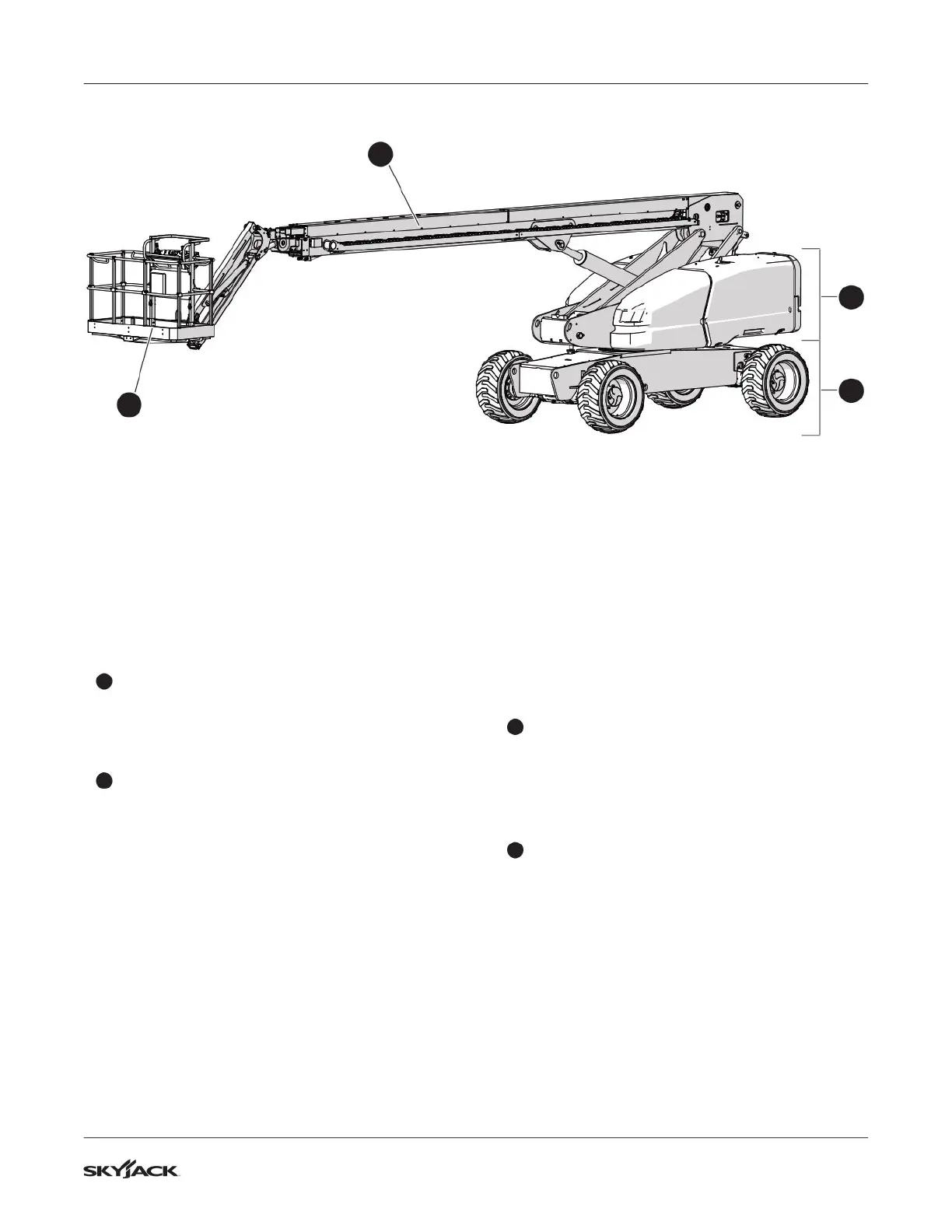

1.2 Primary assemblies
The MEWP has these primary assemblies.
1. Base
2. Turret
3. Boom
4. Platform.
1
Base: The base has these parts:
▪
A chassis
▪
A steerable front axle
▪
A rigid rear axle.
2
Turret: The turret turns 360 degrees continuously.
It has these parts.
▪
A compartment on the right side of the turret
which has these parts.
▪
Engine
▪
Hydraulic pumps
▪
Battery
▪
Swing drive.
▪
A compartment on the left side of the turret which
has these parts.
▪
Base control console
▪
Emergency-lowering system at the base
control console.
▪
Hydraulic manifolds
▪
Function valves
▪
Hydraulic tank
▪
Fuel tank.
3
Boom: The boom assembly has these parts.
▪
A main boom
▪
A mid boom
▪
A y boom
▪
A jib boom
4
Platform: The platform has these parts.
▪
Slip-resistant deck surface.
▪
Hinged tubular guardrails, with mid-rails, and
toe-boards.
▪
Tri-entry drop bars or an optional swing gate
▪
AC power socket
▪
Platform control console.
2
1
4
3
