Skyjack SJ82 T User Manual

213205AAA SJ82 T, SJ86 T
24
Section 3 – Familiarization Control functions

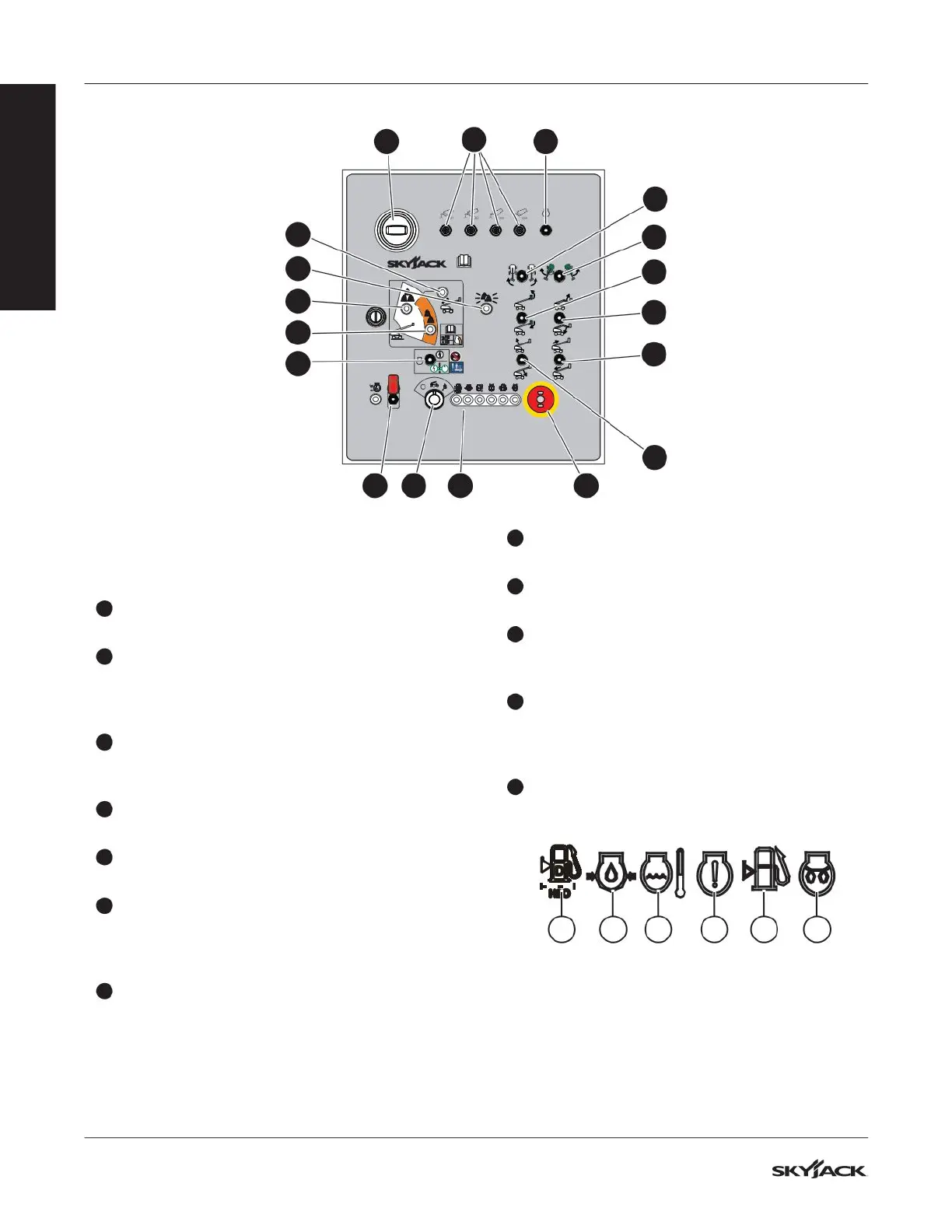

3.3-3 Base control console
Refer to Section 3.1 for the location of the base control
console.
1
Hourmeter: This display shows the hours of
operation.
2
Circuit breaker: If a power overload or positive
circuit grounding occurs, the circuit breaker
comes out. Push the circuit breaker back into
the initial position to reset the power.
3
Engine diagnosis: When held in either direction,
this switch enables an error blink code for the
engine control unit (ECU).
4
Platform rotation: This switch controls the left or
right rotation of the platform.
5
Turret rotation: This switch controls the left or
right rotation of the turret.
6
Platform-leveling override: This switch
overrides the automatic platform-leveling function
and controls the tilt up or tilt down function of the
platform.
7
7
Jib up/down (optional equipment): This switch
controls the up or down movement of the jib.
7
8
Boom extend/retract: This switch controls the
extension or retraction of the boom.
7
9
Main boom raise/lower: This switch controls the
raise or lower function of the main boom.
10
Emergency-stop: This button disconnects power
to the control circuit and stops the engine. Pull to
connect the power again.
7
11
Positive air shut-off (optional equipment): This
switch stops the air supply to the engine. This is
useful if the engine does not immediately stop
when the power is off.
7
12
Status indicator pilot lights: These lights show
the operation condition and errors in the control
or engine functions.
A B C D E F
FAMILIARIZATION
TM
1
2
3
4
5
6
7
8
9
1011 1213
14
15
16
17
18
